New Plugin for Telycam PTZ Cameras for Popular Control Platform

Streamline Corporate AV by Integrating Telycam with Popular Control Platform. Unlock the full potential of your Telycam Explore, Explore SE, Vision+, and Drive+ series cameras with the newly developed popular control platform plugin.

Designed specifically for corporate environments, this powerful plugin allows you to easily integrate and control your Telycam cameras through the popular control platform, streamlining video production and conferencing with unmatched precision and ease.

Key Features of the Telycam Popular Control Platform Plugin:

1. Comprehensive Camera Control:

Utilizes VISCA over IP for full PTZ control, allowing adjustments to pan, tilt, zoom, and focus with speed settings.

2. Auto-Tracking Customisation:

Enable or disable auto-tracking directly from the control interface, allowing you to adjust tracking target scaling, position, switching, pan and tilt limits, and board area, including tilt lock and scaling ratio lock.

3. Custom Preset Management:

Access up to 64 presets quickly and navigate easily through your recently used options.

4. Picture Settings:

Quick access to picture settings, including white balance, exposure, and Genlock.

5. Video and Audio Control:

The ‘Video Encode’ section provides settings for encoding mode, resolution, bit rate, etc. The ‘Audio’ section includes options for enabling/disabling audio, mic/line selection, phantom power, and volume adjustments.

Feel free to email or call us to purchase this product

Here’s a Mic/Line Dante Audio Interface That Goes Right Where You Need It

Now Shipping

AXI 22 AT D Plus

Available now, the Extron AXI 22 AT D Plus, is a single-gang decorator-style Dante® audio interface for integrating two mic/line sources onto a Dante-enabled audio system. It features two XLR audio inputs and switchable 48 volt phantom power for connecting and powering condenser microphones, plus gain control via the network for each input. The AXI 22 AT D Plus also features two line outputs for routing any two Dante channels from the network to the analog input of a destination device, or connecting into an optional secondary wallplate with two XLR outputs. The AXI 22 AT D Plus interfaces with any Dante-equipped audio processor, such as an Extron DMP 128 Plus AT, over a standard local area network, and can be powered through PoE. This allows a single network cable connection for bidirectional audio, control, and power from a central equipment rack.

The AXI 22 AT D Plus joins the popular AXI Series Dante Audio Interfaces from Extron, which include the AXI 22 AT, AXI 44 AT, and AXI 02 AT.

Key Features

Two mic/line inputs on XLR connectors insert audio onto a Dante network
Two line outputs on a rear panel captive screw connector extract audio from a Dante network
Dante audio networking provides a wide range of expansion capabilities
Controlled with DSP Configuration Software or via SIS from a DMP Plus Series processor on the Dante network or a control processor
Studio grade 24-bit analog-to-digital and digital-to-analog converters
selectable up to 96 kHz
Includes black and white faceplates
Compatible with Extron WPD 100 Series wallplates

Watch the Product Introduction Video

The AXI 22 T D Plus is now shipping.

AXI 22 AT D Plus
MODEL	VERSION DESCRIPTION	PART #
AXI 22 AT D Plus	2×2 Dante Audio Interface, Decorator Style	60-1947-01
AXI 22 AT D PLUS & WPD 102 XLRM	AXI 22 AT D Plus & WPD 102 XLRM Kit – Black	60-1942-22
AXI 22 AT D PLUS & WPD 102 XLRM	AXI 22 AT D Plus & WPD 102 XLRM Kit – White	60-1942-23

Feel free to email or call us to purchase this Product.

Arrakis H-15 Industry’s first software-controllable 15 Channel analog Broadcast console

The Arrakis H-15 analog Broadcast Console seamlessly integrates the reliability and user-friendly operation of analog technology with the advanced flexibility and power of digital systems, offering an optimal solution for professional radio studios. Arrakis H-15 hybrid console delivers exceptional audio quality, ensuring a smooth workflow for all broadcasting needs. With its unique software control capabilities, the Arrakis H-15 stands as the industry’s first analog console to feature remote management, enabling enhanced control and versatility for modern broadcasters while maintaining the robust performance of analog audio equipment.

Main Features:

HSeries Controller – The H-Series Controller software is included as a standard feature with the H-15 studio console mixer, empowering users to control the console remotely from anywhere in the world. With this software, you can easily turn channels on or off, monitor input levels, and utilize user presets to swiftly switch between different profiles, ensuring a seamless and efficient audio management experience.
Bluetooth Enabled – Bluetooth comes standard with the H15 console, providing you with the convenience of effortlessly connecting any Bluetooth audio device for seamless audio playback. With this feature, you can easily connect your smartphone to put callers on-air or stream recordings with ease, making your broadcasting experience even more versatile and user-friendly.
Reliable – The H15 is meticulously designed for reliability, offering long-lasting performance and easy maintenance with socketed ICs. Its switches and faders are engineered to endure multi-million operations, ensuring flawless functionality in critical environments. Skilled technicians can breeze through maintenance thanks to accessible components, while the user-friendly interface allows for easy operation by anyone.
RF Resistant – The H15 features both balanced and unbalanced inputs and outputs, making it highly effective at resisting RF interference for a clean broadcast. The balanced inputs utilize RJ45 connectors.

Specifications:

Feel free to email or call us to purchase this product.

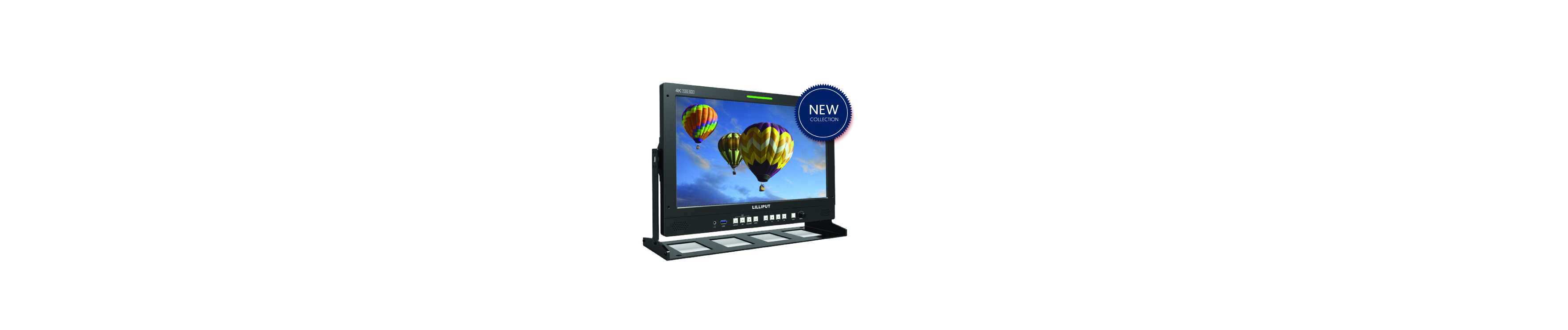

Broadcast Production Studio Monitor

Lilliput Broadcast Production Q-Series Studio Monitors

The Lilliput 15.6″ 12G-SDI/HDMI Broadcast Studio Monitor is a 15.6″ native UHD 4K monitor with a V-mount battery plate, useful for both studio and field situations. Supporting up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160), the monitor features one HDMI 2.0 input and four SDI inputs (two 12G, two 3G), allowing for single, dual, and quad-link SDI input. The monitor also features loop-through HDMI and SDI outputs to pass the signal downstream. For critical color work, the monitor supports the PRO/LTE version of LightSpace CMS (not included).

Input video signals are automatically scaled to fit the entire 3840 x 2160 screen. Audio embedded in the HDMI and SDI signals play through the monitor’s speakers, and a 3.5mm headphone jack allows you to monitor without outside noise. The monitor also supports adjustable HDR color spaces, including HLG, and you can select from 17 built-in 3D-LUTs or import six of your own. In the studio, the included power supply allows you to power the monitor from a mains outlet via the 4-pin XLR port, or you can power it from a V-mount battery using the included battery plate. The monitor comes with a mounting bracket for desktop use and a VESA mounting plate for mounting in the field.

Monitoring Tools

Peaking
Check field
Image rotation/flip
Overscan
Underscan
Image freeze
Pixel-to-pixel
False color
Exposure
Histogram
Timecode (SDI-only)
Aspect ratio selection
Screen markers
Color space
HDR
Color temperature adjustment

HDR and 3D LUTs

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front panel USB port.

15.6 inch broadcast production studio monitor

.

Audio

The monitor can display the Lissajous shape, most useful when used in audio post-production work for detecting phase variance.

Assignable Buttons

Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor’s menu system.

Remote Control

The monitor supports RS-422 via discrete in and out RJ45 connectors. This allows you to control the monitor from computer applications, as well as link multiple monitors together.

Calibration

The monitor supports color calibration using an optional PRO/LTE version of LightSpace CMS, to ensure your monitor is displaying your image accurately.

Fiber

An integrated slot accepts an optional SFP+ module, should you require SFP+ fiber connection.

Comparison Chart | More info | Buy now

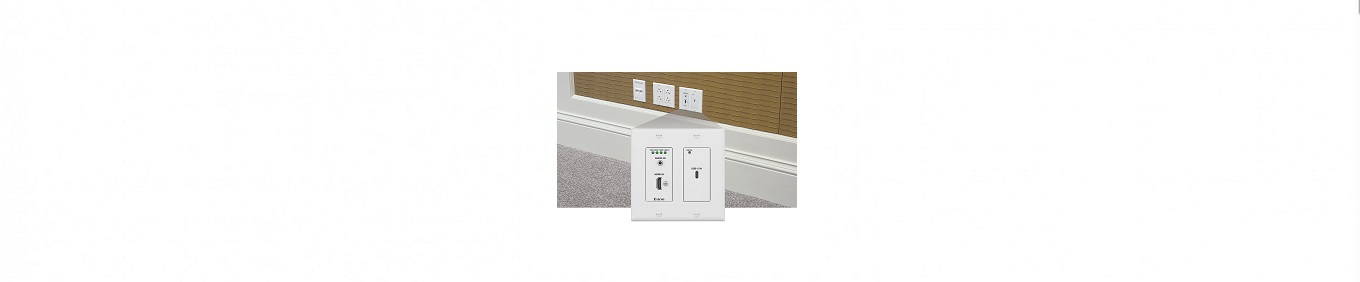

DTP3 Wallplate Transmitter for USB-C and HDMI is HERE!!

Now Shipping

The DTP3 T 212 D two-gang decorator-style transmitter that sends USB-C®, HDMI, audio, and control up to 330 feet (100 meters) over a shielded CAT 6A cable is now available. It supports video resolutions up to 4K/60 @ 4:4:4 and is HDCP 2.3 compliant. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. This handy wallplate transmitter includes many of the same integrator-friendly features you expect with a DTP family member, such as EDID Minder®, auto-switching between inputs, and bidirectional RS-232 pass-through for remote AV device control. A separate analog input enables audio embedding alongside the video signal. Also, it shares remote power with a DTP3-enabled product over the same twisted pair connection for streamlined installation. Packed with features and capabilities in a convenient wall-mountable design, the DTP3 T 212 D provides discreet placement of USB-C and HDMI input connections at walls, lecterns, conference tables, or wherever needed in a professional environment.

Key Features

Transmits USB-C® video, HDMI, audio, and control up to 330’ (100 m) over a shielded CAT 6A cable
Supports computer and video resolutions up to 4K/60 @ 4:4:4
Analog stereo audio embedding
- Auto-switching between inputs
- Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- DTP3 output is compatible with HDBaseT®-enabled devices
- HDCP 2.3 compliant
Remote power capability with DTP3 products
- EDID Minder® automatically manages EDID communication between connected devices
- Bidirectional RS-232 pass-through for AV device control
- Mounts in an included two-gang decorator-style wallplate

The DTP3 T 212 D is shipping.

DTP3 T 212 D
MODEL	VERSION DESCRIPTION	PART #
DTP3 T 212 D	USB-C, HDMI Decorator Tx, Black – 330 feet (100 m)	PART # 60-1714-52
DTP3 T 212 D	USB-C, HDMI Decorator Tx, White – 330 feet (100 m)	PART # 60-1714-53

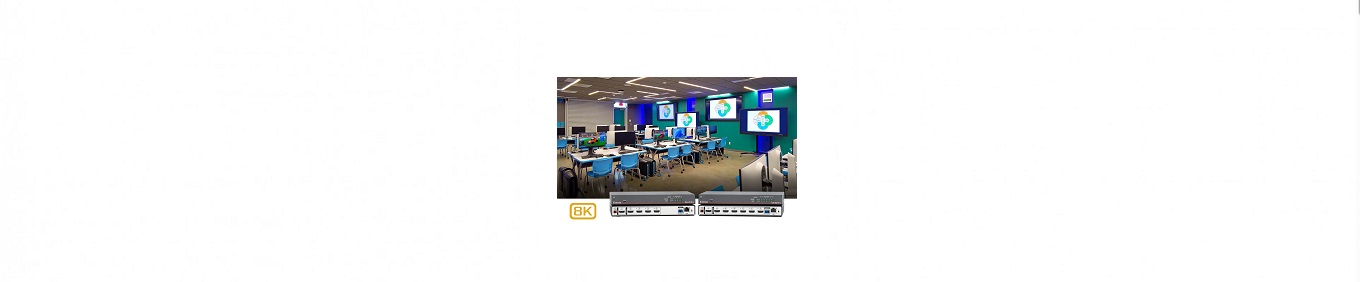

Now Shipping! More 8K HDMI Distribution Amplifiers Added to Lineup

Now Shipping

DA4 HD 8K L & DA6 HD 8K L

Now available are the additional four output and six output models that expand our family of 8K HDMI distribution amplifiers. The DA4 HD 8K L and DA6 HD 8K L join the popular DA2 HD 8K L to provide a wider range of design options when you need to distribute the very highest resolutions to multiple destinations. These HDCP 2.3-compliant distribution amplifiers for HDMI 2.1 support resolutions up to 8K/60, including 5K applications such as Microsoft® Teams® 21:9 in Front Row installations. Each distribution amplifier supports data rates up to 40.1 Gbps, HDR, Deep Color up to 12 bits, 3D, and HD lossless audio formats. They also feature CEC capability to streamline operation. Packed with even more features and capabilities, the DA HD 8K L distribution amplifiers are ideal for a wide variety of applications, from presentation spaces to esports arenas, providing reliable distribution of a high data rate HDMI source signal to multiple displays.

Key Features

Supports computer and video resolutions up to 8K/60
Supported HDMI 2.1 specification features include data rates up to 40.1 Gbps, HDR, Deep Color up to 12 bits, 3D, HD lossless audio formats, and CEC control
HDCP 2.3 compliant
- EDID Minder Plus automatically manages EDID communication between connected devices
- Key Minder continuously verifies HDCP compliance
- Selectable output muting for video, audio, and sync in any combination
- Supports HDR video
Automatic input cable equalization
- Provides +5 VDC, 250 mA power on each output for external peripheral devices
- Ethernet monitoring and control
- Compact 1” (2.5 cm) high metal enclosures

The DA2 HD 8K L, DA4 HD 8K L, and DA6 HD 8K L are shipping.

DA HD 8K L Series
MODEL	VERSION DESCRIPTION	PART #
DA2 HD 8K L	Two Output 8K HDMI DA	PART # 60-1870-01
DA4 HD 8K L	Four Output 8K HDMI DA	60-1871-01
DA6 HD 8K L	Six Output 8K HDMI DA	PART # 60-1872-01

Feel free to email or call us to purchase this Product.

Elevate Your Meetings with Wireless Sharing on Dual 4K Displays

Introducing the ShareLink® Pro 2500, our first 4K Dual Screen Wireless Presentation System that enables anyone to present content from computers, tablets, or smartphones on up to two displays for easy collaboration. It can simultaneously display content from up to four devices, including an HDMI-connected device, such as a signage player or other AV source. The ShareLink Pro 2500 includes ConferenceShare™, which wirelessly incorporates video and audio captured by in-room USB devices into Teams or Zoom meetings. Collaboration and moderator modes facilitate both open and controlled environments, and dual Ethernet ports support more secure environments. When used with Extron GVE – GlobalViewer Enterprise software, multiple units can be managed across an enterprise or campus. ShareLink Pro’s professional capabilities provide easy integration of AV and mobile devices into meeting and large collaboration spaces.

Key Features

• Provides full screen mirroring for all devices

• NEW – ConferenceShare™ enables wireless use of room cameras for UC meetings

• NEW – Dual HDMI output supports displaying shared content on multiple displays

• Supports Mac® and Windows® computers as well as Apple® and Android® tablets and smartphones

• Share content without installing software via AirPlay®, Miracast®, or WebShare™

• Active Learning feature shares content between multiple ShareLink Pro devices – LinkLicense required

Feel free to email or call us to purchase this product.

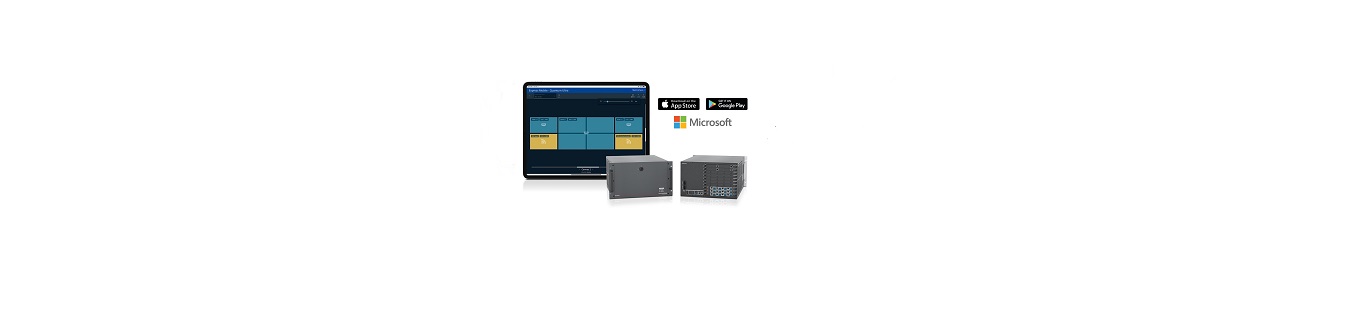

Extron Videowall Mobile App for Quantum Ultra Enhanced with Powerful New Features

EMS Express Mobile Software – Quantum Ultra

Videowall control is even easier with the latest update to EMS Express Mobile Software – Quantum Ultra, which now supports up to 20 canvases, user roles, user canvas access, source assignment by canvas, and more. This intuitive application for iOS®, Android™, and Windows® platforms leverages familiar touch controls like pinch and zoom, drag and drop, tap, and swipe for easy wireless control of a Quantum Ultra videowall. Its powerful features combined with the user-friendly interface and new enhanced capabilities, such as remote videowall operation within an Extron FOX™ installation and more flexibility with multiple canvases, make EMS-Quantum Ultra an ideal solution for single- or multi-point user control of a videowall.

New Features

• Flexible Canvas area for content placement – The on-screen representation of the videowall can be independent of the overall output resolution. This is beneficial when the active videowall area is a subset of the total output resolution. Any unused Canvas area is hidden from view.

• Support for Quantum IN4FOX3 and Quantum OUT4FOX3 cards – Compatible with Quantum Ultra II videowall processors; a firmware update to support these cards is required.

• Up to 50 login accounts with Admin, Designer, or User Permission Levels

• Manage up to 20 videowalls with varying resolutions and screen arrangements — Up to 20 canvasses can be easily controlled from a single Quantum Ultra or Quantum Ultra II system.

• Canvas Access Permission– Allows Login accounts to have designated access to one or more canvasses in a project file, up to a maximum of 20 canvasses, as specified by an Administrator in VCS.

• Source Access Permission – Allows Canvasses to have access only to designated sources, as specified by an Administrator in VCS.

Key Features

• Provides convenient control of Quantum Ultra or Quantum Ultra Connect videowall systems from a mobile device

• Compatible with Apple® iOS, Google® Android, and Microsoft® Windows 10 and Windows 11 devices

• Simplifies common operational tasks, such as preset selection, window management, and source switching

• Supports familiar operational gestures, including drag and drop, swipe, and tap

• Control videowalls from up to 10 mobile devices simultaneously

•Apply border styles to windows

• Easily hide/reveal windows

• Pinch and Zoom gestures for easy window sizing

• Support for Quantum Expansion IN and Quantum Expansion OUT cards that link
multiple Quantum Ultra processors together to create a single large system

• Alerts notify users of temperature warnings and more

• Requires videowall processor with LinkLicense® for EMS–Quantum Ultra

• Prioritize windows by layer

• Allows simultaneous selection of multiple windows using a toolbar or contextual menu

• Window groups can be snapped to screen or grid

• Window group responds to alignment, size, and spacing buttons from the toolbar

• Select All button enables selection of all windows on the current canvas

• Global selection of the Aspect Ratio state, Locked or Unlocked, for the current window group.

EMS-Quantum Ultra v1.7 is now available.

EMS Express Mobile Software – Quantum Ultra
MODEL	VERSION DESCRIPTION	PART #
LinkLicense	Quantum Ultra Mobile Control App Upgrade	PART # 79-2576-01

Dual channel RF Power Meter PwrM70G 100MHz to 70GHz

The Dual Channel RF power meter PwrM70G represents broadband power meter device perfectly suited to measure RF in C, KU and KA Band. The Dual Channel RF power meter PwrM70G is available as a compact handheld unit or a modular type 1RU/19” rack mount chassis that can hold up to 4 power meter modules. The Dual Channel RF power meter PwrM70G is a perfect solution for broadband monitoring applications, capable for simultaneous monitoring of 2 to 8 RF signals within a frequency range of 100MHz – 70GHz. The Dual Channel RF power meters PwrM70G provide a large dynamic range with high accuracy assuring excellent and precise RF power monitoring at any time

Features & Benefits

More Information

Download Dual-channel RF Power Meter PwrM70G 100MHz to 70GHz pdf

More info

New Compact Fiber Optic Scaling Receiver Modules

FOX3 Scaling Receiver Modules for the PowerCage 411

We’ve expanded our powerful, space-saving FOX3 PowerCage® platform with three new single-slot fiber optic scaling receiver modules. Designed specifically for the PowerCage 411 enclosure, the FOX3 SR 311 PC, FOX3 SR 301 PC, and FOX3 SR 201 PC are compact new modules that provide long-haul extension of HDCP-compliant HDMI video with embedded audio and RS-232 control, as well as optional USB or USB HID signals. Engineered for exceptional high resolution image performance, they use Extron all-digital technology to deliver perfect pixel-for-pixel, uncompressed transmission of images up to 4K/60 @ 4:4:4 over two fibers or mathematically lossless 4K/60 @ 4:4:4 over one fiber. Designed specifically for AV and KVM systems, these new fiber optic scaling receivers also include many integrator-friendly features such as Key Minder® and real-time system monitoring.

Key Features

Receives fiber optic signals from FOX3 Series transmitters and provides scaled HDMI video with embedded audio and RS-232 control (FOX3 SR 201 PC) as well as USB (FOX3 SR 301 PC) or USB HID (FOX3 SR 311 PC).
High performance scaler provides selectable output resolutions up to 4096×2160 at 60 Hz with a 4:4:4 chroma sampling.
Supports mathematically lossless 4K video up to 4096×2160 at 60 Hz with a 4:4:4 chroma sampling over one fiber.
Supports uncompressed 4K video up to 4096×2160 at 60 Hz with a 4:4:4 chroma sampling over two fibers.
Supported HDMI 2.0 specification features include data rates up to 18 Gbps and Deep Color up to 12-bit.
HDCP 2.3 compliant.

Feel free to email or call us to purchase this product.
