Fiber Optic Matrix Switchers

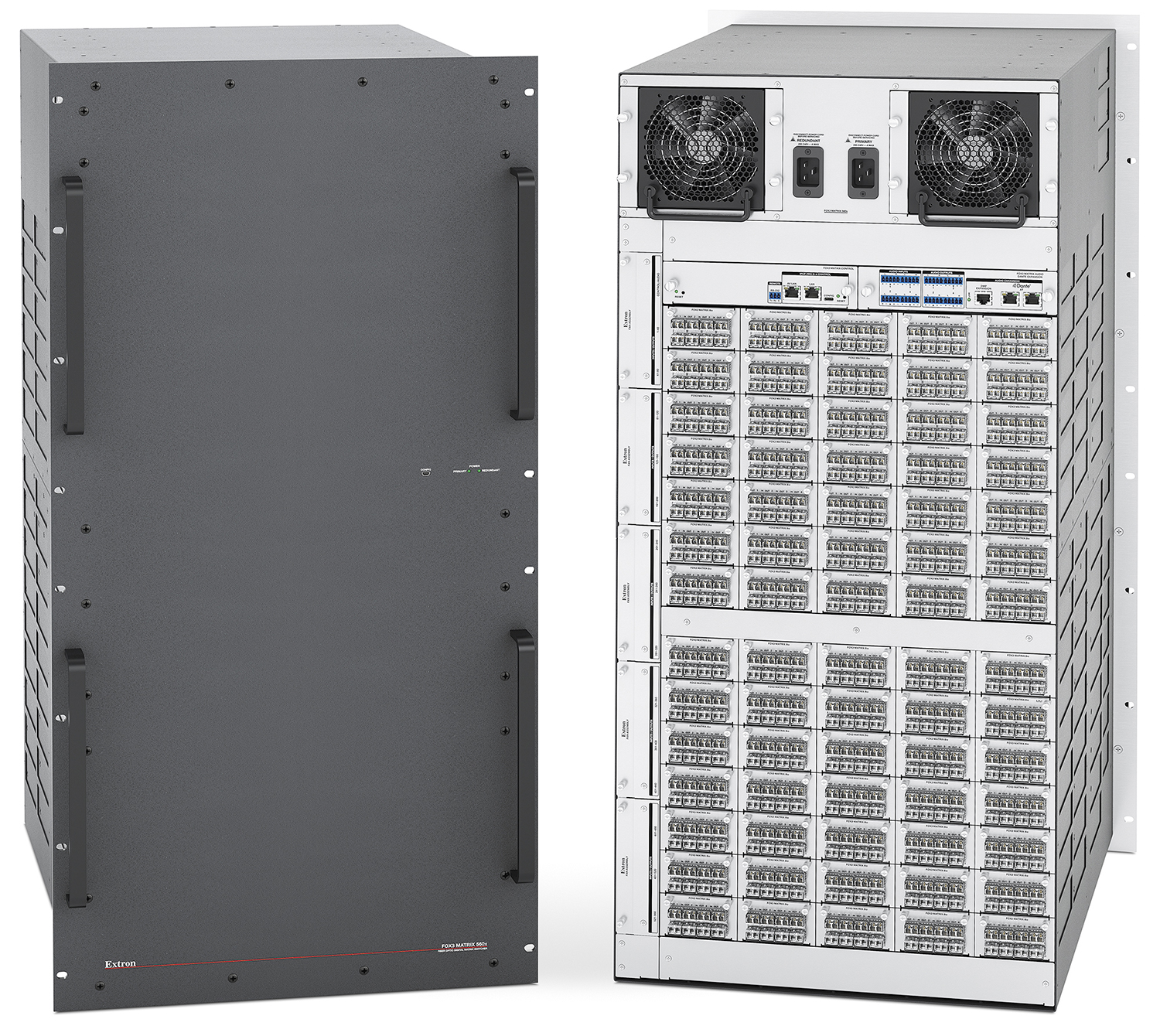

FOX3 Matrix 560x and FOX3 Matrix 840x

Modular Fiber Optic Matrix Switchers

We are happy to announce the immediate availability of two high-performance switching solutions: the FOX3 Matrix 560x and FOX3 Matrix 840x. Both models provide exceptional switching of 4K/60 video, audio, USB, control, and 3D Sync over fiber optic cable.

The FOX3 Matrix 560x is expandable in sizes from 8×8 up to 560×560, while the FOX3 Matrix 840x offers scalability from 8×8 up to 840×840. These modular matrix switchers feature an integrated IPCP Pro Q xi control processor, ensuring advanced security standards and Gigabit Ethernet ports for compatibility with Extron IPCP Pro control processors and TouchLink® Pro touchpanels using a standard network infrastructure.

Both models include Dante, DMP Expansion, and analog audio I/O ports for audio embedding and de-embedding, along with numerous integrator-friendly features such as redundant hot-swappable power supplies and real-time system monitoring. The FOX3 Matrix 560x and FOX3 Matrix 840x deliver highly reliable, enterprise-wide switching of fiber optic AV, USB, and control signals for mission-critical environments.

Capture

fox3matrix560x-lg

Configurable Presentation Matrix Switchers

We are pleased to introduce the DTP3 CrossPoint Series of configurable presentation matrix switchers. These powerful products deliver high-performance matrix switching with HDMI and DTP3 inputs and outputs, audio DSP with AEC, Dante®, a power amplifier, and a control processor, all in a single box. Industry-leading DTP3 CrossPoint® matrix switchers feature reversible DTP3 I/O ports, enabling one unit to support multiple matrix configurations to suit the unique needs of each project.

We are pleased to introduce the DTP3 CrossPoint Series of configurable presentation matrix switchers. These powerful products deliver high-performance matrix switching with HDMI and DTP3 inputs and outputs, audio DSP with AEC, Dante®, a power amplifier, and a control processor, all in a single box. Industry-leading DTP3 CrossPoint® matrix switchers feature reversible DTP3 I/O ports, enabling one unit to support multiple matrix configurations to suit the unique needs of each project.



DTP3 CrossPoint 4K/60 Presentation Matrix Switchers are available in four sizes, providing flexible input/output configurations to match a wide range of system applications:
DTP3 CrossPoint 884 Configurable from 8×12 to 12×8
DTP3 CrossPoint 662 Configurable from 6×8 to 8×6
DTP3 CrossPoint 642 Configurable from 6×6 to 8×4
DTP3 CrossPoint 622 Configurable from 6×4 to 8×2
With a maximum data rate of 18 Gbps, these feature-rich matrix switchers support video resolutions up to 4K/60 at 4:4:4 color sampling and are HDCP 2.3 compliant. Extron-patented Vector™ 4K technology facilitates state-of-the-art video scaling on all outputs. Other professional capabilities include seamless switching, logo keying, signal extension up to 330 feet (100 meters) over shielded CAT 6A cable, and more. Providing complete system integration for AV systems in a 2U or 3U full rack width metal enclosure, the DTP3 CrossPoint Series is ideal for professional environments with multiple source and display devices and that require sound reinforcement and system control.

Key Features

  • All-in-one 4K switchers with selectable matrix configurations, scaling, audio DSP plus AEC, audio power amplifier, and control processing
  • Integrated DTP3 inputs and outputs support transmission of uncompressed video, audio, and control up to 330′ (100 m) over a shielded CAT 6A cable
  • Dante audio networking with Dante Domain Manager and AES67 support provides a wide range of expansion capabilities
  • USB Audio Interface
  • Available energy-efficient Class D amplifier with selectable output power modes:
    • 100 watts stereo into 4 ohms or 8 ohms
    • 200 watts mono into 8 ohms
    • 200 watts mono into 70 V or 100 V
  • Available with integrated IPCP Pro 360MQ xi control processor
  • Available with built-in ShareLink® Pro presentation system on select models
  • Compatible with DTP3 and DTP®-enabled products, plus XTP II CrossPoint matrix switchers
  • Remote powering of DTP3 and DTP transmitters and receivers

The DTP3 CrossPoint 884 will be available in September 2024.
The other DTP3 CrossPoint models will be available in January 2025.

DTP3 CrossPoint Series
MODEL VERSION DESCRIPTION PART #
DTP3 CrossPoint 884 Standard Model 60-1696-01
DTP3 CrossPoint 884 IPCP A Control Processor and Amplifier 60-1696-12
DTP3 CrossPoint 884 IPCP A with LinkLicense Control Processor and Amplifier, LL UI Upgrade 60-1696-12A
DTP3 CrossPoint 662 Standard Model 60-1694-01
DTP3 CrossPoint 662 IPCP A Control Processor and Amplifier 60-1694-12
DTP3 CrossPoint 662 IPCP A LL Control Processor and Amplifier, LL UI Upgrade 60-1694-12A
DTP3 CrossPoint 662 IPCP A SL Control Processor, Amplifier and ShareLink 60-1694-13
DTP3 CrossPoint 662 IPCP A SL LL Control Processor, Amplifier, ShareLink, LL UI Upg 60-1694-13A
DTP3 CrossPoint 642 Standard Model 60-1661-01
DTP3 CrossPoint 642 IPCP A Control Processor and Amplifier 60-1661-12
DTP3 CrossPoint 642 IPCP A LL Control Processor and Amplifier, LL UI Upgrade 60-1661-12A
DTP3 CrossPoint 642 IPCP A SL Control Processor, Amplifier and ShareLink 60-1661-13
DTP3 CrossPoint 642 IPCP A SL LL Control Processor, Amp, ShareLink, LL UI Upgrade 60-1661-13A
DTP3 CrossPoint 622 Standard Model 60-1570-01
DTP3 CrossPoint 622 IPCP A Control Processor and Amplifier 60-1570-12
DTP3 CrossPoint 622 IPCP A LL Control Processor and Amplifier, LL UI Upgrade 60-1570-12A
DTP3 CrossPoint 622 IPCP A SL Control Processor, Amplifier and ShareLink 60-1570-13
DTP3 CrossPoint 622 IPCP A SL LL Control Processor, Amplifier, ShareLink, LL UI Upg 60-1570-13A
