RUGGED | COMPACT | LIGHTWEIGHT

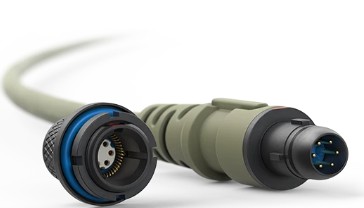

The Fischer UltiMate™ Series offers ultra-rugged, compact, lightweight, sealed connectors and cable assembly solutions. Ideally suited to withstand a variety of severe environmental, industrial and chemical conditions, and designed for durability and stealth, this circular push-pull connector provides extremely robust mechanical keying, IP68/69 sealing even unmated, and excellent 360° EMC shielding. These rugged features make it ideal for extreme applications that depend on data reliability and need to be protected from all sorts of environmental interferences.
Key features
Ultra-rugged
- Blind mating with robust keying code
- High shock and vibration resistance
- High corrosion resistance (up to 1,000 hours of salt mist)
- Operating temperatures from -55 °C to +135 °C
- Up to 10,000 mating cycles
- 360° EMC shielding by design
Extreme sealing ratings
- IP68 sealing 2m/24h mated & unmated (deeper upon request)
- IP69 (protection against intense water jets)
- Hermetic (gas tight, vacuum tight)
- Resin-sealed contact block
- Tested to IEC, EIA, MIL-STD-202, MIL-STD-810
