HIGH-DENSITY MINIATURIZATION | HIGH-SPEED DATA TRANSFER | RELIABILITY
Ideally suited for applications where SWaP (size, weight and power) is critical, the Fischer MiniMax™ Series offers a unique ruggedized, water-tight housing, with a choice of three locking systems: push-pull, screw, quick-release.
Key features
Optimized data & power
- High-density miniaturization
- Unique combinations of signal and power
- Designed and tested to high-speed data transfer protocols
- USB 3.2 Gen 2, Ethernet, Audio/UHD Video
- Up to AWG 18 and 10 Amps
- 360° EMC shielding by design
Rugged and sealed
- IP68 sealing to 20m/24h
- High corrosion resistance (up to 1,000 hours of salt mist)
- Operating temperatures from -40 °C to +135 °C
- Blind mating, easy to handle with gloves
- 5,000 mating cycles
- Tested to IEC, EIA, MIL-STD-202, MIL-STD-810
High-density miniaturization

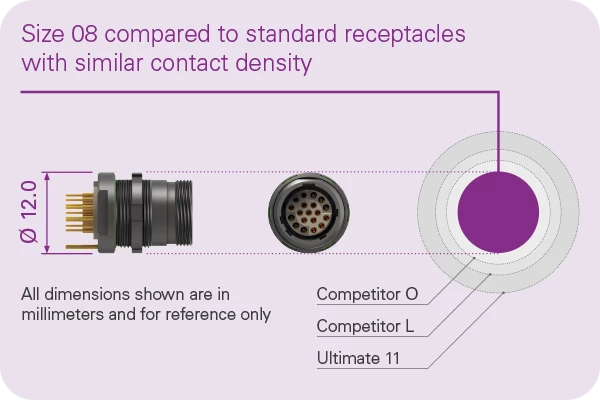

Up to 45% smaller

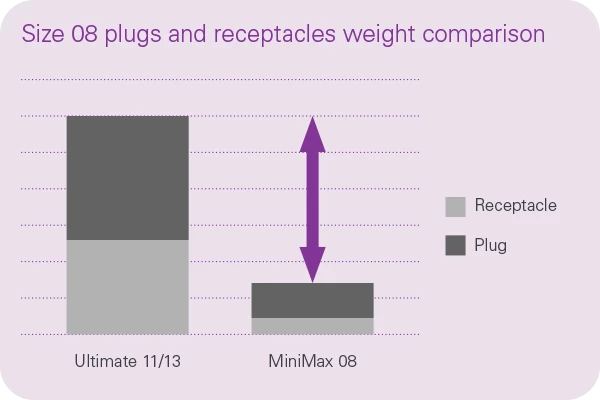

Up to 75% lighter
High-speed data transfer

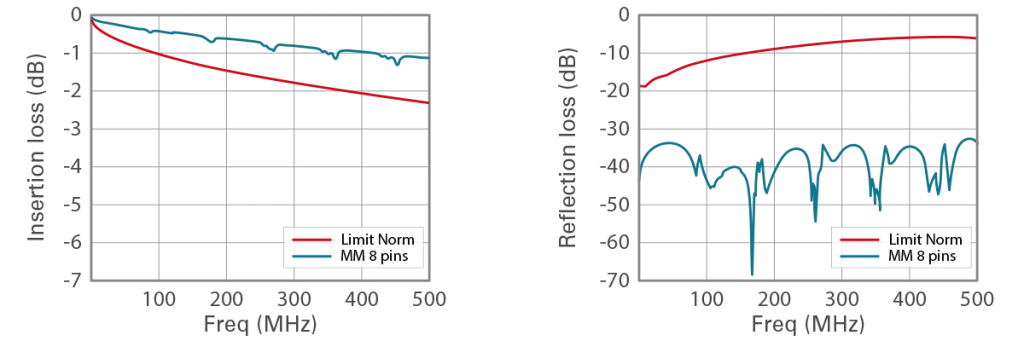

Insertion loss Reflection loss
A unique robust and sealed miniature connector for Ethernet applications in harsh environments.
- AWG 24, compatible with long range standard Ethernet cables
- Symmetrical hermaphroditic contact block
- 0.5 mm contacts

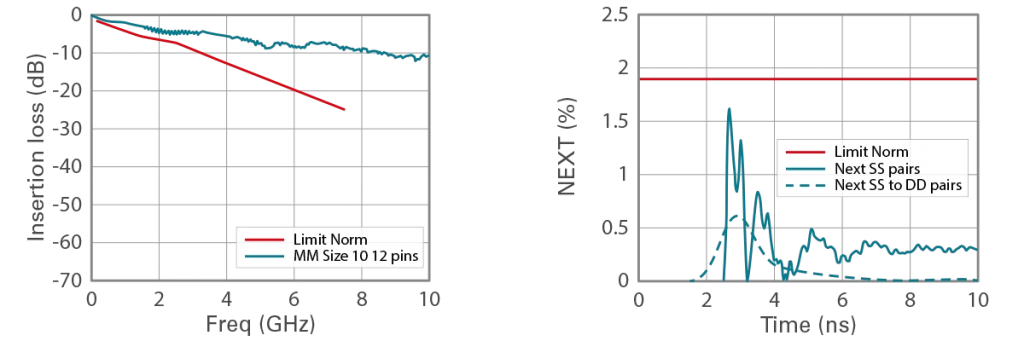

Differential insertion loss of SS pairs (1 m cable) Next of SS and DD pairs (1 m cable)
Optimized design for full USB 3.2 Gen 1 and Gen 2 performance, successfully tested to the full S-parameter standards with cables up to 1 m.
- Advanced power contacts
- Hermaphroditic contact block
- 0.5 mm contacts
