RDL D-SERIES

Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Detachable Terminal Block
• Customizable Front-Panel Text


Highlights

• Wall Mounted Consumer Level Outputs
• Single or Dual Outputs from Mono Source
• Gold Plated Phono Jack Outputs
• Transformer Isolation of the Line Outputs
• Unbalanced Audio Outputs from a Balanced Line Input
• High Attenuation of Reverse Signals


Highlights

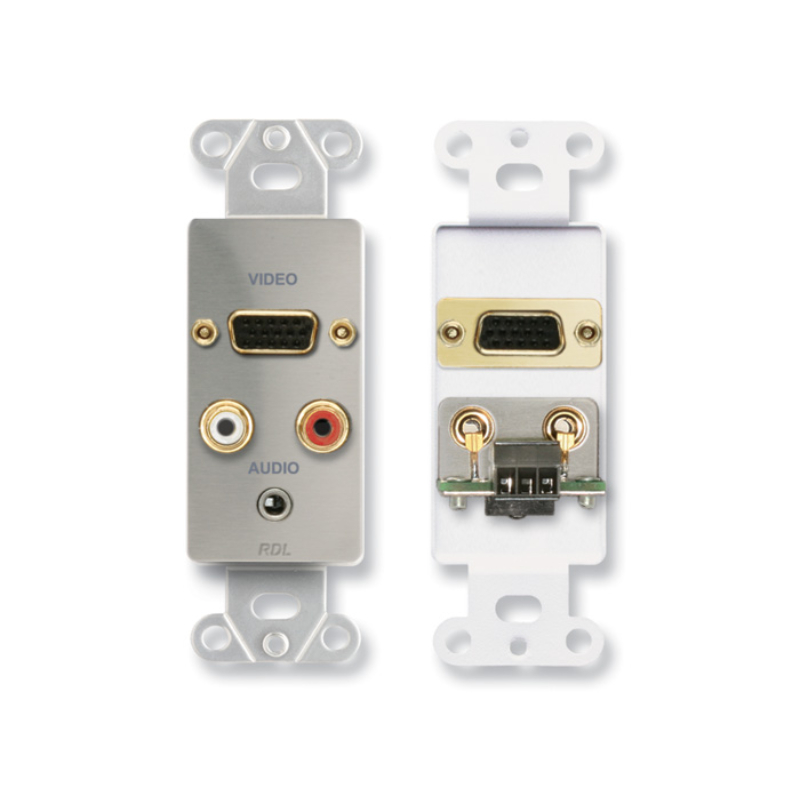

• Stereo Audio Inputs to Stereo Audio Output
• Stereo Inputs on RCA Jacks and Stereo Mini-Jack
• Unbalanced Output on Detachable Terminal Block
• Video Monitor Pass-Through Panel Connector
• Available in RDL White/Gray


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text

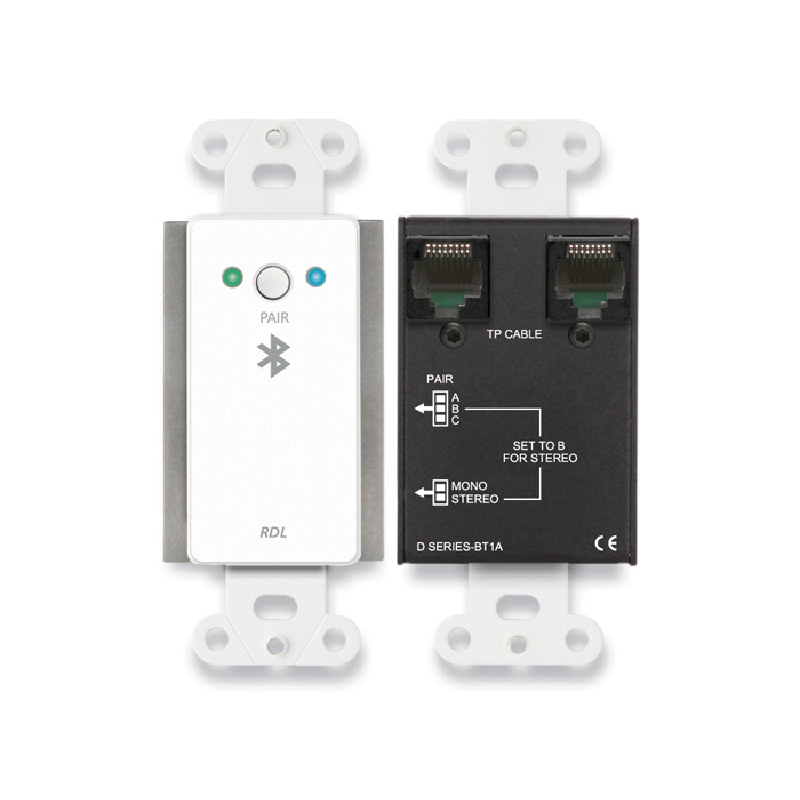

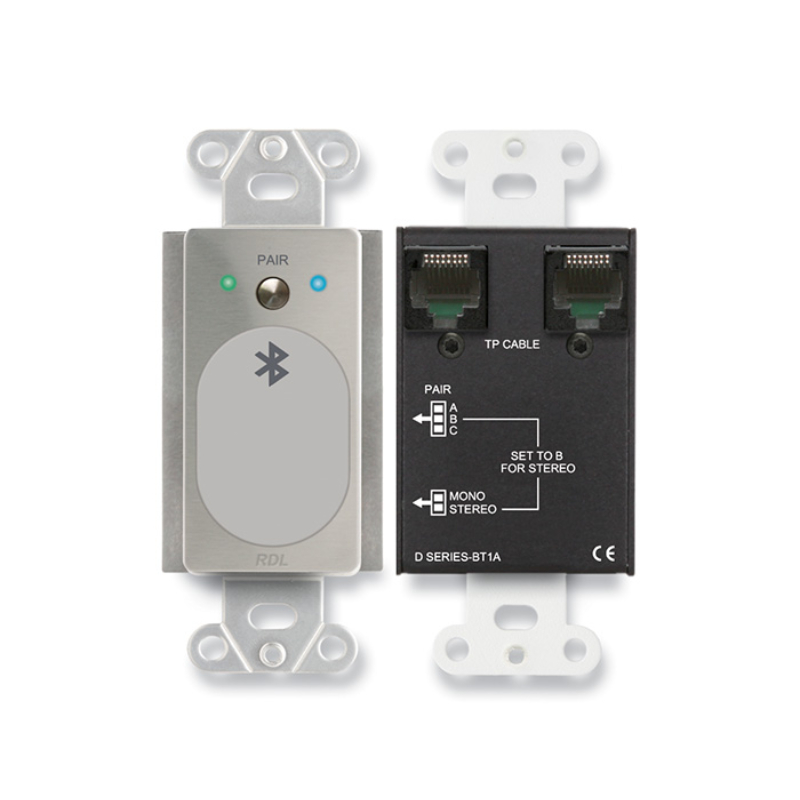

Highlights

• Bluetooth Audio Input for Installed Sound System
• Intuitive Single Button Pairing with LED Status Indication
• Special Software Not Required for Module Setup
• Customize the Module ID Name and Programming Password through the Bluetooth Connection
• Sends Received Bluetooth Audio to RDL Format-A Receivers
• Mono Summed or Stereo Audio Input Mode is Switch-Selectable on Rear Panel
• Rear-Panel Switch Selects which RJ45 Pair (A, B or C) is Fed in Mono Summed Mode
• Daisy-Chain up to Three D SERIES-BT1A modules to One Format-A Receiver in Mono Mode
• Remotely Powered through Twisted Pair Cable
• Signal and Power Pair Pass-Through on RJ45 Jacks
• Requirements:
• To complete a Bluetooth setup using the D SERIES-BT1A Wall-Mounted Bluetooth® Audio Format-A Interface, at least one compatible Format-A receiver and its recommended power supply must be used.

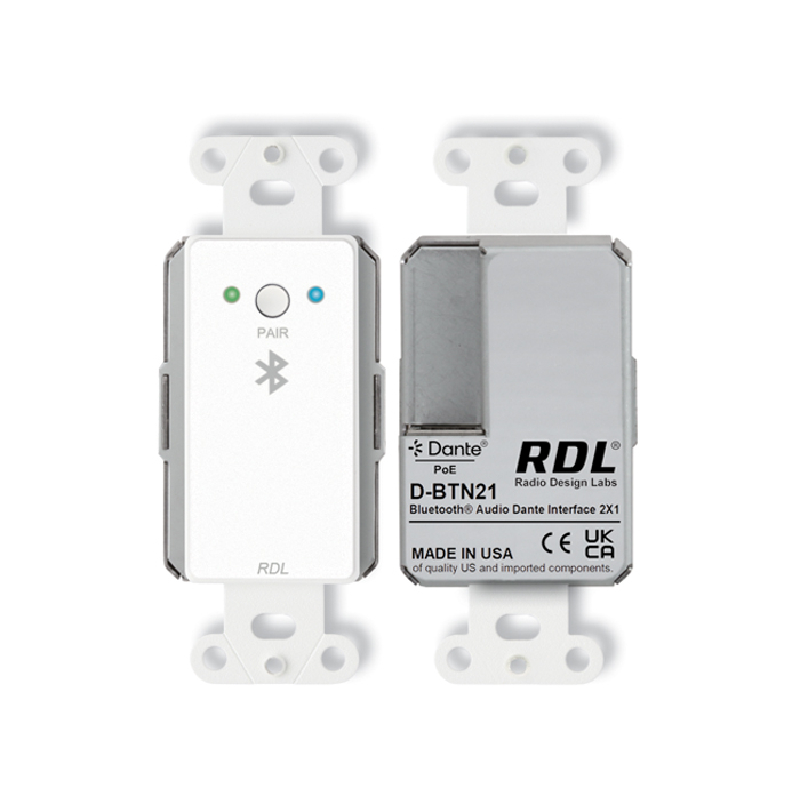

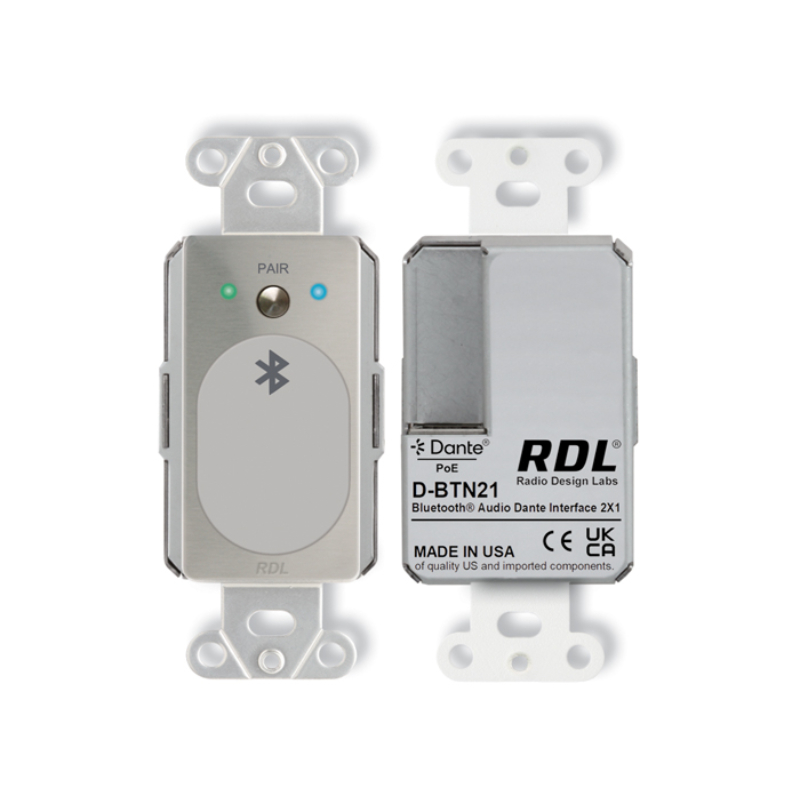

Highlights

• Bluetooth Audio Input for Dante or AES67 Networked System
• Bluetooth Stereo or Mono Sum Feeds Two Network Channels
• Return Audio Talk Channel from Dante Network to Bluetooth Connected Device
• Intuitive Single Button Bluetooth Pairing with LED Status Indication
• Bluetooth Functions are Controllable in RDL CONSOLE Software
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Bluetooth Functions are Controllable using Compatible RDL Remote Controls
• Controllable Functions Include Pairing/Un-pairing, Media Source Track Selection and Level
• Bluetooth Track Title and Artist Data are Multicast on the Network to Compatible Devices
• Customize the Module ID Name, Settings and Mono/Stereo Mode using RDL CONSOLE Software
• Module is PoE Powered

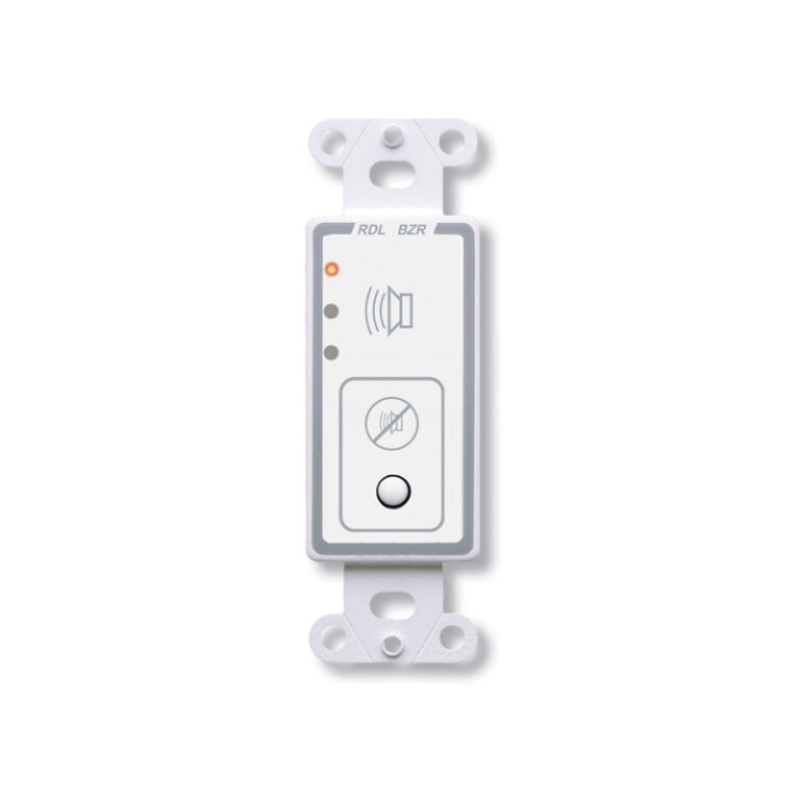

Highlights

• Provides an Audible Alert of a Remote Condition
• LED Alarm Indicator
• Front-Panel Reset Button
• Remote Reset Provision
• Momentary or Latching Operation
• Selectable Audio Level

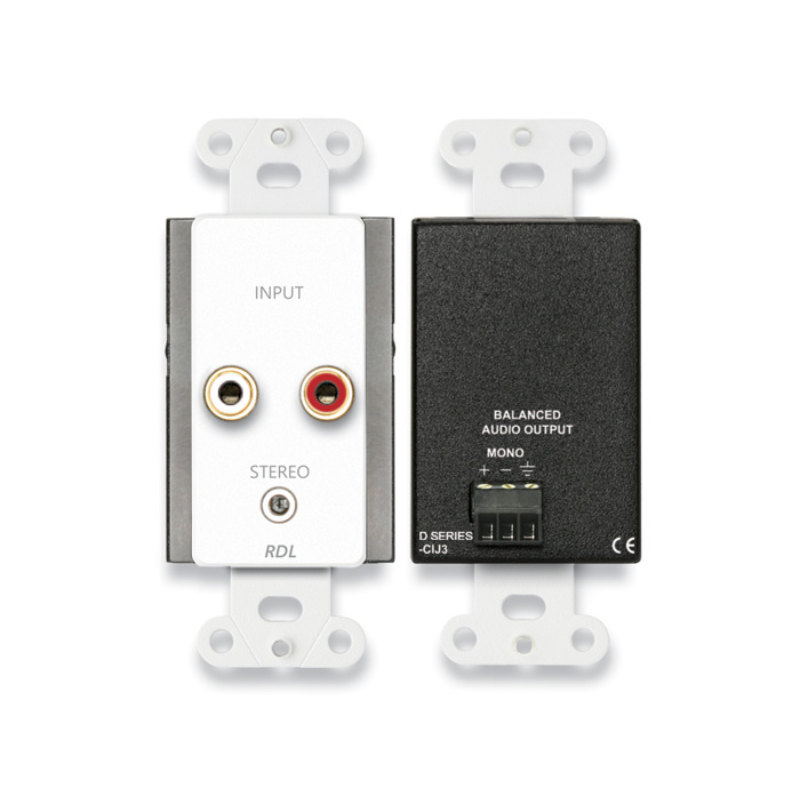

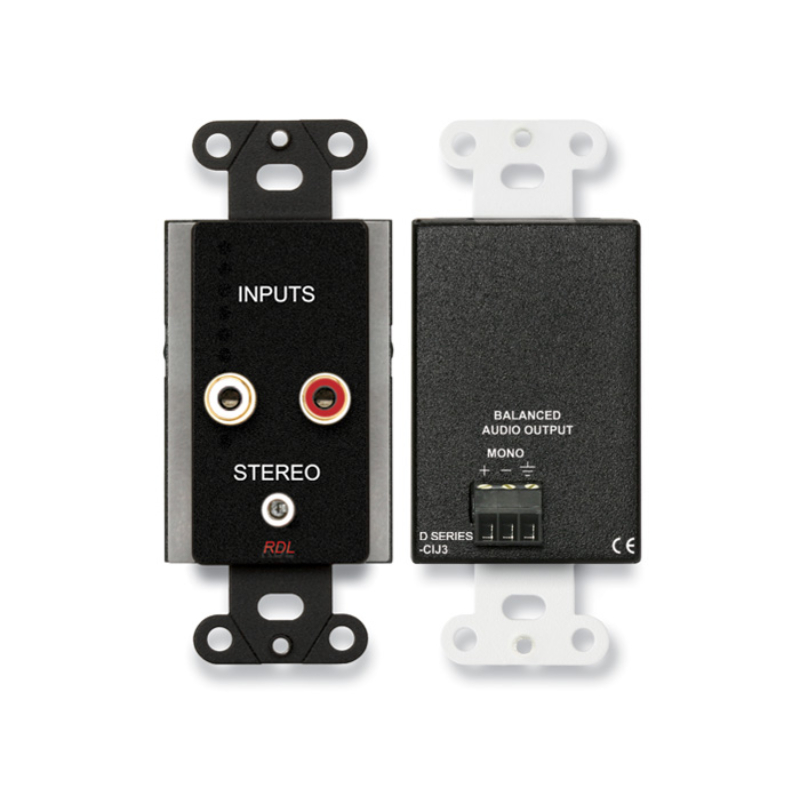

Highlights

• Stereo Inputs to Mono Output
• Stereo Inputs on RCA Jacks and Stereo Mini-Jack
• Unbalanced to Balanced Conversion Without Gain
• Transformer Isolation for Unbalanced Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Line-Level Output to Feed 10 kΩ Equipment Inputs
• Output Connections on Detachable Terminal Block
• Mix Stereo Inputs to Mono Balanced
• Available in RDL White/Gray (D-CIJ3)
• Available in Stainless Steel (DS-CIJ3)

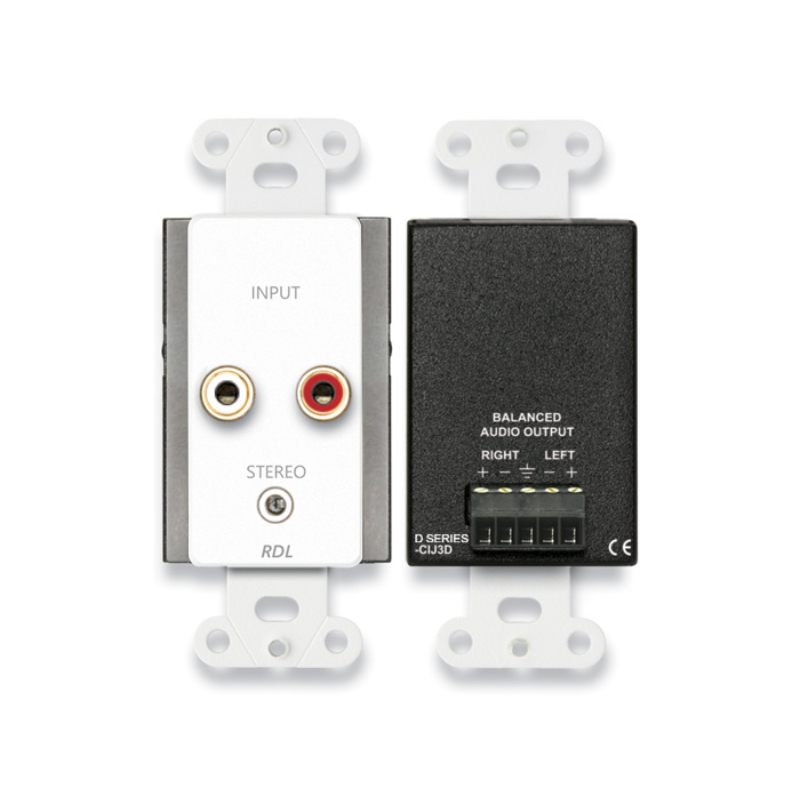

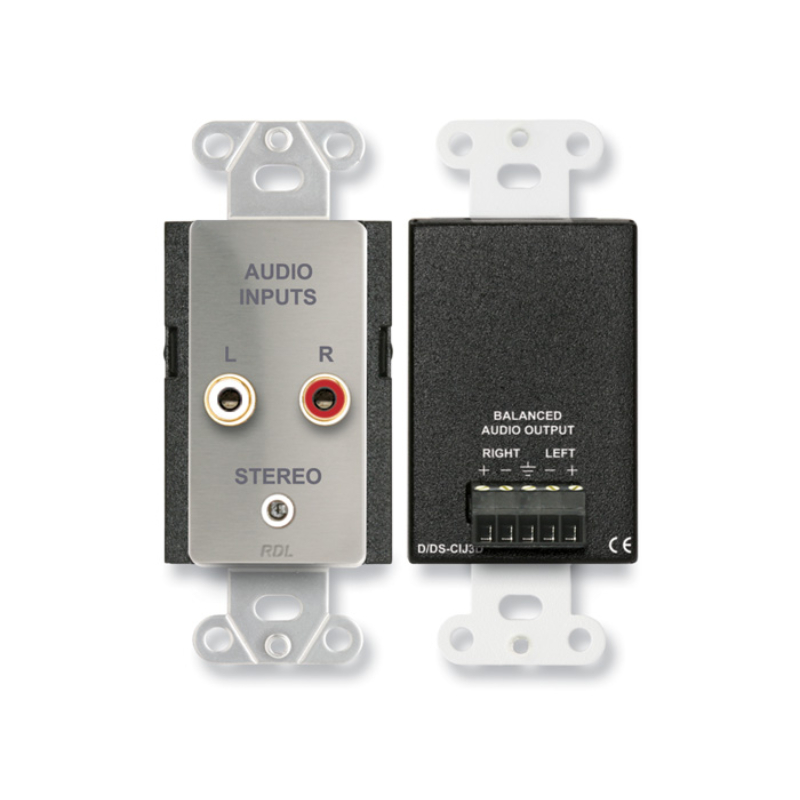

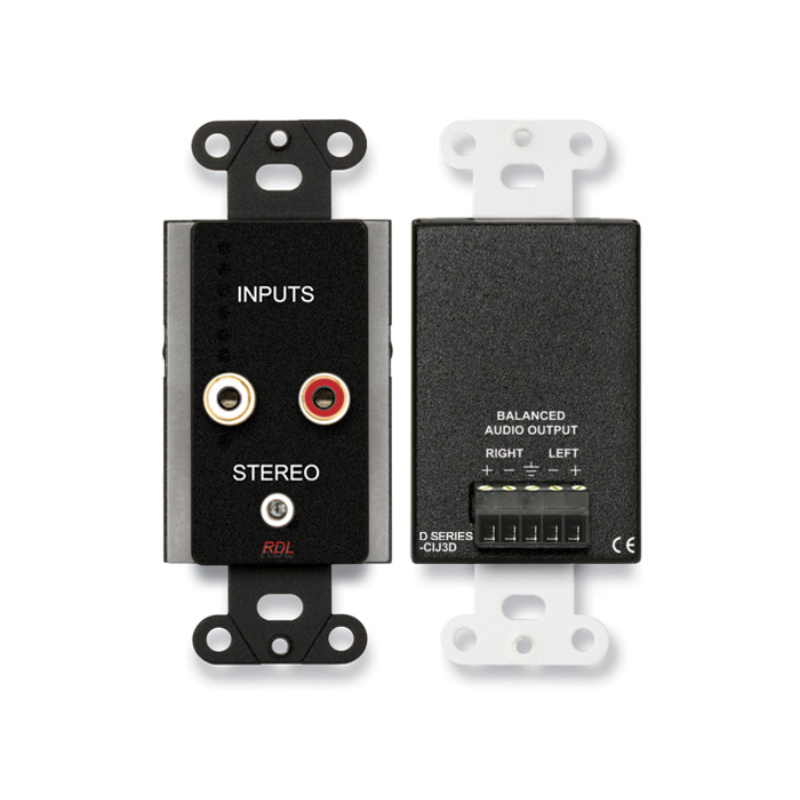

Highlights

• Stereo Inputs to Stereo Outputs
• Stereo Inputs on RCA Jacks and Stereo Mini-Jack
• Unbalanced to Balanced Conversion Without Gain
• Transformer Isolation for Unbalanced Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Line-Level Output to Feed 10 kΩ Equipment Inputs
• Output Connections on Detachable Terminal Block
• Available in RDL White/Gray (D-CIJ3D)
• Available in Stainless Steel (DS-CIJ3D)


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text

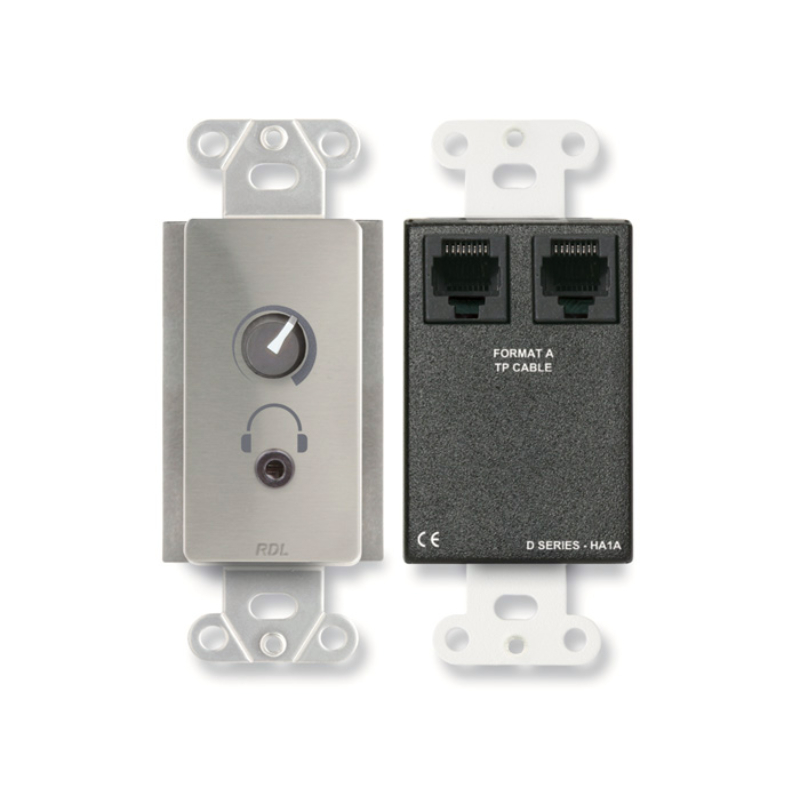

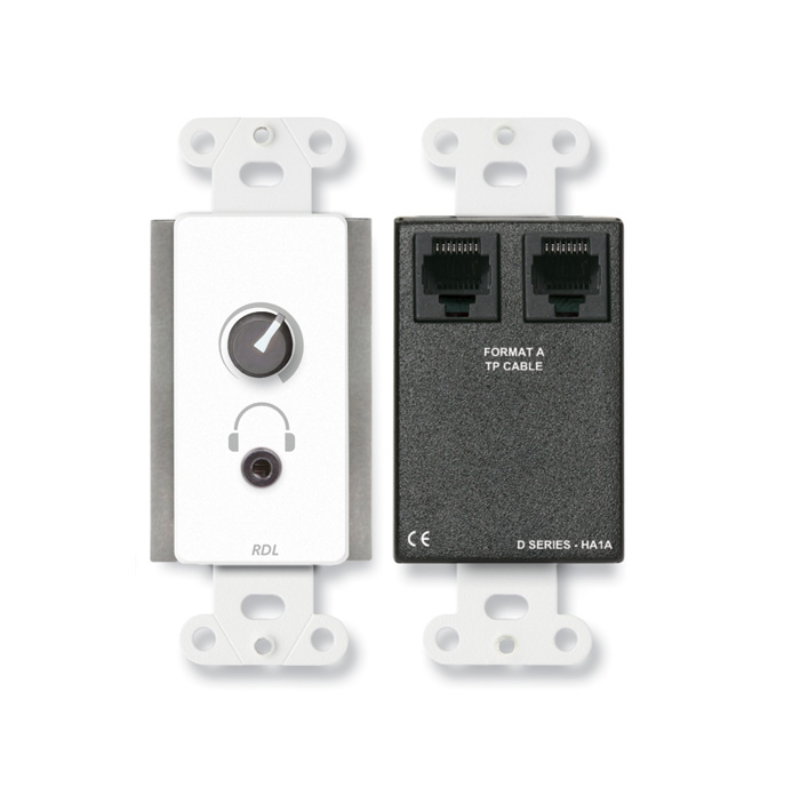

Highlights

• Headphone Amplifier with User Level Control
• Output on Standard Mini-Jack
• Mounts in a Wall or Cabinet
• Input and Power Connection on RJ45
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• RJ45 Loop-Thru for Connecting Additional Modules
• Protected by Automatically Resetting Fuse
• Decora® Design with All Steel Panel and Rear Enclosure
• Available in White, Black, and Stainless Steel

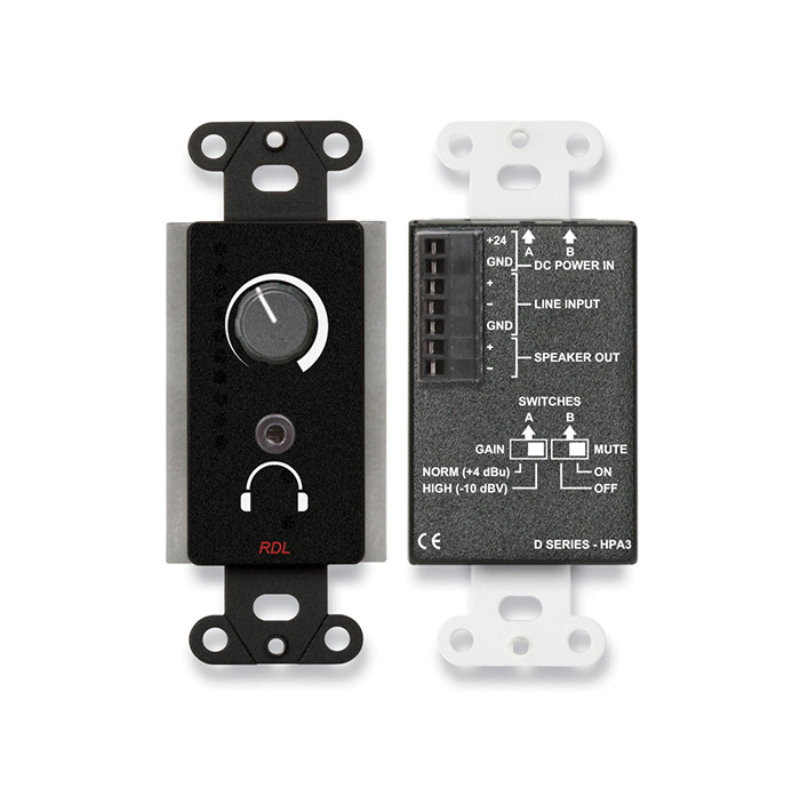

Highlights

• Wall-Mounted Amplifier with 2 Outputs
• Balanced Input on the Rear Panel
• Speaker Output on the Rear Panel
• Mini-Jack Headphone Output on the Front Panel
• Setting to Turn Off Power Amplifier upon Headphone Connection
• Amplifier Muting Using Solid-State Switching
• Single Gain Adjustment for the Speaker and Headphone Amplifiers
• 3.5 Watt RMS Audio Amplifier into 8 Ohms
• 6.5 Watt RMS Audio Amplifier into 4 Ohms
• Output Drives 4 or 8 Ohm Speaker
• High-Efficiency Class D Operation
• Speaker Output Connection on Detachable Terminal Block
• Ultra-Compact All Metal Construction
• Thermal and Short-Circuit Protection

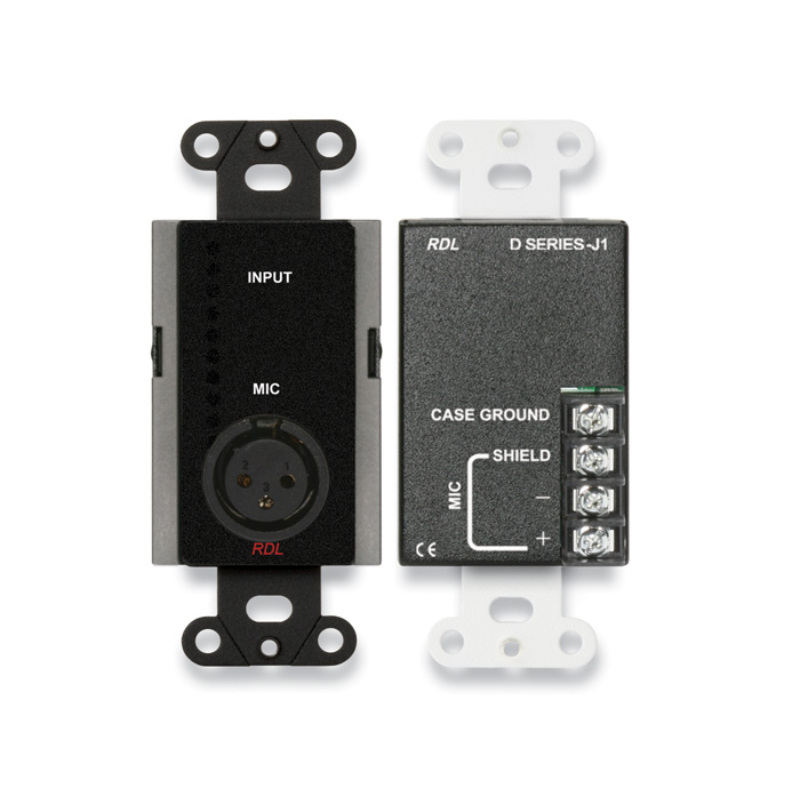

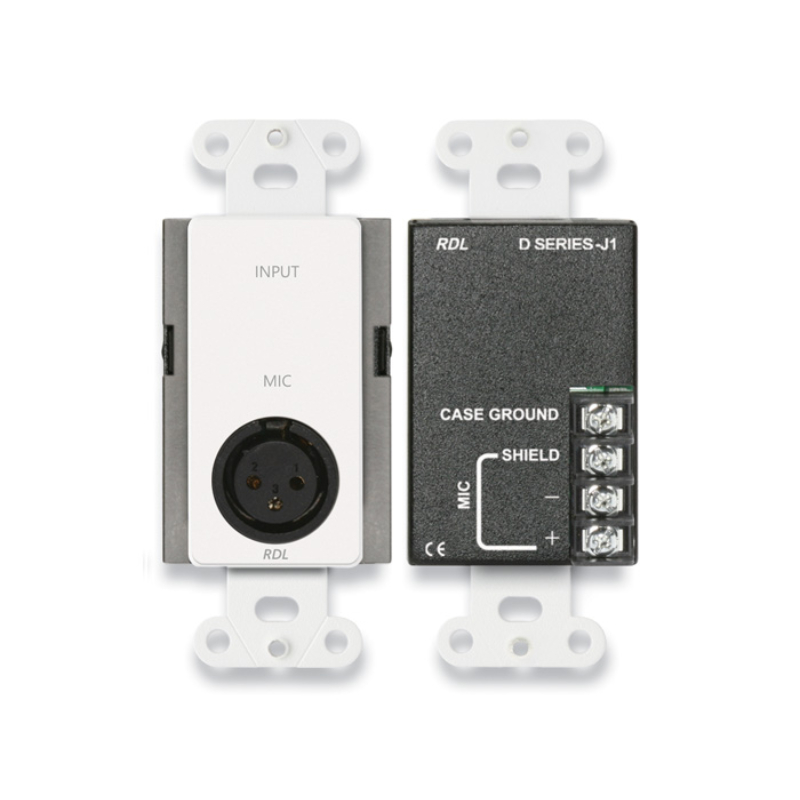

Highlights

• Wall Mounted Microphone Input Panel
• XLR Input Connector with Gold Contacts
• Barrier Block Wiring Connections
• Ground-Lift Terminals on Barrier Block

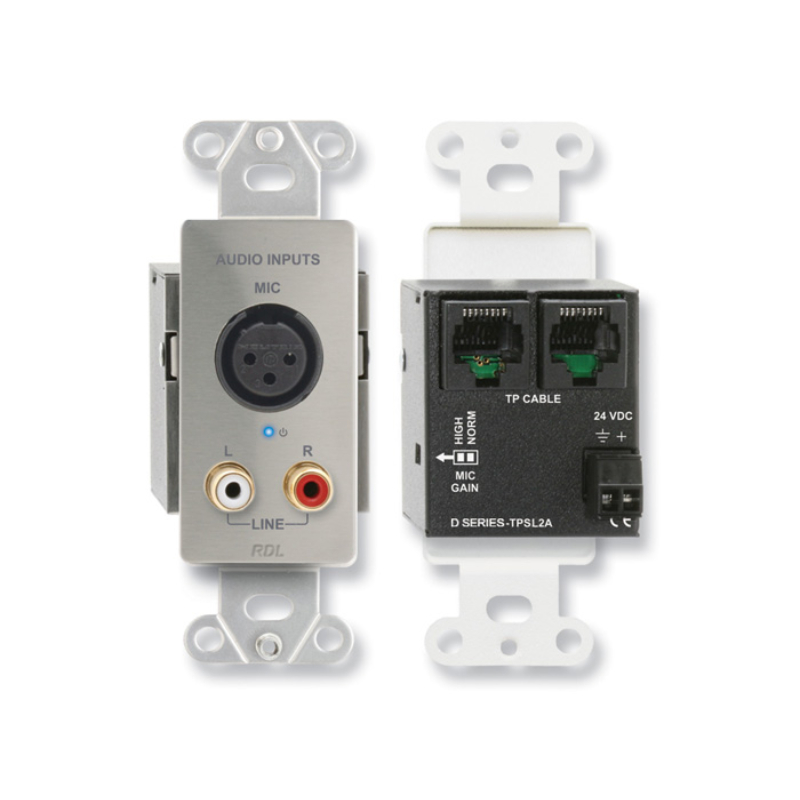

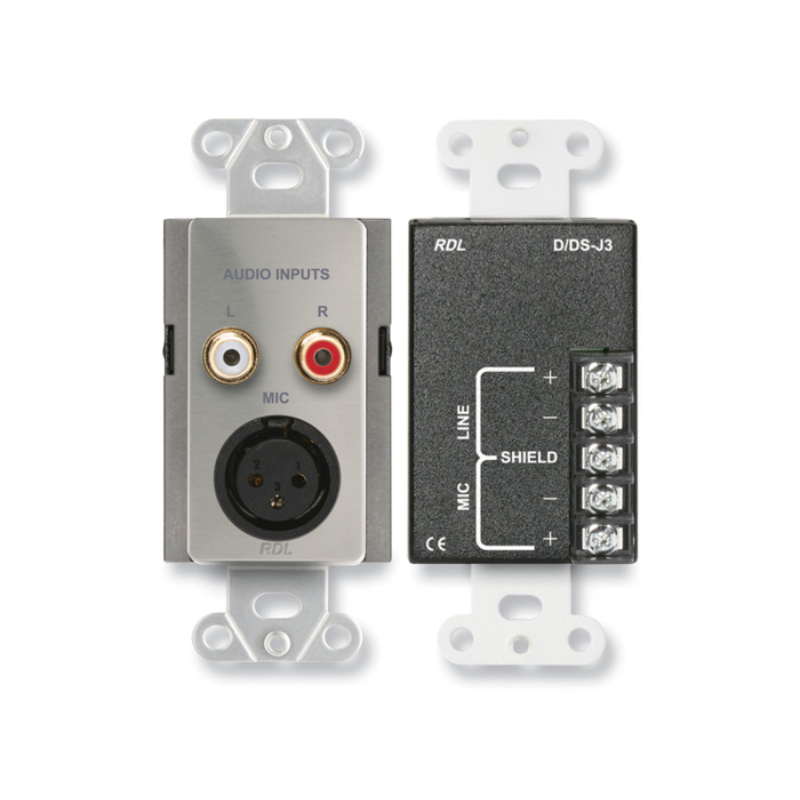

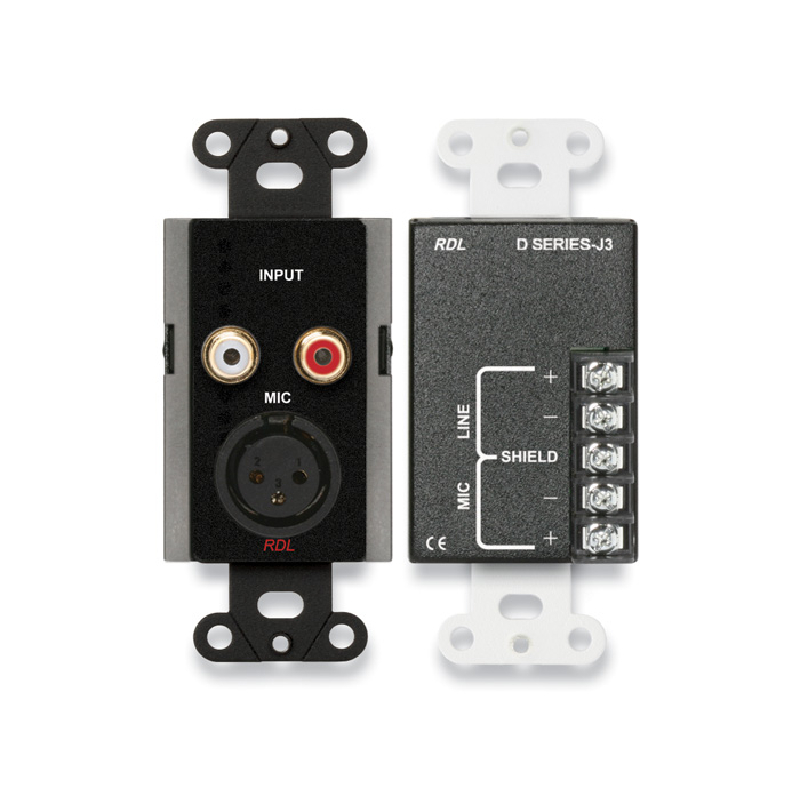

Highlights

• Wall Mounted Audio Inputs
• XLR Microphone Input with Gold Contacts
• Gold Plated Phono Jack Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Transformer Isolation for Unbalanced Line Inputs
• Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs

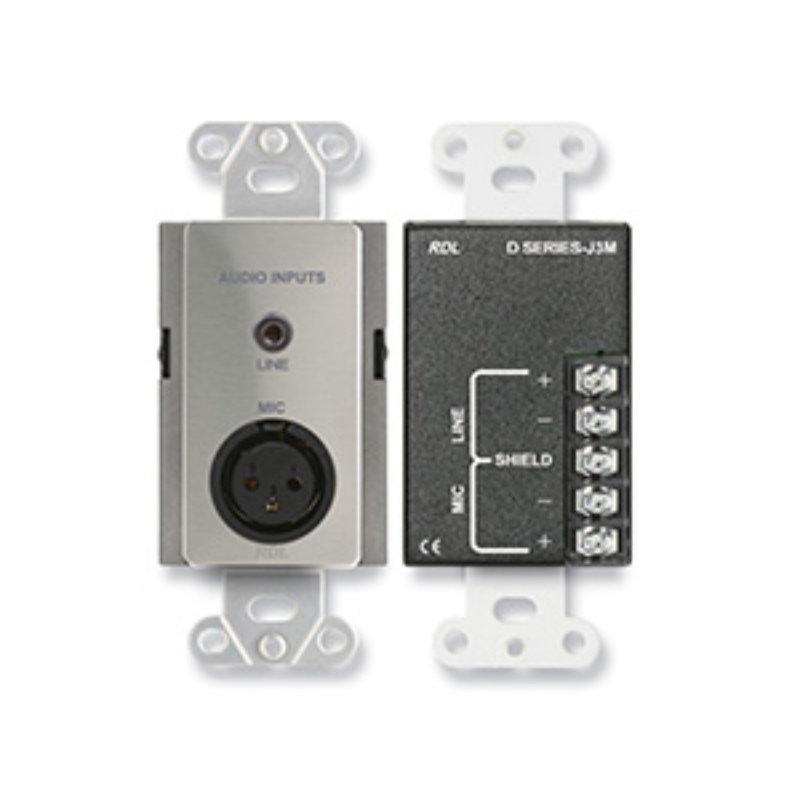

Highlights

• Wall Mounted Audio Inputs
• XLR Microphone Input with Gold Contacts
• Mini-Jack Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Transformer Isolation for Unbalanced Line Inputs
• Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs

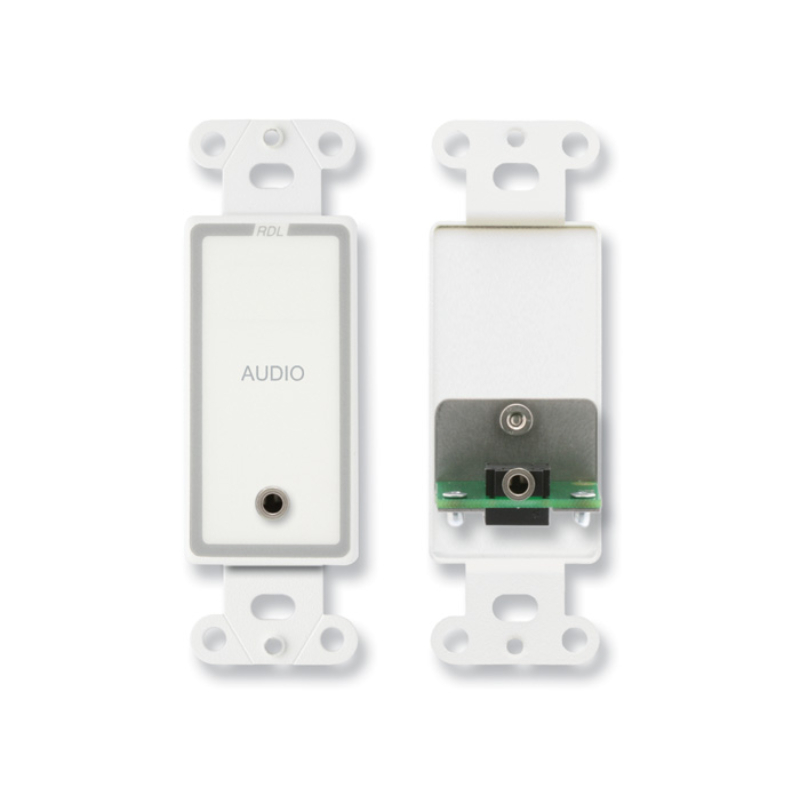

Highlights

• Stereo Audio Input to Stereo Audio Output
• Stereo Input on Mini-Jack
• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text

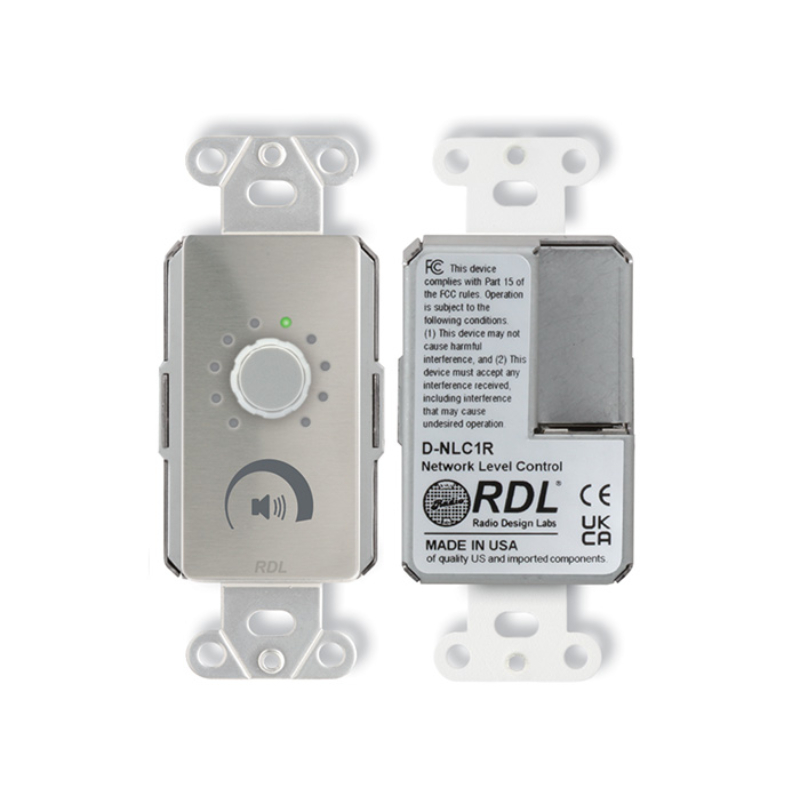

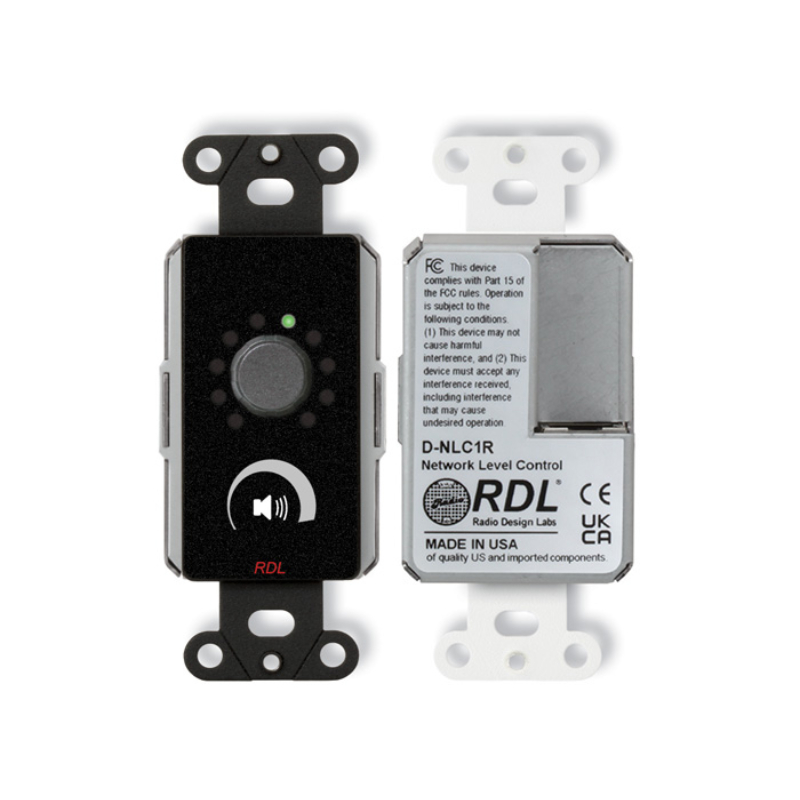

Highlights

• Rotary Encoder Remote Control with LED Rotary String Display
• Knob Rotation Adjusts Audio Volume Up or Down
• Attenuation Adjustment in 1 dB Steps From 0 to 64 dB
• Each D*-NLC1R Can Control One or Multiple RDL Products
• Multiple D*-NLC1Rs Can Control One or More RDL Products
• Programmable Knob Action Acceleration
• Momentary Knob Push to Mute/Unmute with LED Indication
• Compatible with D-RN, DD-RN and Other RDL Products*
• Sends Level Commands to Network Devices that Adjust Audio Levels*
• Displays Audio Attenuation Level Reported by a Network Audio Device*
• PoE Powered
• Available in Black, White, and Stainless Steel

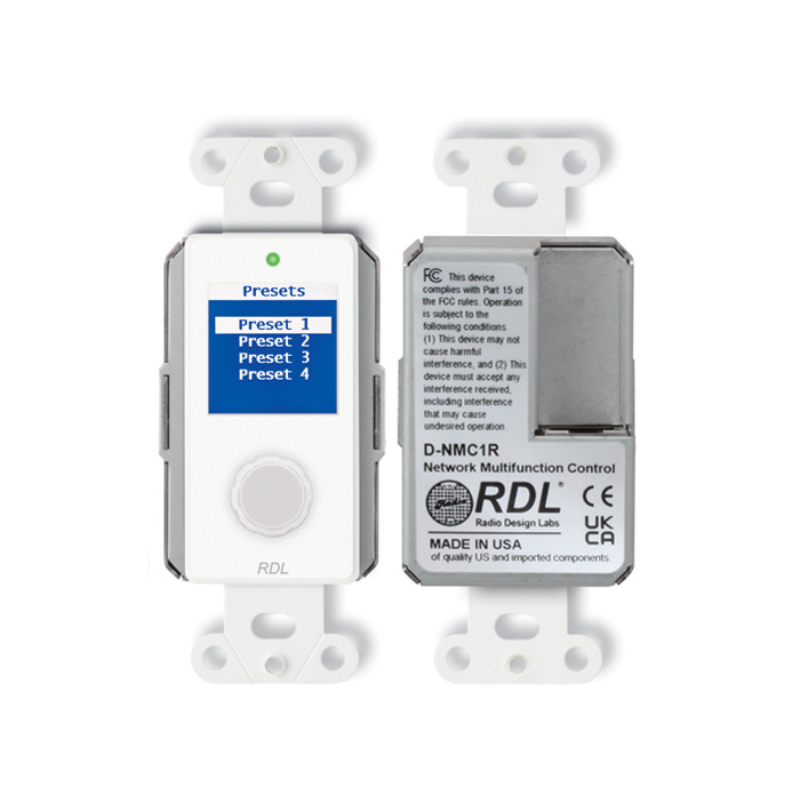

Highlights

• Rotary Encoder Remote Control with Full-Color LCD Display
• Knob Rotation Adjusts Audio Volume Up or Down
• Attenuation Adjustment in 1 dB Steps From 0 to 64 dB
• Each D*-NMC1R Can Control One or Multiple RDL Products
• Multiple D*-NMC1Rs Can Control One or More RDL Products
• Programmable Knob Action Acceleration
• Momentary Knob Push to Mute/Unmute with Screen Indication
• Extended Knob Push to Open Menu
• Menu Accesses Volume, Bluetooth Control or Presets
• Bluetooth® Control to Pause/Resume and Select Track
• Presets Execute Volume, Routings and RDL CONSOLE Commands
• Each Preset Controls One or Multiple Dante Devices
• Selectable Screen Display Color Themes
• Sends Level Commands to Network Devices that Adjust Audio Levels*
• Displays Audio Attenuation Level Reported by a Network Audio Device*
• Compatible with D-RN, DD-RN and Other RDL Products*
• PoE Powered
• Available in Black, White, and Stainless Steel

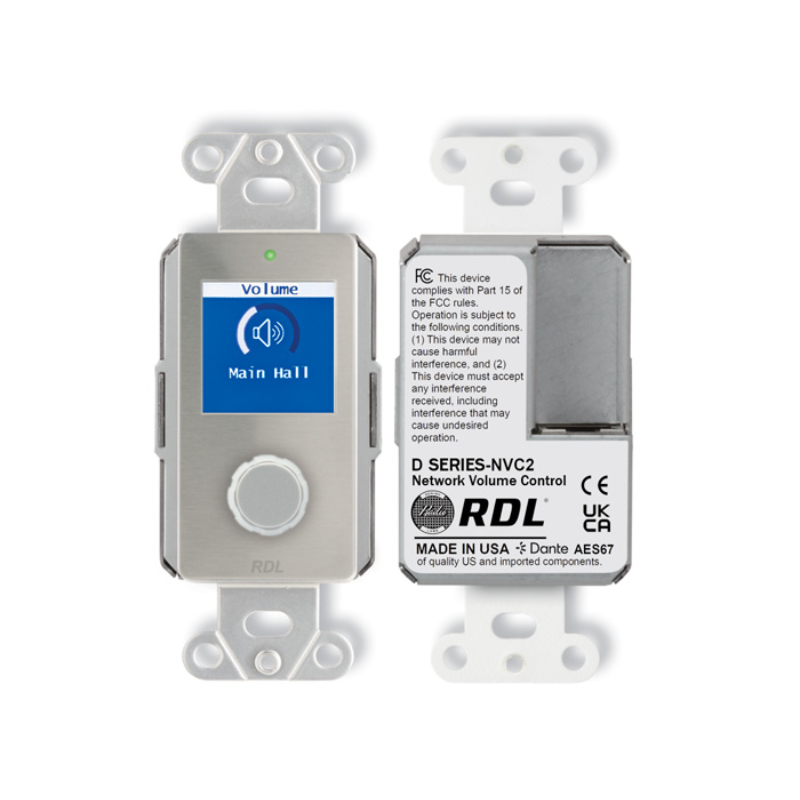

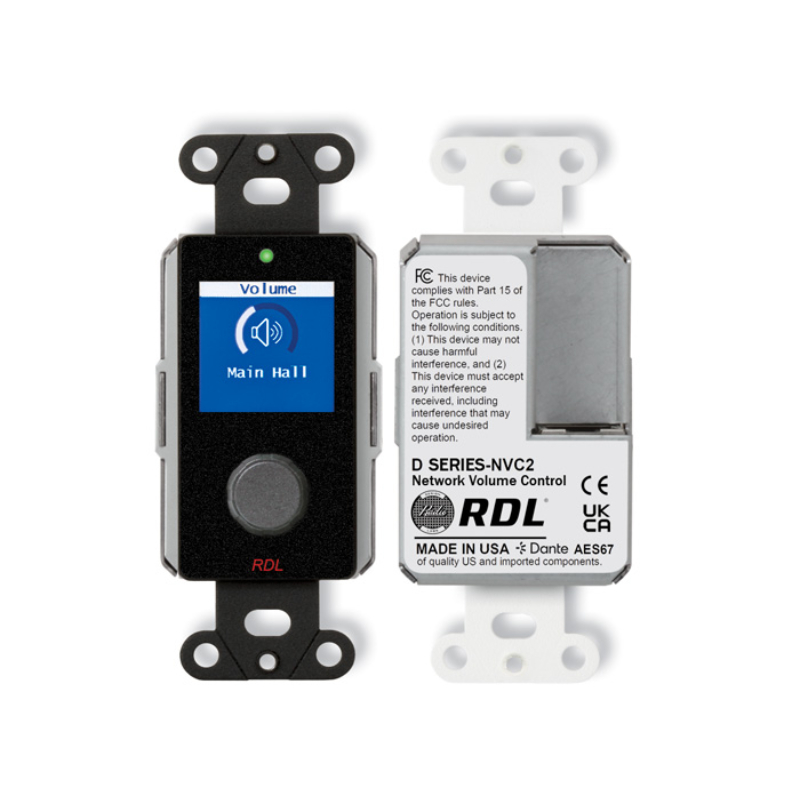

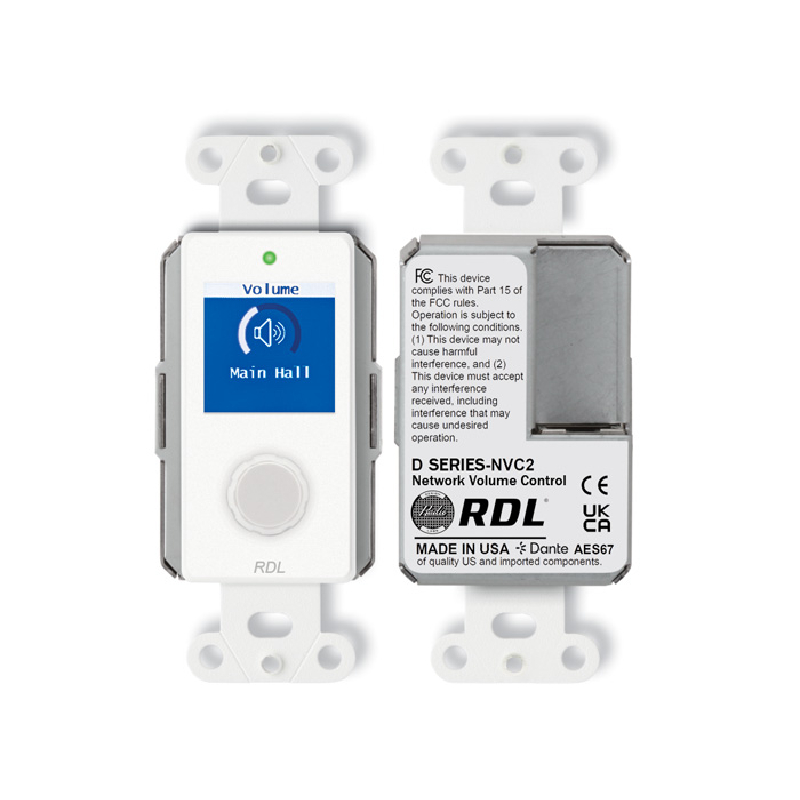

Highlights

• Rotary Encoder Volume Control with Full-Color LCD Display
• Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Attenuation Applied to One or Two Dante/AES67 Audio Channels
• Network Audio Channels are Routed Through the D*-NVC2
• Knob Rotation Adjusts Audio Volume Up or Down
• Attenuation Adjustment in 1 dB Steps From 0 to 63 dB then Mute
• Programmable Knob Action Acceleration
• Momentary Knob Push to Mute/Unmute with Screen Indication
• Extended Knob Push to Open Menu
• Menu Allows User to Adjust Output Channel A, B or Both
• Option to Sum Stereo Input to Mono on Outputs A and B Using RDL CONSOLE
• Installer Sets Menu Default and Defines Channel Names Using RDL CONSOLE
• The D-NVC2 May be Remote Controlled by RDL D-NMC1R or D-NLC1R
• Selectable Screen Display Color Themes Using RDL CONSOLE
• Adjusts Levels of Network Audio Signals Routed Through It*
• Displays Audio Attenuation Level Applied to Routed Signals*
• PoE Powered
• Available in Stainless Steel, Black and White

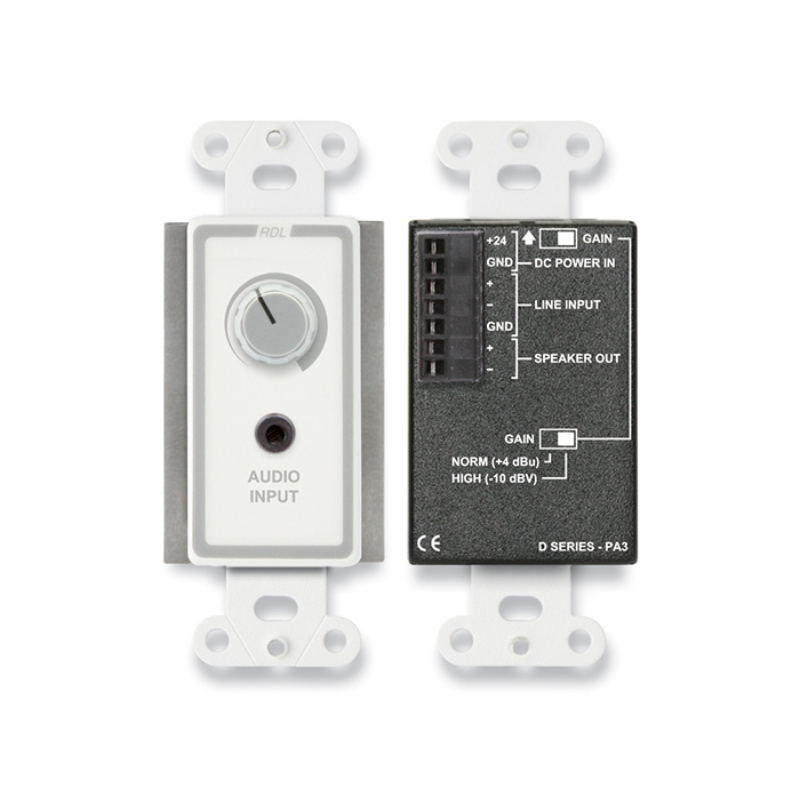

Highlights

• Wall-Mounted Amplifier with 2 Inputs
• Balanced Input on the Rear Panel
• Mini-Jack Input on the Front Panel
• Automatic Switching Between Inputs
• Source Selection Using Solid-State Switching
• Front-Panel Gain Adjustment
• 3.5 Watt RMS Audio Amplifier into 8 Ohms
• 6.5 Watt RMS Audio Amplifier into 4 Ohms
• Output Drives 4 or 8 Ohm Speaker
• Speaker Output on the Rear Panel
• High-Efficiency Class D Operation
• Speaker Output Connection on Detachable Terminal Block
• Ultra-Compact All Metal Construction
• Thermal and Short-Circuit Protection


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text

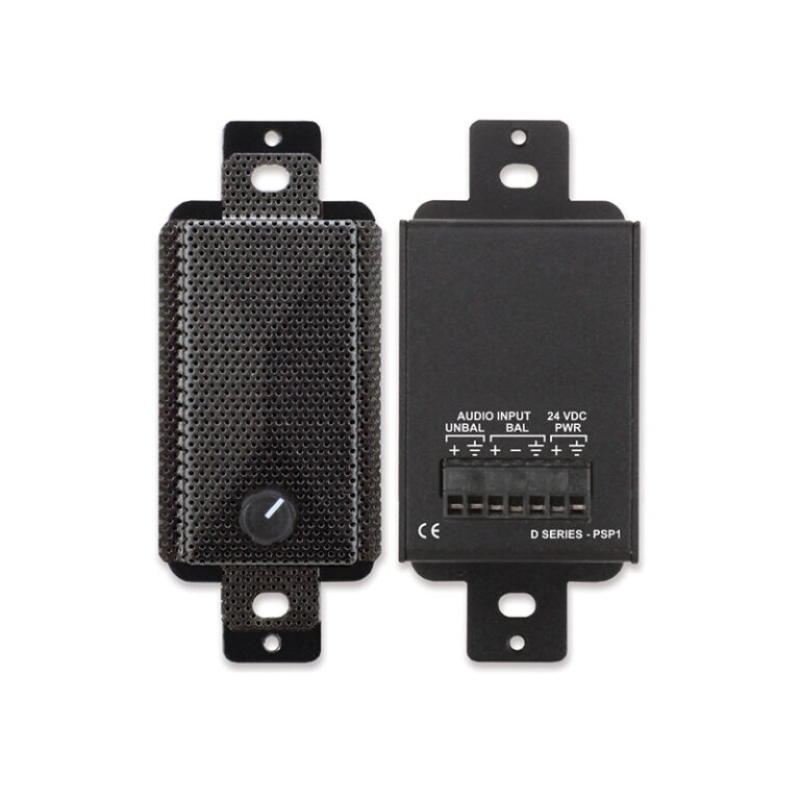

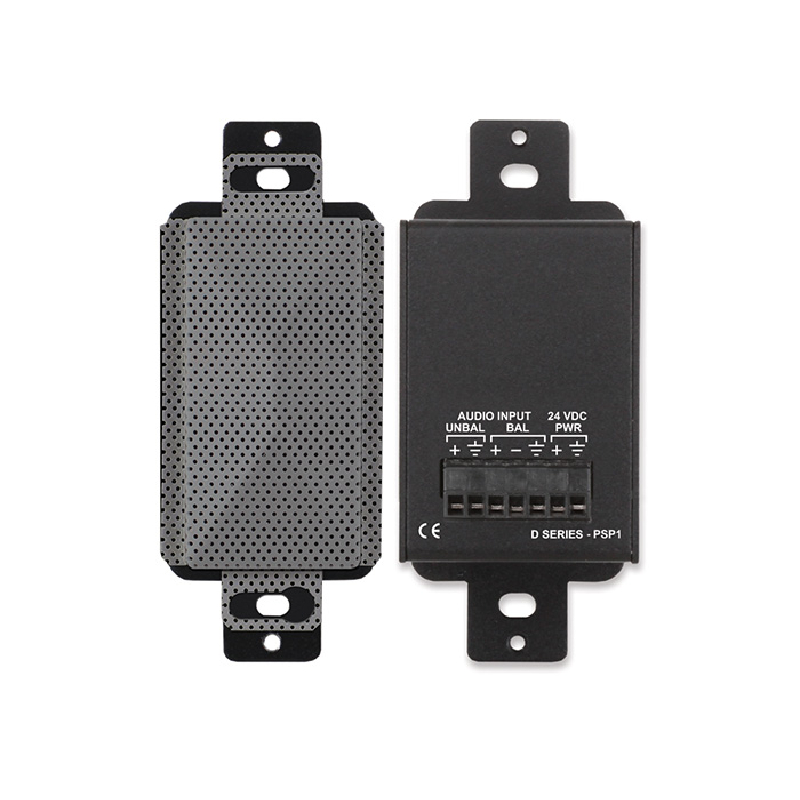

Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Balanced +4 dBu Input on the Rear Panel
• Unbalanced -10 dBV input on the Rear Panel
• Front-Panel Gain Adjustment
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface

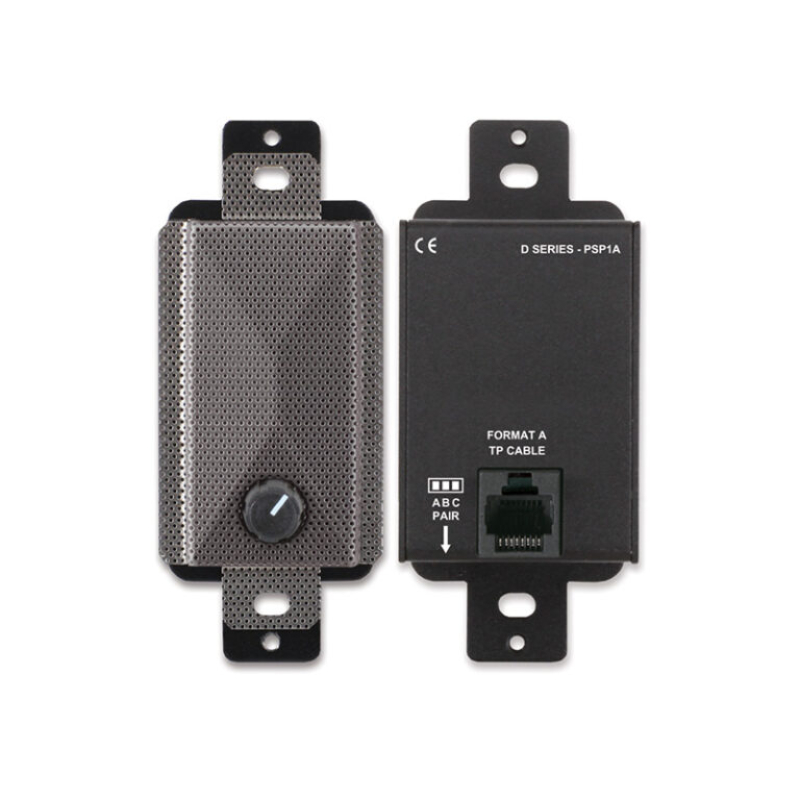

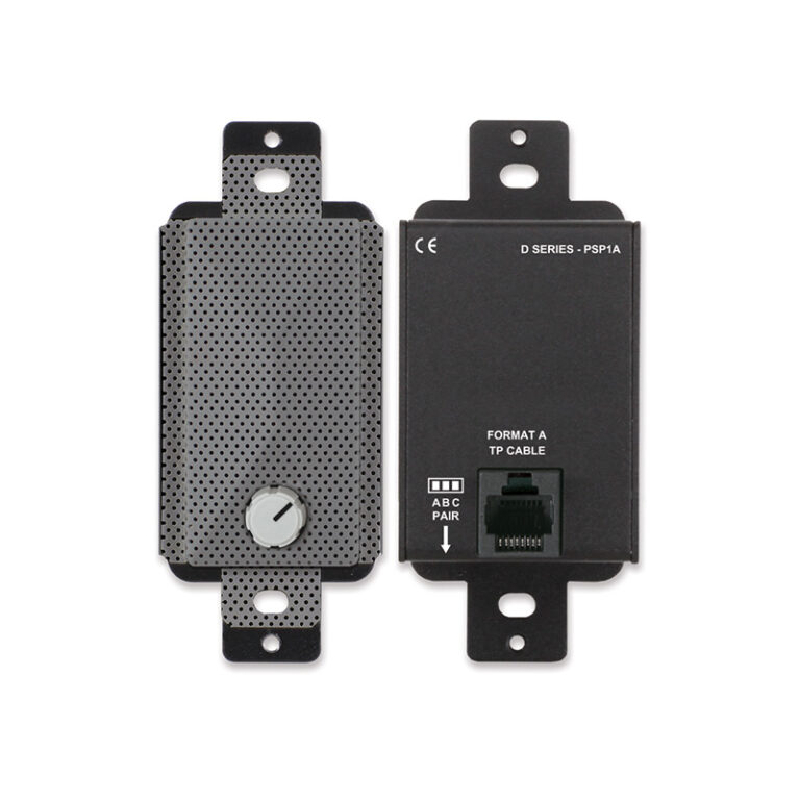

Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Front-Panel Gain Adjustment
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface

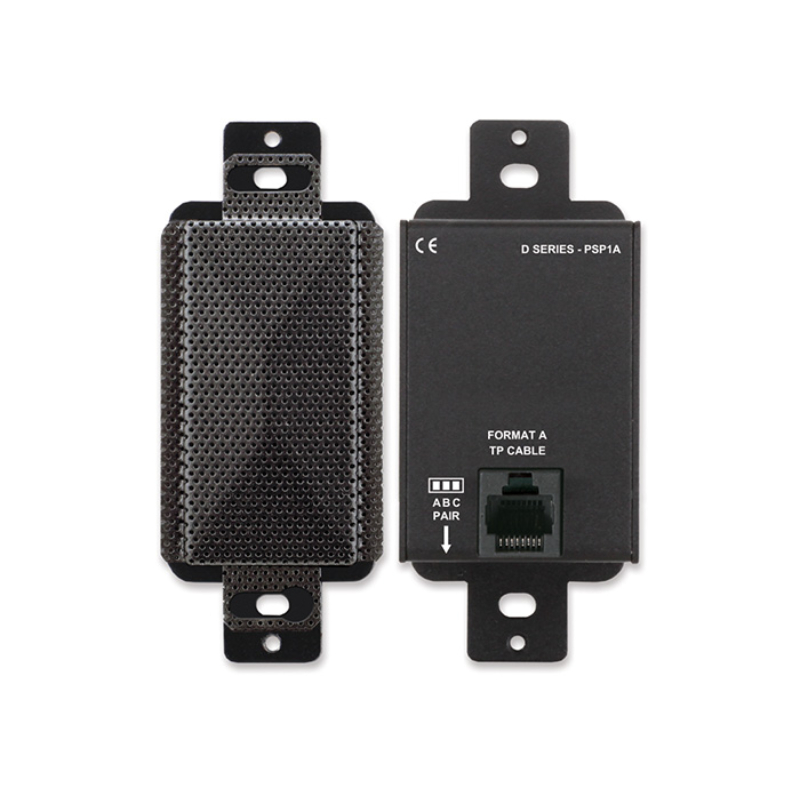

Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Gain Set by the Installer
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface


Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Balanced +4 dBu Input on the Rear Panel
• Unbalanced -10 dBV input on the Rear Panel
• Gain Set by the Installer
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface

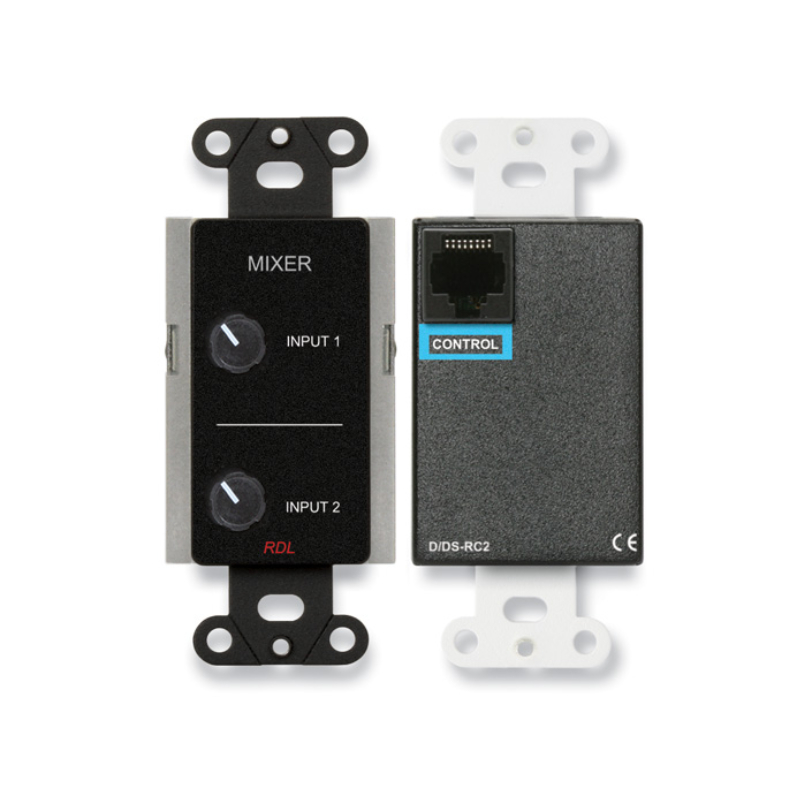

Highlights

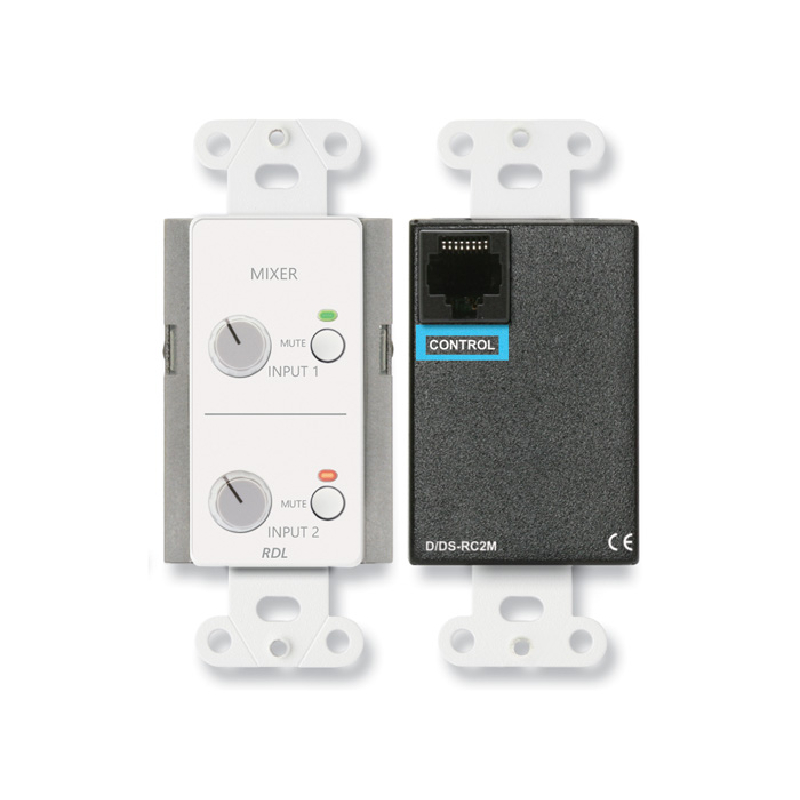

• Two Channel Remote Audio Mixing Control Panel
• Single-Turn Rotary Controls
• Single Control Location
• Available in RDL White/Gray or Stainless Steel
• Direct Control of RDL Mixers with an RJ45 Remote Control Port
• Standard Twisted-Pair Interconnection to Mixer


Highlights

• Two Channel Remote Audio Mixing Control Panel
• Single-Turn Rotary Controls
• Single Control Location
• Available in RDL White/Gray or Stainless Steel
• Direct Control of RDL Mixers with an RJ45 Remote Control Port
• Standard Twisted-Pair Interconnection to Mixer
• Mute Button Toggles Output On and Off
• Red/Green On/Off Mute Indicator


Highlights

• Remote Selection of 2 Audio Sources, Destinations or Functions
• Single-Button Selection for Each Source
• Open-collector Switching of 1 of 2 Module Functions
• 3-wire or 4-wire Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL® Remote Controls


Highlights

• Three Channel Remote Audio Mixing Control Panel
• Single-Turn Rotary Controls
• Single Control Location
• Available in RDL White/Gray or Stainless Steel
• Direct Control of RDL Mixers with an RJ45 Remote Control Port
• Standard Twisted-Pair Interconnection to Mixer


Highlights

• Three Channel Remote Audio Mixing Control Panel
• Single-Turn Rotary Controls
• Single Control Location
• Available in RDL White/Gray or Stainless Steel
• Direct Control of RDL Mixers with an RJ45 Remote Control Port
• Standard Twisted-Pair Interconnection to Mixer
• Mute Button Toggles Output On and Of
• Red/Green On/Off Mute Indicator


Highlights

• Remote Selection of 4 Sources
• Single-Button Selection for Each Source
• LED Indication
• Single or Multiple Control Locations
• Up To Ten Remote Control Locations
• Remote Wiring Using Six Conductors or UTP Cable (CAT5, CAT6)
• Display is Bright During Adjustment
• Display Dims After Adjustment
• Professional Aesthetic Appearance
• Companion to other RDL Remote Controls
• Available in Stainless Steel, Black and White


Highlights

• Remote Selection of 4 Audio Sources
• Single-Button Selection for Each Source
• Remote Selection of Balanced Audio Sources
• 3-pair (or 6 conductor) Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL Remote Controls
• LED Indication


Highlights

• Remote Selection of 4 Audio Sources
• Single-Button Selection for Each Source
• Remote Selection of Unbalanced Audio Sources
• 3-Conductor Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL® Remote Controls


Highlights

• Remote Control for RDL RU-SX4A Audio Selector
• Remote Source Selection Panel
• Visual Display of the Selected Source
• Multiple Control / Indication Locations
• Premium-Quality Remote Panel
• Professional Aesthetic Appearance


Highlights

• Mounts in individual room to control source and level
• Long life pushbuttons
• Music or Local / Combined source selection
• Up / Down pushbutton level adjustment with LED readout
• Multiple RCX 1s may be connected within one room
• Decora® design with all steel panel and rear enclosure


Highlights

• Mounts in individual room to control source and level
• Long life pushbuttons for Music or Local / Combined Selection
• Optical rotary encoder with LED readout for setting audio level
• One or two RCX 2 units may be connected in the same room
• Decora® design with all steel panel and rear enclosure


Highlights

• Rotary Optical Encoder Remote Level Control
• Single or Multiple Control Locations
• Up To Ten Remote Control Locations
• Integral 0 to 10 VDC Ramp Generator
• Visual Level Display of Operating Level
• Display is Bright During Adjustment
• Display Dims After Adjustment
• Powers Up to Last Level Used
• Compatible with All RDL VCA Modules
• Available in Stainless Steel, Black and White


Highlights

• Remote Level Control Panel
• Single-Turn Rotary Control
• Single Control Location
• Direct Connection to RDL VCA Modules
• Discrete Wiring Connections on Detachable Terminal Block
• Available in Standard RDL White, Stainless or Black


Highlights

• Remote Level Control Panel
• Mute Button Toggles Output On and Off
• Red/Green On/Off Mute Indicator
• Single-Turn Rotary Control
• Single Control Location
• Direct Connection to RDL VCA Modules
• Direct Control of Modules with RJ45 VCA Control
• RJ45 or Discrete Wiring Connections on Detachable Terminal Block
• Available in Standard RDL White, Stainless or Black


Highlights

• Rotary Optical Encoder Remote Level Control
• Single or Multiple Control Locations
• Up To Ten Remote Control Locations
• Integral 0 to 10 VDC Ramp Generator
• Visual Level Display of Operating Level
• Display is Bright During Adjustment
• Display Dims After Adjustment
• Powers Up to Last Level or Stored Preset Level
• Compatible with All RDL VCA Modules
• Available in Stainless Steel, Black and White


Highlights

• Remote Level Control Panel
• Pushbutton UP and DOWN
• 10-segment Visual Level Display
• Multiple Control / Indication Locations
• Premium-Quality Remote Panel
• Professional Aesthetic Appearance


Highlights

• Remote Selection of Preset Audio Levels
• Pushbutton Level Selection
• 4 Selectable System Levels, or 3 Levels Plus Off
• LED Indication (Green)
• Premium-Quality Remote Panel
• Professional Aesthetic Appearance


Highlights

• Single-Gang Dante or AES67 Network Interface for Two Audio Outputs
• Two Balanced Outputs on Front Panel XLRs and on Rear Panel Detachable Wiring Block
• Front-Panel XLR Outputs are Software-Selectable for Mic or Line Level
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance


Highlights

• Single-Gang Dante or AES67 Network Interface for One Audio Input and Two Audio Outputs
• Front-Panel Mic/Line Input on Balanced XLR Jack
• Balanced Line Output on Front-Panel Mic/Line XLR and on Rear-Panel Detachable Wiring Block
• Additional Line Output on Rear-Panel Detachable Wiring Block
• Software-Selected Input Gain; Mic: 35 dB, 42 dB or 59 dB; Line: Unity or 12 dB
• P48 Mic Phantom Selected by Software for Mic Input
• Front-Panel XLR Output is Software-Selectable for Mic or Line Level
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance


Highlights

• Single-Gang Dante or AES67 Network Interface for Two Audio Inputs and Two Audio Outputs
• Two Front-Panel Mic/Line Inputs on Balanced XLR Jacks
• Two Balanced Rear-Panel Outputs on Detachable Wiring Block
• Software-Selected Input Gain; Mic: 35 dB, 42 dB or 59 dB; Line: Unity or 12 dB
• P48 Mic Phantom Selected by Software for Mic Inputs
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance


Highlights

• Single-Gang Dante or AES67 Network Interface for Two Audio Inputs and Two Audio Outputs
• One Balanced XLR Mic-Level or Line-Level Input
• One Line-Level Summed-to-Mono Mini-jack Input
• Two Balanced Rear-Panel Outputs on Detachable Wiring Block
• Software-Selected XLR Input Gain; Mic: 35 dB, 42 dB or 59 dB; Line: Unity or 12 dB
• P48 Mic Phantom Selected by Software
• Software-Selected Mini-jack Input Gain: Unity, +5 dB / -5 dB
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance


Highlights

• Remote Selection of ON or OFF
• Single-Button Selection for Each Function
• Open-collector Switching
• 3-wire or 4-wire Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL® Remote Controls
• LED Indication


Highlights

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Volume Adjustment Using a Single-Turn Control
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Line Output Switchable Fixed or Variable
• Variable Output Follows Front-Panel Level Control
• 3.5 Watt RMS Audio Amplifier into 8 Ohms, 6.5 Watts into 4 Ohms
• High-Efficiency Class D Operation
• Thermal and Short-Circuit Protection
• Speaker Output Connection on Detachable Terminal Block
• Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging


Highlights

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging


Highlights

• Panel-Mounted Headphone Amplifier
• Wall-Mounted Headphone Amplifier
• Integral Long-Life VCA Stereo Level Control
• Balanced or Unbalanced Inputs
• Switch-Selectable Input Sensitivity
• Switch-Selectable Mono (Left) or Stereo Operation
• Amplifier To Drive High or Low Impedance Headsets
• Convenience of Decora® Mounting Possibilities


Highlights

• Integral Long-Life VCA Stereo Level Control
• Balanced or Unbalanced Inputs
• Switch-Selectable Input Sensitivity
• Switch-Selectable Mono (Left) or Stereo Operation
• Amplifier to Drive High or Low Impedance Headsets
• Output: Mini-Jack


Highlights

• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Exceptional Audio Quality for Ultra-Compact Size
• Rich Presence and Detailed Clarity
• Hemispherical Dispersion Mounted In Wall or Flat Surface
• Convex Aluminum Cone with Rubber Surround
• Neodymium Motor


Highlights

• 3.5 Watt RMS Audio Amplifier into 8 Ohms
• 6.5 Watt RMS Audio Amplifier into 4 Ohms
• Output Drives 4 or 8 Ohm Speaker
• Setting Level to Minimum Activates Energy-Saving Sleep Mode
• High-Efficiency Class D Operation
• VCA Level Adjustment for Scratch-Free Long Life
• Input and Power Connection on RJ45
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Speaker Output Connection on Detachable Terminal Block
• Ultra-Compact All Metal Construction
• Thermal and Short-Circuit Protection
• Available in White, Black, and Stainless Steel


Highlights

• Balanced Mic or Line Level XLR Output
• Switch-Selectable Output Level on Rear Panel
• Switch Selects which Pair (A, B or C) Feeds the Output
• Signal and Power Pair Pass-through on RJ45s
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Daisy-Chain with Additional Format-A Receivers
• Studio-Quality Precision Active Balanced Circuitry
• Available in White, Black, and Stainless Steel


Highlights

• Two Unbalanced -10 dBV Phono Jack Audio Outputs
• L (Left) Output From Pair B; R (Right) From Pair C
• Signal and Power Pair Pass-Through on RJ45s
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Daisy-Chain with Additional Format-A Receivers
• Studio-Quality Precision Active Balanced Circuitry
• Available in White, Black, and Stainless Steel


Highlights

• Balanced Mic or Line Level XLR Output
• Switch-Selectable Output Level on Rear Panel
• Two Unbalanced -10 dBV Phono Jack Audio Outputs
• XLR From Pair A; L From Pair B; R From Pair C
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Utilizes All Three Format-A Pairs
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Remote Selection from 3 Sources that Correspond to 3 Format-A Pairs
• Single-Button Selection for Each Source
• LED Indication
• Line-Level Balanced Output on Detachable Terminal Block
• Display is Bright During Adjustment
• Display Dims After Adjustment
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Studio-Quality Precision Active Balanced Circuitry
• All-Metal Construction
• Available in Stainless Steel, Black and White


Highlights

• Two Unbalanced -10 dBV Phono Jack Audio Inputs
• Left (L) Input Feeds Pair B; Right (R) Feeds Pair C
• Signal and Power Pair Pass-Through on RJ45 Jacks
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Daisy-Chain with Single-Pair Senders
• Studio-Quality Precision Active Balanced Circuitry
• Available in Stainless Steel, Black, and White


Highlights

• Mini-Jack -10 dBV Stereo Line Input Summed to Mono
• MIC Feeds Pair A; Mini-jack Feeds Pair B
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Utilizes Two Format-A Pairs
• Studio-Quality Precision Active Balanced Circuitry
• Available in Stainless Steel, Black, and White


Highlights

• Balanced Microphone XLR Input with Phantom
• Switch-Selectable Mic Gain on Rear Panel
• Two Unbalanced -10 dBV Phono Jack Line Inputs
• MIC Feeds Pair A; L Feeds Pair B; R Feeds Pair C
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Utilizes All Three Format-A Pairs
• Studio-Quality Precision Active Balanced Circuitry
• Available in Stainless Steel, Black, and White


Highlights

• Stereo Audio Input Combined to Mono Output
• Input on Dual RCA Jacks
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
• Passive Circuitry Does Not Require Power
• Galvanic Isolation through a Studio-Quality Transformer
• Daisy-Chain with Single-Pair or Two-Pair Format-A Senders


Highlights

• Stereo Audio Input Combined to Mono Output
• Input on Mini-Jack
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
• Passive Circuitry Does Not Require Power
• Galvanic Isolation through a Studio-Quality Transformer
• Daisy-Chain with Single-Pair or Two-Pair Format-A Senders


Highlights

• Unbalanced -10 dBV Mini-Jack Audio Input
• Rear-panel RJ45 Input for Connecting Additional TPS8A Senders
• Left (L) Input Feeds Pair B; Right (R) Feeds Pair C
• Signal and Power Pair Pass-Through on RJ45 Jacks
• Remote Powering through Twisted Pair Cable
• Daisy-Chain with Single-Pair Senders
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Stereo Audio Input Combined to Mono Output
• Input on Dual RCA Jacks or Mini-Jack
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Daisy-Chain with Single-Pair or Two-Pair Format-A Senders
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Balanced Microphone XLR Input with Phantom
• Switch-Selectable Mic Gain on Rear Panel
• Two Unbalanced -10 dBV Phono Jack Line Inputs
• MIC Feeds Pair A; L and R Summed to Mono Feed Pair B
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Utilizes Two Format-A Pairs
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Two Balanced Microphone XLR Inputs with P48 Phantom
• Switch-Selectable Mic Gain on Rear Panel
• Gain Selector Provides Fixed 40 dB, 60 dB or Automatic
• Automatic Gain: 60 dB for Dynamic Mics; 40 dB for Condenser Mics
• Output Pair Selector to Feed RJ45 Pair (A, B or C) for Each Preamplifier
• Signal and Power Pairs Pass Through RJ45 Connectors
• Module is Remotely Powered Through RJ45 Connector
• Utilizes Two Format-A Pairs
• Daisy-Chain with a Single-Pair Format-A Sender
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Detachable Terminal Block
• Customizable Front-Panel Text


Highlights

• Wall Mounted Consumer Level Outputs
• Single or Dual Outputs from Mono Source
• Gold Plated Phono Jack Outputs
• Transformer Isolation of the Line Outputs
• Unbalanced Audio Outputs from a Balanced Line Input
• High Attenuation of Reverse Signals


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• Bluetooth Audio Input for Installed Sound System
• Intuitive Single Button Pairing with LED Status Indication
• Special Software Not Required for Module Setup
• Customize the Module ID Name and Programming Password through the Bluetooth Connection
• Sends Received Bluetooth Audio to RDL Format-A Receivers
• Mono Summed or Stereo Audio Input Mode is Switch-Selectable on Rear Panel
• Rear-Panel Switch Selects which RJ45 Pair (A, B or C) is Fed in Mono Summed Mode
• Daisy-Chain up to Three D SERIES-BT1A modules to One Format-A Receiver in Mono Mode
• Remotely Powered through Twisted Pair Cable
• Signal and Power Pair Pass-Through on RJ45 Jacks
• Requirements:
• To complete a Bluetooth setup using the D SERIES-BT1A Wall-Mounted Bluetooth® Audio Format-A Interface, at least one compatible Format-A receiver and its recommended power supply must be used.


Highlights

• Bluetooth Audio Input for Dante or AES67 Networked System
• Bluetooth Stereo or Mono Sum Feeds Two Network Channels
• Return Audio Talk Channel from Dante Network to Bluetooth Connected Device
• Intuitive Single Button Bluetooth Pairing with LED Status Indication
• Bluetooth Functions are Controllable in RDL CONSOLE Software
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Bluetooth Functions are Controllable using Compatible RDL Remote Controls
• Controllable Functions Include Pairing/Un-pairing, Media Source Track Selection and Level
• Bluetooth Track Title and Artist Data are Multicast on the Network to Compatible Devices
• Customize the Module ID Name, Settings and Mono/Stereo Mode using RDL CONSOLE Software
• Module is PoE Powered


Highlights

• Stereo Inputs to Mono Output
• Stereo Inputs on RCA Jacks and Stereo Mini-Jack
• Unbalanced to Balanced Conversion Without Gain
• Transformer Isolation for Unbalanced Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Line-Level Output to Feed 10 kΩ Equipment Inputs
• Output Connections on Detachable Terminal Block
• Mix Stereo Inputs to Mono Balanced
• Available in RDL White/Gray (D-CIJ3)
• Available in Stainless Steel (DS-CIJ3)


Highlights

• Stereo Inputs to Stereo Outputs
• Stereo Inputs on RCA Jacks and Stereo Mini-Jack
• Unbalanced to Balanced Conversion Without Gain
• Transformer Isolation for Unbalanced Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Line-Level Output to Feed 10 kΩ Equipment Inputs
• Output Connections on Detachable Terminal Block
• Available in RDL White/Gray (D-CIJ3D)
• Available in Stainless Steel (DS-CIJ3D)


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• Headphone Amplifier with User Level Control
• Output on Standard Mini-Jack
• Mounts in a Wall or Cabinet
• Input and Power Connection on RJ45
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• RJ45 Loop-Thru for Connecting Additional Modules
• Protected by Automatically Resetting Fuse
• Decora® Design with All Steel Panel and Rear Enclosure
• Available in White, Black, and Stainless Steel


Highlights

• Wall-Mounted Amplifier with 2 Outputs
• Balanced Input on the Rear Panel
• Speaker Output on the Rear Panel
• Mini-Jack Headphone Output on the Front Panel
• Setting to Turn Off Power Amplifier upon Headphone Connection
• Amplifier Muting Using Solid-State Switching
• Single Gain Adjustment for the Speaker and Headphone Amplifiers
• 3.5 Watt RMS Audio Amplifier into 8 Ohms
• 6.5 Watt RMS Audio Amplifier into 4 Ohms
• Output Drives 4 or 8 Ohm Speaker
• High-Efficiency Class D Operation
• Speaker Output Connection on Detachable Terminal Block
• Ultra-Compact All Metal Construction
• Thermal and Short-Circuit Protection


Highlights

• Wall Mounted Microphone Input Panel
• XLR Input Connector with Gold Contacts
• Barrier Block Wiring Connections
• Ground-Lift Terminals on Barrier Block


Highlights

• Wall Mounted Line-Level Audio Input Panel
• Gold Plated Phono Jacks
• Hum Cancellation on Unbalanced Line Inputs
• Transformer Isolation for Unbalanced Line Inputs
• Balanced Output for Unbalanced Line Inputs


Highlights

• Wall Mounted Audio Inputs
• XLR Microphone Input with Gold Contacts
• Gold Plated Phono Jack Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Transformer Isolation for Unbalanced Line Inputs
• Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs


Highlights

• Wall Mounted Audio Inputs
• XLR Microphone Input with Gold Contacts
• Mini-Jack Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Transformer Isolation for Unbalanced Line Inputs
• Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs


Highlights

• Stereo Audio Input to Stereo Audio Output
• Stereo Input on Mini-Jack
• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• Rotary Encoder Remote Control with LED Rotary String Display
• Knob Rotation Adjusts Audio Volume Up or Down
• Attenuation Adjustment in 1 dB Steps From 0 to 64 dB
• Each D*-NLC1R Can Control One or Multiple RDL Products
• Multiple D*-NLC1Rs Can Control One or More RDL Products
• Programmable Knob Action Acceleration
• Momentary Knob Push to Mute/Unmute with LED Indication
• Compatible with D-RN, DD-RN and Other RDL Products*
• Sends Level Commands to Network Devices that Adjust Audio Levels*
• Displays Audio Attenuation Level Reported by a Network Audio Device*
• PoE Powered
• Available in Black, White, and Stainless Steel


Highlights

• Rotary Encoder Volume Control with Full-Color LCD Display
• Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Attenuation Applied to One or Two Dante/AES67 Audio Channels
• Network Audio Channels are Routed Through the D*-NVC2
• Knob Rotation Adjusts Audio Volume Up or Down
• Attenuation Adjustment in 1 dB Steps From 0 to 63 dB then Mute
• Programmable Knob Action Acceleration
• Momentary Knob Push to Mute/Unmute with Screen Indication
• Extended Knob Push to Open Menu
• Menu Allows User to Adjust Output Channel A, B or Both
• Option to Sum Stereo Input to Mono on Outputs A and B Using RDL CONSOLE
• Installer Sets Menu Default and Defines Channel Names USING RDL CONSOLE
• The D-NVC2 May be Remote Controlled by RDL D-NMC1R or D-NLC1R
• Selectable Screen Display Color Themes Using RDL CONSOLE
• Adjusts Levels of Network Audio Signals Routed Through It*
• Displays Audio Attenuation Level Applied to Routed Signals*
• PoE Powered
• Available in Stainless Steel, Black and White


Highlights

• Wall-Mounted Amplifier with 2 Inputs
• Balanced Input on the Rear Panel
• Mini-Jack Input on the Front Panel
• Automatic Switching Between Inputs
• Source Selection Using Solid-State Switching
• Front-Panel Gain Adjustment
• 3.5 Watt RMS Audio Amplifier into 8 Ohms
• 6.5 Watt RMS Audio Amplifier into 4 Ohms
• Output Drives 4 or 8 Ohm Speaker
• Speaker Output on the Rear Panel
• High-Efficiency Class D Operation
• Speaker Output Connection on Detachable Terminal Block
• Ultra-Compact All Metal Construction
• Thermal and Short-Circuit Protection


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Balanced +4 dBu Input on the Rear Panel
• Unbalanced -10 dBV input on the Rear Panel
• Front-Panel Gain Adjustment
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface


Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Front-Panel Gain Adjustment
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface


Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Gain Set by the Installer
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface


Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Balanced +4 dBu Input on the Rear Panel
• Unbalanced -10 dBV input on the Rear Panel
• Gain Set by the Installer
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface


Highlights

• Remote Audio Mixing Control Panel
• Single-Turn Rotary Controls
• Single Control Location
• Available in RDL White, Black or Stainless Steel
• Direct Control of RDL Mixers with an RJ45 Remote Control Port
• Standard Twisted-Pair Interconnection to Mixer
• Mute Button Toggles Output On and Off (Muting Models)
• Red/Green On/Off Mute Indicator (Muting Models)


Highlights

• Two Channel Remote Audio Mixing Control Panel
• Single-Turn Rotary Controls
• Single Control Location
• Available in RDL White/Gray or Stainless Steel
• Direct Control of RDL Mixers with an RJ45 Remote Control Port
• Standard Twisted-Pair Interconnection to Mixer
• Mute Button Toggles Output On and Off
• Red/Green On/Off Mute Indicator


Highlights

• Remote Selection of 2 Audio Sources, Destinations or Functions
• Single-Button Selection for Each Source
• Open-collector Switching of 1 of 2 Module Functions
• 3-wire or 4-wire Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL® Remote Controls


Highlights

• Three Channel Remote Audio Mixing Control Panel
• Single-Turn Rotary Controls
• Single Control Location
• Available in RDL White/Gray or Stainless Steel
• Direct Control of RDL Mixers with an RJ45 Remote Control Port
• Standard Twisted-Pair Interconnection to Mixer


Highlights

• Remote Selection of 4 Sources
• Single-Button Selection for Each Source
• LED Indication
• Single or Multiple Control Locations
• Up To Ten Remote Control Locations
• Remote Wiring Using Six Conductors or UTP Cable (CAT5, CAT6)
• Display is Bright During Adjustment
• Display Dims After Adjustment
• Professional Aesthetic Appearance
• Companion to other RDL Remote Controls
• Available in Stainless Steel, Black and White


Highlights

• Remote Selection of 4 Audio Sources
• Single-Button Selection for Each Source
• Remote Selection of Balanced Audio Sources
• 3-pair (or 6 conductor) Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL Remote Controls
• LED Indication


Highlights

• Remote Selection of 4 Audio Sources
• Single-Button Selection for Each Source
• Remote Selection of Unbalanced Audio Sources
• 3-Conductor Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL® Remote Controls


Highlights

• Remote Control for RDL RU-SX4A Audio Selector
• Remote Source Selection Panel
• Visual Display of the Selected Source
• Multiple Control / Indication Locations
• Premium-Quality Remote Panel
• Professional Aesthetic Appearance


Highlights

• Mounts in individual room to control source and level
• Long life pushbuttons
• Music or Local / Combined source selection
• Up / Down pushbutton level adjustment with LED readout
• Multiple RCX 1s may be connected within one room
• Decora® design with all steel panel and rear enclosure


Highlights

• Mounts in individual room to control source and level
• Long life pushbuttons for Music or Local / Combined Selection
• Optical rotary encoder with LED readout for setting audio level
• One or two RCX 2 units may be connected in the same room
• Decora® design with all steel panel and rear enclosure


Highlights

• Rotary Optical Encoder Remote Level Control
• Single or Multiple Control Locations
• Up To Ten Remote Control Locations
• Integral 0 to 10 VDC Ramp Generator
• Visual Level Display of Operating Level
• Display is Bright During Adjustment
• Display Dims After Adjustment
• Powers Up to Last Level Used
• Compatible with All RDL VCA Modules
• Available in Stainless Steel, Black and White


Highlights

• Remote Level Control Panel
• Single-Turn Rotary Control
• Single Control Location
• Direct Connection to RDL VCA Modules
• Discrete Wiring Connections on Detachable Terminal Block
• Available in Standard RDL White, Stainless or Black


Highlights

• Remote Level Control Panel
• Mute Button Toggles Output On and Off
• Red/Green On/Off Mute Indicator
• Single-Turn Rotary Control
• Single Control Location
• Direct Connection to RDL VCA Modules
• Direct Control of Modules with RJ45 VCA Control
• RJ45 or Discrete Wiring Connections on Detachable Terminal Block
• Available in Standard RDL White, Stainless or Black


Highlights

• Rotary Optical Encoder Remote Level Control
• Single or Multiple Control Locations
• Up To Ten Remote Control Locations
• Integral 0 to 10 VDC Ramp Generator
• Visual Level Display of Operating Level
• Display is Bright During Adjustment
• Display Dims After Adjustment
• Powers Up to Last Level or Stored Preset Level
• Compatible with All RDL VCA Modules
• Available in Stainless Steel, Black and White


Highlights

• Remote Level Control Panel
• Pushbutton UP and DOWN
• 10-segment Visual Level Display
• Multiple Control / Indication Locations
• Premium-Quality Remote Panel
• Professional Aesthetic Appearance


Highlights

• Remote Selection of Preset Audio Levels
• Pushbutton Level Selection
• 4 Selectable System Levels, or 3 Levels Plus Off
• LED Indication (Green)
• Premium-Quality Remote Panel
• Professional Aesthetic Appearance


Highlights

• Single-Gang Dante or AES67 Network Interface for Two Audio Outputs
• Two Balanced Outputs on Front Panel XLRs and on Rear Panel Detachable Wiring Block
• Front-Panel XLR Outputs are Software-Selectable for Mic or Line Level
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance


Highlights

• Single-Gang Dante or AES67 Network Interface for One Audio Input and Two Audio Outputs
• Front-Panel Mic/Line Input on Balanced XLR Jack
• Balanced Line Output on Front-Panel Mic/Line XLR and on Rear-Panel Detachable Wiring Block
• Additional Line Output on Rear-Panel Detachable Wiring Block
• Software-Selected Input Gain; Mic: 35 dB, 42 dB or 59 dB; Line: Unity or 12 dB
• P48 Mic Phantom Selected by Software for Mic Input
• Front-Panel XLR Output is Software-Selectable for Mic or Line Level
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance


Highlights

• Single-Gang Dante or AES67 Network Interface for Two Audio Inputs and Two Audio Outputs
• Two Front-Panel Mic/Line Inputs on Balanced XLR Jacks
• Two Balanced Rear-Panel Outputs on Detachable Wiring Block
• Software-Selected Input Gain; Mic: 35 dB, 42 dB or 59 dB; Line: Unity or 12 dB
• P48 Mic Phantom Selected by Software for Mic Inputs
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance


Highlights

• Single-Gang Dante or AES67 Network Interface for Two Audio Inputs and Two Audio Outputs
• One Balanced XLR Mic-Level or Line-Level Input
• One Line-Level Summed-to-Mono Mini-jack Input
• Two Balanced Rear-Panel Outputs on Detachable Wiring Block
• Software-Selected XLR Input Gain; Mic: 35 dB, 42 dB or 59 dB; Line: Unity or 12 dB
• P48 Mic Phantom Selected by Software
• Software-Selected Mini-jack Input Gain: Unity, +5 dB / -5 dB
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance


Highlights

• Remote Selection of ON or OFF
• Single-Button Selection for Each Function
• Open-collector Switching
• 3-wire or 4-wire Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL® Remote Controls
• LED Indication


Highlights

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Volume Adjustment Using a Single-Turn Control
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Line Output Switchable Fixed or Variable
• Variable Output Follows Front-Panel Level Control
• 3.5 Watt RMS Audio Amplifier into 8 Ohms, 6.5 Watts into 4 Ohms
• High-Efficiency Class D Operation
• Thermal and Short-Circuit Protection
• Speaker Output Connection on Detachable Terminal Block
• Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging


Highlights

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging


Highlights

• Panel-Mounted Headphone Amplifier
• Wall-Mounted Headphone Amplifier
• Integral Long-Life VCA Stereo Level Control
• Balanced or Unbalanced Inputs
• Switch-Selectable Input Sensitivity
• Switch-Selectable Mono (Left) or Stereo Operation
• Amplifier To Drive High or Low Impedance Headsets
• Convenience of Decora® Mounting Possibilities


Highlights

• Integral Long-Life VCA Stereo Level Control
• Balanced or Unbalanced Inputs
• Switch-Selectable Input Sensitivity
• Switch-Selectable Mono (Left) or Stereo Operation
• Amplifier to Drive High or Low Impedance Headsets
• Output: Mini-Jack


Highlights

• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Exceptional Audio Quality for Ultra-Compact Size
• Rich Presence and Detailed Clarity
• Hemispherical Dispersion Mounted In Wall or Flat Surface
• Convex Aluminum Cone with Rubber Surround
• Neodymium Motor


Highlights

• 3.5 Watt RMS Audio Amplifier into 8 Ohms
• 6.5 Watt RMS Audio Amplifier into 4 Ohms
• Output Drives 4 or 8 Ohm Speaker
• Setting Level to Minimum Activates Energy-Saving Sleep Mode
• High-Efficiency Class D Operation
• VCA Level Adjustment for Scratch-Free Long Life
• Input and Power Connection on RJ45
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Speaker Output Connection on Detachable Terminal Block
• Ultra-Compact All Metal Construction
• Thermal and Short-Circuit Protection
• Available in White, Black, and Stainless Steel


Highlights

• Balanced Mic or Line Level XLR Output
• Switch-Selectable Output Level on Rear Panel
• Switch Selects which Pair (A, B or C) Feeds the Output
• Signal and Power Pair Pass-through on RJ45s
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Daisy-Chain with Additional Format-A Receivers
• Studio-Quality Precision Active Balanced Circuitry
• Available in White, Black and Stainless Steel


Highlights

• Two Unbalanced -10 dBV Phono Jack Audio Outputs
• L (Left) Output From Pair B; R (Right) From Pair C
• Signal and Power Pair Pass-Through on RJ45s
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Daisy-Chain with Additional Format-A Receivers
• Studio-Quality Precision Active Balanced Circuitry
• Available in White, Black, and Stainless Steel


Highlights

• Balanced Mic or Line Level XLR Output
• Switch-Selectable Output Level on Rear Panel
• Two Unbalanced -10 dBV Phono Jack Audio Outputs
• XLR From Pair A; L From Pair B; R From Pair C
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Utilizes All Three Format-A Pairs
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Remote Selection from 3 Sources that Correspond to 3 Format-A Pairs
• Single-Button Selection for Each Source
• LED Indication
• Line-Level Balanced Output on Detachable Terminal Block
• Display is Bright During Adjustment
• Display Dims After Adjustment
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Studio-Quality Precision Active Balanced Circuitry
• All-Metal Construction
• Available in Stainless Steel, Black and White


Highlights

• Two Unbalanced -10 dBV Phono Jack Audio Inputs
• Left (L) Input Feeds Pair B; Right (R) Feeds Pair C
• Signal and Power Pair Pass-Through on RJ45 Jacks
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Daisy-Chain with Single-Pair Senders
• Studio-Quality Precision Active Balanced Circuitry
• Available in Stainless Steel, Black, and White


Highlights

• Mini-Jack -10 dBV Stereo Line Input Summed to Mono
• MIC Feeds Pair A; Mini-jack Feeds Pair B
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Utilizes Two Format-A Pairs
• Studio-Quality Precision Active Balanced Circuitry
• Available in Stainless Steel, Black, and White


Highlights

• Balanced Microphone XLR Input with Phantom
• Switch-Selectable Mic Gain on Rear Panel
• Two Unbalanced -10 dBV Phono Jack Line Inputs
• MIC Feeds Pair A; L Feeds Pair B; R Feeds Pair C
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Utilizes All Three Format-A Pairs
• Studio-Quality Precision Active Balanced Circuitry
• Available in Stainless Steel, Black, and White


Highlights

• Unbalanced -10 dBV Mini-Jack Audio Input
• Rear-panel RJ45 Input for Connecting Additional TPS8A Senders
• Left (L) Input Feeds Pair B; Right (R) Feeds Pair C
• Signal and Power Pair Pass-Through on RJ45 Jacks
• Remote Powering through Twisted Pair Cable
• Daisy-Chain with Single-Pair Senders
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Stereo Audio Input Combined to Mono Output
• Input on Dual RCA Jacks or Mini-Jack
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Daisy-Chain with Single-Pair or Two-Pair Format-A Senders
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Balanced Microphone XLR Input with Phantom
• Switch-Selectable Mic Gain on Rear Panel
• Two Unbalanced -10 dBV Phono Jack Line Inputs
• MIC Feeds Pair A; L and R Summed to Mono Feed Pair B
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Utilizes Two Format-A Pairs
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Two Balanced Microphone XLR Inputs with P48 Phantom
• Switch-Selectable Mic Gain on Rear Panel
• Gain Selector Provides Fixed 40 dB, 60 dB or Automatic
• Automatic Gain: 60 dB for Dynamic Mics; 40 dB for Condenser Mics
• Output Pair Selector to Feed RJ45 Pair (A, B or C) for Each Preamplifier
• Signal and Power Pairs Pass Through RJ45 Connectors
• Module is Remotely Powered Through RJ45 Connector
• Utilizes Two Format-A Pairs
• Daisy-Chain with a Single-Pair Format-A Sender
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• Dante Network Interface for Two Audio Inputs and Two Audio Outputs
• Inputs and Outputs on XLR Jacks on front panels
• Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
• Converts Two Dante Network Audio Signals to Mic or Line Level
• Special Software Not Required for Module Setup
• Each Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Each Output is Switch Selectable for Mic or Line
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Two Audio Inputs and Two Audio Outputs
• Inputs on Front-Panel XLR Jacks; Outputs on Rear-Panel Terminal Block
• Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
• Converts Two Dante Network Audio Signals to Line Level
• Special Software Not Required for Module Setup
• Each Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Each Output is Switch Selectable for Balanced +4 dBu or Unbalanced -10 dBV
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Two Audio Inputs and Two Audio Outputs
• XLR and Mini-jack Front-Panel Inputs; Outputs on Rear-Panel Terminal Block
• Converts One Mic or Line and One Consumer Line Audio Source to Dante Network Channels
• Converts Two Dante Network Audio Signals to Line Level
• Special Software Not Required for Module Setup
• XLR Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Mini-jack -10 dBV Input is Summed to Mono
• Each Output is Switch Selectable for Balanced +4 dBu or Unbalanced -10 dBV
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Four Audio Inputs and Two Audio Outputs
• Four XLR Front-Panel Inputs
• Converts Four Standard XLR Mic or Line Audio Sources to Dante Network Channels
• Each XLR Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Converts Two Dante Network Audio Signals to Line Level
• Rear Panel Outputs Switch Selectable Balanced +4 dBu or Unbalanced -10 dBV
• Special Software Not Required for Module Setup
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Bluetooth Audio Input for Dante Networked System
• Consumer Audio Inputs on Mini-Jack or RCA Jacks
• Return Audio Talk Channel from Dante Network to Bluetooth Connected Device
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Consumer Audio Outputs on Mini-Jack
• Balanced and Unbalanced Audio Line Outputs on Rear Panel
• Intuitive Single Button Bluetooth Pairing with LED Status Indication
• Bluetooth Settings Configurable via RDL Console 2.0 Software
• Customize the Module ID Name and Settings via RDL Console 2.0 Software
• Mono or Stereo Mode for Audio Inputs is Switch-Selectable Behind Cover Plate
• Module is PoE Powered


Highlights

• Dante Network Interface for Two Audio Inputs and Two Audio Outputs
• Inputs and Outputs on XLR Jacks on front panels
• Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
• Converts Two Dante Network Audio Signals to Mic or Line Level
• Special Software Not Required for Module Setup
• Each Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Each Output is Switch Selectable for Mic or Line
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Two Audio Inputs and Two Audio Outputs
• Inputs on Front-Panel XLR Jacks; Outputs on Rear-Panel Terminal Block
• Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
• Converts Two Dante Network Audio Signals to Line Level
• Special Software Not Required for Module Setup
• Each Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Each Output is Switch Selectable for Balanced +4 dBu or Unbalanced -10 dBV
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Two Audio Inputs and Two Audio Outputs
• Inputs on Front-Panel XLR Jacks; Outputs on Rear-Panel Terminal Block
• Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
• Converts Two Dante Network Audio Signals to Line Level
• Special Software Not Required for Module Setup
• Each Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Each Output is Switch Selectable for Balanced +4 dBu or Unbalanced -10 dBV
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Four Audio Inputs and Four Audio Outputs
• One Mini-jack and Two XLR Front-Panel Inputs
• One Mini-jack Front-Panel Output; Two Outputs on Rear-Panel Terminal Block
• Converts Two Standard XLR Mic or Line Audio Sources to Dante Network Channels
• Each XLR Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Mini-jack -10 dBV Input is Switch Selectable Stereo or Summed to Mono
• Converts Four Dante Network Audio Signals to Line Level
• Mini-jack -10 dBV Output is Switch Selectable Stereo or Mono (Left Channel)
• Rear Panel Outputs Switch Selectable Balanced +4 dBu or Unbalanced -10 dBV
• Special Software Not Required for Module Setup
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Four Audio Inputs and Two Audio Outputs
• Four XLR Front-Panel Inputs
• Converts Four Standard XLR Mic or Line Audio Sources to Dante Network Channels
• Each XLR Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Converts Two Dante Network Audio Signals to Line Level
• Rear Panel Outputs Switch Selectable Balanced +4 dBu or Unbalanced -10 dBV
• Special Software Not Required for Module Setup
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Bluetooth Audio Input for Dante Networked System
• Consumer Audio Inputs on Mini-Jack or RCA Jacks
• Return Audio Talk Channel from Dante Network to Bluetooth Connected Device
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Consumer Audio Outputs on Mini-Jack
• Balanced and Unbalanced Audio Line Outputs on Rear Panel
• Intuitive Single Button Bluetooth Pairing with LED Status Indication
• Bluetooth Settings Configurable via RDL Console 2.0 Software
• Customize the Module ID Name and Settings via RDL Console 2.0 Software
• Mono or Stereo Mode for Audio Inputs is Switch-Selectable Behind Cover Plate
• Module is PoE Powered


Highlights

• Dante Network Interface for Two Audio Inputs and Two Audio Outputs
• Inputs and Outputs on XLR Jacks on front panels
• Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
• Converts Two Dante Network Audio Signals to Mic or Line Level
• Special Software Not Required for Module Setup
• Each Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Each Output is Switch Selectable for Mic or Line
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Two Audio Inputs and Two Audio Outputs
• Inputs on Front-Panel XLR Jacks; Outputs on Rear-Panel Terminal Block
• Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
• Converts Two Dante Network Audio Signals to Line Level
• Special Software Not Required for Module Setup
• Each Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Each Output is Switch Selectable for Balanced +4 dBu or Unbalanced -10 dBV
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Two Audio Inputs and Two Audio Outputs
• XLR and Mini-jack Front-Panel Inputs; Outputs on Rear-Panel Terminal Block
• Converts One Mic or Line and One Consumer Line Audio Source to Dante Network Channels
• Converts Two Dante Network Audio Signals to Line Level
• Special Software Not Required for Module Setup
• XLR Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Mini-jack -10 dBV Input is Summed to Mono
• Each Output is Switch Selectable for Balanced +4 dBu or Unbalanced -10 dBV
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Four Audio Inputs and Four Audio Outputs
• One Mini-jack and Two XLR Front-Panel Inputs
• One Mini-jack Front-Panel Output; Two Outputs on Rear-Panel Terminal Block
• Converts Two Standard XLR Mic or Line Audio Sources to Dante Network Channels
• Each XLR Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Mini-jack -10 dBV Input is Switch Selectable Stereo or Summed to Mono
• Converts Four Dante Network Audio Signals to Line Level
• Mini-jack -10 dBV Output is Switch Selectable Stereo or Mono (Left Channel)
• Rear Panel Outputs Switch Selectable Balanced +4 dBu or Unbalanced -10 dBV
• Special Software Not Required for Module Setup
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Four Audio Inputs and Two Audio Outputs
• Four XLR Front-Panel Inputs
• Converts Four Standard XLR Mic or Line Audio Sources to Dante Network Channels
• Each XLR Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Converts Two Dante Network Audio Signals to Line Level
• Rear Panel Outputs Switch Selectable Balanced +4 dBu or Unbalanced -10 dBV
• Special Software Not Required for Module Setup
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Bluetooth Audio Input for Dante Networked System
• Consumer Audio Inputs on Mini-Jack or RCA Jacks
• Return Audio Talk Channel from Dante Network to Bluetooth Connected Device
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Consumer Audio Outputs on Mini-Jack
• Balanced and Unbalanced Audio Line Outputs on Rear Panel
• Intuitive Single Button Bluetooth Pairing with LED Status Indication
• Bluetooth Settings Configurable via RDL Console 2.0 Software
• Customize the Module ID Name and Settings via RDL Console 2.0 Software
• Mono or Stereo Mode for Audio Inputs is Switch-Selectable Behind Cover Plate
• Module is PoE Powered


Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Balanced +4 dBu Input on the Rear Panel
• Unbalanced -10 dBV input on the Rear Panel
• Front-Panel Gain Adjustment
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface


Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Front-Panel Gain Adjustment
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface


Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Gain Set by the Installer
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface


Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Balanced +4 dBu Input on the Rear Panel
• Unbalanced -10 dBV input on the Rear Panel
• Gain Set by the Installer
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface


Highlights

• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Exceptional Audio Quality for Ultra-Compact Size
• Rich Presence and Detailed Clarity
• Hemispherical Dispersion Mounted In Wall or Flat Surface
• Convex Aluminum Cone with Rubber Surround
• Neodymium Motor


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Detachable Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Detachable Terminal Block
• Customizable Front-Panel Text


Highlights

• Stereo Audio Inputs to Stereo Audio Output
• Stereo Inputs on RCA Jacks and Stereo Mini-Jack
• Unbalanced Output on Detachable Terminal Block
• Video Monitor Pass-Through Panel Connector
• Available in Stainless Steel


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• Bluetooth Audio Input for Installed Sound System
• Intuitive Single Button Pairing with LED Status Indication
• Special Software Not Required for Module Setup
• Customize the Module ID Name and Programming Password through the Bluetooth Connection
• Sends Received Bluetooth Audio to RDL Format-A Receivers
• Mono Summed or Stereo Audio Input Mode is Switch-Selectable on Rear Panel
• Rear-Panel Switch Selects which RJ45 Pair (A, B or C) is Fed in Mono Summed Mode
• Daisy-Chain up to Three D SERIES-BT1A modules to One Format-A Receiver in Mono Mode
• Remotely Powered through Twisted Pair Cable
• Signal and Power Pair Pass-Through on RJ45 Jacks
Requirements:
• To complete a Bluetooth setup using the D SERIES-BT1A Wall-Mounted Bluetooth® Audio Format-A Interface, at least one compatible Format-A receiver and its recommended power supply must be used.


Highlights

• Bluetooth Audio Input for Dante or AES67 Networked System
• Bluetooth Stereo or Mono Sum Feeds Two Network Channels
• Return Audio Talk Channel from Dante Network to Bluetooth Connected Device
• Intuitive Single Button Bluetooth Pairing with LED Status Indication
• Bluetooth Functions are Controllable in RDL CONSOLE Software
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Bluetooth Functions are Controllable using Compatible RDL Remote Controls
• Controllable Functions Include Pairing/Un-pairing, Media Source Track Selection and Level
• Bluetooth Track Title and Artist Data are Multicast on the Network to Compatible Devices
• Customize the Module ID Name, Settings and Mono/Stereo Mode using RDL CONSOLE Software
• Module is PoE Powered


Highlights

• Stereo Inputs to Mono Output
• Stereo Inputs on RCA Jacks and Stereo Mini-Jack
• Unbalanced to Balanced Conversion Without Gain
• Transformer Isolation for Unbalanced Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Line-Level Output to Feed 10 kΩ Equipment Inputs
• Output Connections on Detachable Terminal Block
• Mix Stereo Inputs to Mono Balanced
• Available in RDL White/Gray (D-CIJ3)
• Available in Stainless Steel (DS-CIJ3)


Highlights

• Stereo Inputs to Stereo Outputs
• Stereo Inputs on RCA Jacks and Stereo Mini-Jack
• Unbalanced to Balanced Conversion Without Gain
• Transformer Isolation for Unbalanced Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Line-Level Output to Feed 10 kΩ Equipment Input
• Output Connections on Detachable Terminal Block
• Available in RDL White/Gray (D-CIJ3D)
• Available in Stainless Steel (DS-CIJ3D)


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• Headphone Amplifier with User Level Control
• Output on Standard Mini-Jack
• Mounts in a Wall or Cabinet
• Input and Power Connection on RJ45
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• RJ45 Loop-Thru for Connecting Additional Modules
• Protected by Automatically Resetting Fuse
• Decora® Design with All Steel Panel and Rear Enclosure
• Available in White, Black, and Stainless Steel


Highlights

• Wall-Mounted Amplifier with 2 Outputs
• Balanced Input on the Rear Panel
• Speaker Output on the Rear Panel
• Mini-Jack Headphone Output on the Front Panel
• Setting to Turn Off Power Amplifier upon Headphone Connection
• Amplifier Muting Using Solid-State Switching
• Single Gain Adjustment for the Speaker and Headphone Amplifiers
• 3.5 Watt RMS Audio Amplifier into 8 Ohms
• 6.5 Watt RMS Audio Amplifier into 4 Ohms
• Output Drives 4 or 8 Ohm Speaker
• High-Efficiency Class D Operation
• Speaker Output Connection on Detachable Terminal Block
• Ultra-Compact All Metal Construction
• Thermal and Short-Circuit Protection


Highlights

• Wall Mounted Microphone Input Panel
• XLR Input Connector with Gold Contacts
• Barrier Block Wiring Connections
• Ground-Lift Terminals on Barrier Block


Highlights

• Wall Mounted Line-Level Audio Input Panel
• Gold Plated Phono Jacks
• Hum Cancellation on Unbalanced Line Inputs
• Transformer Isolation for Unbalanced Line Inputs
• Balanced Output for Unbalanced Line Inputs


Highlights

• Wall Mounted Audio Inputs
• XLR Microphone Input with Gold Contacts
• Gold Plated Phono Jack Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Transformer Isolation for Unbalanced Line Inputs
• Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs


Highlights

• Wall Mounted Audio Inputs
• XLR Microphone Input with Gold Contacts
• Mini-Jack Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Transformer Isolation for Unbalanced Line Inputs
• Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs


Highlights

• Stereo Audio Input to Stereo Audio Output
• Stereo Input on Mini-Jack
• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• Rotary Encoder Remote Control with LED Rotary String Display
• Knob Rotation Adjusts Audio Volume Up or Down
• Attenuation Adjustment in 1 dB Steps From 0 to 64 dB
• Each D*-NLC1R Can Control One or Multiple RDL Products
• Multiple D*-NLC1Rs Can Control One or More RDL Products
• Programmable Knob Action Acceleration
• Momentary Knob Push to Mute/Unmute with LED Indication
• Compatible with D-RN, DD-RN and Other RDL Products*
• Sends Level Commands to Network Devices that Adjust Audio Levels*
• Displays Audio Attenuation Level Reported by a Network Audio Device*
• PoE Powered
• Available in Black, White, and Stainless Steel


Highlights

• Rotary Encoder Remote Control with Full-Color LCD Display
• Knob Rotation Adjusts Audio Volume Up or Down
• Attenuation Adjustment in 1 dB Steps From 0 to 64 dB
• Each D*-NMC1R Can Control One or Multiple RDL Products
• Multiple D*-NMC1Rs Can Control One or More RDL Products
• Programmable Knob Action Acceleration
• Momentary Knob Push to Mute/Unmute with Screen Indication
• Extended Knob Push to Open Menu
• Menu Accesses Volume, Bluetooth Control or Presets
• Bluetooth® Control to Pause/Resume and Select Track
• Presets Execute Volume, Routings and RDL CONSOLE Commands
• Each Preset Controls One or Multiple Dante Devices
• Selectable Screen Display Color Themes
• Sends Level Commands to Network Devices that Adjust Audio Levels*
• Displays Audio Attenuation Level Reported by a Network Audio Device*
• Compatible with D-RN, DD-RN and Other RDL Products*
• PoE Powered
• Available in Black, White, and Stainless Steel


Highlights

• Rotary Encoder Volume Control with Full-Color LCD Display
• Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Attenuation Applied to One or Two Dante/AES67 Audio Channels
• Network Audio Channels are Routed Through the D*-NVC2
• Knob Rotation Adjusts Audio Volume Up or Down
• Attenuation Adjustment in 1 dB Steps From 0 to 63 dB then Mute
• Programmable Knob Action Acceleration
• Momentary Knob Push to Mute/Unmute with Screen Indication
• Extended Knob Push to Open Menu
• Menu Allows User to Adjust Output Channel A, B or Both
• Option to Sum Stereo Input to Mono on Outputs A and B Using RDL CONSOLE
• Installer Sets Menu Default and Defines Channel Names Using RDL CONSOLE
• The D-NVC2 May be Remote Controlled by RDL D-NMC1R or D-NLC1R
• Selectable Screen Display Color Themes Using RDL CONSOLE
• Adjusts Levels of Network Audio Signals Routed Through It*
• Displays Audio Attenuation Level Applied to Routed Signals*
• PoE Powered
• Available in Stainless Steel, Black and White


Highlights

• Wall-Mounted Amplifier with 2 Inputs
• Balanced Input on the Rear Panel
• Mini-Jack Input on the Front Panel
• Automatic Switching Between Inputs
• Source Selection Using Solid-State Switching
• Front-Panel Gain Adjustment
• 3.5 Watt RMS Audio Amplifier into 8 Ohms
• 6.5 Watt RMS Audio Amplifier into 4 Ohms
• Output Drives 4 or 8 Ohm Speaker
• Speaker Output on the Rear Panel
• High-Efficiency Class D Operation
• Speaker Output Connection on Detachable Terminal Block
• Ultra-Compact All Metal Construction
• Thermal and Short-Circuit Protection


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Customizable Front-Panel Text


Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Balanced +4 dBu Input on the Rear Panel
• Unbalanced -10 dBV input on the Rear Panel
• Front-Panel Gain Adjustment
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface


Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Front-Panel Gain Adjustment
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface


Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Gain Set by the Installer
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface


Highlights

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Balanced +4 dBu Input on the Rear Panel
• Unbalanced -10 dBV input on the Rear Panel
• Front-Panel Gain Adjustment
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface


Highlights

• Two Channel Remote Audio Mixing Control Panel
• Single-Turn Rotary Controls
• Single Control Location
• Available in RDL White/Gray or Stainless Steel
• Direct Control of RDL Mixers with an RJ45 Remote Control Port
• Standard Twisted-Pair Interconnection to Mixer


Highlights

• Two Channel Remote Audio Mixing Control Panel
• Single-Turn Rotary Controls
• Single Control Location
• Available in RDL White/Gray or Stainless Steel
• Direct Control of RDL Mixers with an RJ45 Remote Control Port
• Standard Twisted-Pair Interconnection to Mixer
• Mute Button Toggles Output On and Off
• Red/Green On/Off Mute Indicator


Highlights

• Remote Selection of 2 Audio Sources, Destinations or Functions
• Single-Button Selection for Each Source
• Open-collector Switching of 1 of 2 Module Functions
• 3-wire or 4-wire Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL® Remote Controls


Highlights

• Three Channel Remote Audio Mixing Control Panel
• Single-Turn Rotary Controls
• Single Control Location
• Available in RDL White/Gray or Stainless Steel
• Direct Control of RDL Mixers with an RJ45 Remote Control Port
• Standard Twisted-Pair Interconnection to Mixer


Highlights

• Three Channel Remote Audio Mixing Control Panel
• Single-Turn Rotary Controls
• Single Control Location
• Available in RDL White/Gray or Stainless Steel
• Direct Control of RDL Mixers with an RJ45 Remote Control Port
• Standard Twisted-Pair Interconnection to Mixer
• Mute Button Toggles Output On and Of
• Red/Green On/Off Mute Indicator


Highlights

• Remote Selection of 4 Sources
• Single-Button Selection for Each Source
• LED Indication
• Single or Multiple Control Locations
• Up To Ten Remote Control Locations
• Remote Wiring Using Six Conductors or UTP Cable (CAT5, CAT6)
• Display is Bright During Adjustment
• Display Dims After Adjustment
• Professional Aesthetic Appearance
• Companion to other RDL Remote Controls
• Available in Stainless Steel, Black and White


Highlights

• Remote Selection of 4 Audio Sources
• Single-Button Selection for Each Source
• Remote Selection of Balanced Audio Sources
• 3-pair (or 6 conductor) Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL Remote Controls
• LED Indication


Highlights

• Remote Selection of 4 Audio Sources
• Single-Button Selection for Each Source
• Remote Selection of Unbalanced Audio Sources
• 3-Conductor Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL® Remote Controls


Highlights

• Remote Control for RDL RU-SX4A Audio Selector
• Remote Source Selection Panel
• Visual Display of the Selected Source
• Multiple Control / Indication Locations
• Premium-Quality Remote Panel
• Professional Aesthetic Appearance


Highlights

• Mounts in individual room to control source and level
• Long life pushbuttons
• Music or Local / Combined source selection
• Up / Down pushbutton level adjustment with LED readout
• Multiple RCX 1s may be connected within one room
• Decora® design with all steel panel and rear enclosure


Highlights

• Mounts in individual room to control source and level
• Long life pushbuttons for Music or Local / Combined Selection
• Optical rotary encoder with LED readout for setting audio level
• One or two RCX 2 units may be connected in the same room
• Decora® design with all steel panel and rear enclosure


Highlights

• Rotary Optical Encoder Remote Level Control
• Single or Multiple Control Locations
• Up To Ten Remote Control Locations
• Integral 0 to 10 VDC Ramp Generator
• Visual Level Display of Operating Level
• Display is Bright During Adjustment
• Display Dims After Adjustment
• Powers Up to Last Level Used
• Compatible with All RDL VCA Modules
• Available in Stainless Steel, Black and White


Highlights

• Remote Level Control Panel
• Single-Turn Rotary Control
• Single Control Location
• Direct Connection to RDL VCA Modules
• Discrete Wiring Connections on Detachable Terminal Block
• Available in Standard RDL White, Stainless or Black


Highlights

• Remote Level Control Panel
• Mute Button Toggles Output On and Off
• Red/Green On/Off Mute Indicator
• Single-Turn Rotary Control
• Single Control Location
• Direct Connection to RDL VCA Modules
• Direct Control of Modules with RJ45 VCA Control
• RJ45 or Discrete Wiring Connections on Detachable Terminal Block
• Available in Standard RDL White, Stainless or Black


Highlights

• Rotary Optical Encoder Remote Level Control
• Single or Multiple Control Locations
• Up To Ten Remote Control Locations
• Integral 0 to 10 VDC Ramp Generator
• Visual Level Display of Operating Level
• Display is Bright During Adjustment
• Display Dims After Adjustment
• Powers Up to Last Level or Stored Preset Level
• Compatible with All RDL VCA Modules
• Available in Stainless Steel, Black and White


Highlights

• Remote Level Control Panel
• Pushbutton UP and DOWN
• 10-segment Visual Level Display
• Multiple Control / Indication Locations
• Premium-Quality Remote Panel
• Professional Aesthetic Appearance


Highlights

• Remote Selection of Preset Audio Levels
• Pushbutton Level Selection
• 4 Selectable System Levels, or 3 Levels Plus Off
• LED Indication (Green)
• Premium-Quality Remote Panel
• Professional Aesthetic Appearance


Highlights

• Single-Gang Dante or AES67 Network Interface for Two Audio Outputs
• Two Balanced Outputs on Front Panel XLRs and on Rear Panel Detachable Wiring Block
• Front-Panel XLR Outputs are Software-Selectable for Mic or Line Level
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance


Highlights

• Single-Gang Dante or AES67 Network Interface for One Audio Input and Two Audio Outputs
• Front-Panel Mic/Line Input on Balanced XLR Jack
• Balanced Line Output on Front-Panel Mic/Line XLR and on Rear-Panel Detachable Wiring Block
• Additional Line Output on Rear-Panel Detachable Wiring Block
• Software-Selected Input Gain; Mic: 35 dB, 42 dB or 59 dB; Line: Unity or 12 dB
• P48 Mic Phantom Selected by Software for Mic Input
• Front-Panel XLR Output is Software-Selectable for Mic or Line Level
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance


Highlights

• Single-Gang Dante or AES67 Network Interface for Two Audio Inputs and Two Audio Outputs
• Two Front-Panel Mic/Line Inputs on Balanced XLR Jacks
• Two Balanced Rear-Panel Outputs on Detachable Wiring Block
• Software-Selected Input Gain; Mic: 35 dB, 42 dB or 59 dB; Line: Unity or 12 dB
• P48 Mic Phantom Selected by Software for Mic Inputs
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance


Highlights

• Single-Gang Dante or AES67 Network Interface for Two Audio Inputs and Two Audio Outputs
• One Balanced XLR Mic-Level or Line-Level Input
• One Line-Level Summed-to-Mono Mini-jack Input
• Two Balanced Rear-Panel Outputs on Detachable Wiring Block
• Software-Selected XLR Input Gain; Mic: 35 dB, 42 dB or 59 dB; Line: Unity or 12 dB
• P48 Mic Phantom Selected by Software
• Software-Selected Mini-jack Input Gain: Unity, +5 dB / -5 dB
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance


Highlights

• Remote Selection of ON or OFF
• Single-Button Selection for Each Function
• Open-collector Switching
• 3-wire or 4-wire Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL® Remote Controls
• LED Indication


Highlights

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Volume Adjustment Using a Single-Turn Control
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Line Output Switchable Fixed or Variable
• Variable Output Follows Front-Panel Level Control
• 3.5 Watt RMS Audio Amplifier into 8 Ohms, 6.5 Watts into 4 Ohms
• High-Efficiency Class D Operation
• Thermal and Short-Circuit Protection
• Speaker Output Connection on Detachable Terminal Block
• Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging


Highlights

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging


Highlights

• Panel-Mounted Headphone Amplifier
• Wall-Mounted Headphone Amplifier
• Integral Long-Life VCA Stereo Level Control
• Balanced or Unbalanced Inputs
• Switch-Selectable Input Sensitivity
• Switch-Selectable Mono (Left) or Stereo Operation
• Amplifier To Drive High or Low Impedance Headsets
• Convenience of Decora® Mounting Possibilities


Highlights

• Integral Long-Life VCA Stereo Level Control
• Balanced or Unbalanced Inputs
• Switch-Selectable Input Sensitivity
• Switch-Selectable Mono (Left) or Stereo Operation
• Amplifier to Drive High or Low Impedance Headsets
• Output: Mini-Jack


Highlights

• 3.5 Watt RMS Audio Amplifier into 8 Ohms
• 6.5 Watt RMS Audio Amplifier into 4 Ohms
• Output Drives 4 or 8 Ohm Speaker
• Setting Level to Minimum Activates Energy-Saving Sleep Mode
• High-Efficiency Class D Operation
• VCA Level Adjustment for Scratch-Free Long Life
• Input and Power Connection on RJ45
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Speaker Output Connection on Detachable Terminal Block
• Ultra-Compact All Metal Construction
• Thermal and Short-Circuit Protection
• Available in White, Black, and Stainless Steel


Highlights

• Balanced Mic or Line Level XLR Output
• Switch-Selectable Output Level on Rear Panel
• Switch Selects which Pair (A, B or C) Feeds the Output
• Signal and Power Pair Pass-through on RJ45s
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Daisy-Chain with Additional Format-A Receivers
• Studio-Quality Precision Active Balanced Circuitry
• Available in White, Black, and Stainless Steel


Highlights

• Two Unbalanced -10 dBV Phono Jack Audio Outputs
• L (Left) Output From Pair B; R (Right) From Pair C
• Signal and Power Pair Pass-Through on RJ45s
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Daisy-Chain with Additional Format-A Receivers
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Balanced Mic or Line Level XLR Output
• Switch-Selectable Output Level on Rear Panel
• Two Unbalanced -10 dBV Phono Jack Audio Outputs
• XLR From Pair A; L From Pair B; R From Pair C
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Utilizes All Three Format-A Pairs
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Remote Selection from 3 Sources that Correspond to 3 Format-A Pairs
• Single-Button Selection for Each Source
• LED Indication
• Line-Level Balanced Output on Detachable Terminal Block
• Display is Bright During Adjustment
• Display Dims After Adjustment
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Studio-Quality Precision Active Balanced Circuitry
• All-Metal Construction
• Available in Stainless Steel, Black and White


Highlights

• Two Unbalanced -10 dBV Phono Jack Audio Inputs
• Left (L) Input Feeds Pair B; Right (R) Feeds Pair C
• Signal and Power Pair Pass-Through on RJ45 Jacks
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Daisy-Chain with Single-Pair Senders
• Studio-Quality Precision Active Balanced Circuitry
• Available in Stainless Steel, Black, and White


Highlights

• Mini-Jack -10 dBV Stereo Line Input Summed to Mono
• MIC Feeds Pair A; Mini-jack Feeds Pair B
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Utilizes Two Format-A Pairs
• Studio-Quality Precision Active Balanced Circuitry
• Available in Stainless Steel, Black, and White


Highlights

• Balanced Microphone XLR Input with Phantom
• Switch-Selectable Mic Gain on Rear Panel
• Two Unbalanced -10 dBV Phono Jack Line Inputs
• MIC Feeds Pair A; L Feeds Pair B; R Feeds Pair C
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Utilizes All Three Format-A Pairs
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Stereo Audio Input Combined to Mono Output
• Input on Dual RCA Jacks
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
• Passive Circuitry Does Not Require Power
• Galvanic Isolation through a Studio-Quality Transformer
• Daisy-Chain with Single-Pair or Two-Pair Format-A Senders


Highlights

• Stereo Audio Input Combined to Mono Output
• Input on Mini-Jack
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
• Passive Circuitry Does Not Require Power
• Galvanic Isolation through a Studio-Quality Transformer
• Daisy-Chain with Single-Pair or Two-Pair Format-A Senders


Highlights

• Unbalanced -10 dBV Mini-Jack Audio Input
• Rear-panel RJ45 Input for Connecting Additional TPS8A Senders
• Left (L) Input Feeds Pair B; Right (R) Feeds Pair C
• Signal and Power Pair Pass-Through on RJ45 Jacks
• Remote Powering through Twisted Pair Cable
• Daisy-Chain with Single-Pair Senders
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Stereo Audio Input Combined to Mono Output
• Input on Dual RCA Jacks or Mini-Jack
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Daisy-Chain with Single-Pair or Two-Pair Format-A Senders
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Balanced Microphone XLR Input with Phantom
• Switch-Selectable Mic Gain on Rear Panel
• Two Unbalanced -10 dBV Phono Jack Line Inputs
• MIC Feeds Pair A; L and R Summed to Mono Feed Pair B
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED Indicates Module is Powered
• Utilizes Two Format-A Pairs
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Two Balanced Microphone XLR Inputs with P48 Phantom
• Switch-Selectable Mic Gain on Rear Panel
• Gain Selector Provides Fixed 40 dB, 60 dB or Automatic
• Automatic Gain: 60 dB for Dynamic Mics; 40 dB for Condenser Mics
• Output Pair Selector to Feed RJ45 Pair (A, B or C) for Each Preamplifier
• Signal and Power Pairs Pass Through RJ45 Connectors
• Module is Remotely Powered Through RJ45 Connector
• Utilizes Two Format-A Pairs
• Daisy-Chain with a Single-Pair Format-A Sender
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• All-Steel Construction
• Compatible with Decora®-Style Mounting Accessories
• Rear Panel Connections on Terminal Block
• Customizable Front-Panel Text


Highlights

• Twelve Individually Selectable Audio Inputs
• Selectable Operating MODE Provides Interlocking Source Selection or Mixing Multiple Sources
• LED Above Each Button to Show Selected Source
• VU Ballistic LED Above the Button for Each Input
• Calibrated Front-Panel Meter Display
• Front-Panel Speaker and Headphone Jack
• Front-Panel VCA Control for Headphone and Speaker Output Levels
• Internal 4.5 W RMS Power Amplifier and Speaker
• Audio Inputs and Outputs on Detachable Terminal Blocks


Highlights

• Pushbutton Level Remote Control
• LED String Display
• Mute Button with LED Indicator
• Programmable Operation and Attenuation Steps
• Configurable for Buttons Always Enabled or Auto-Locking
• May Operate as a Controller or a Satellite
• Selectable as Satellite to a D-NMC1 or D-NLC1 Controller
• Compatible with DD-RN and Other RDL Products*
• Sends Level Commands to Network Devices that Adjust Audio Levels*
• Displays Audio Attenuation Level Reported by a Network Audio Device*
• PoE Powered
• Available in Stainless Steel, Black and White


Highlights

• Pushbutton Remote Control
• Full-Color LCD Display
• Individual or Group Level Adjustment
• Mute Button with Screen Indication
• Up to 8 Source Selections with Dante Routings
• Sets or Clears Routings for Any Dante Device
• Fully Programmable Functions and Names
• Enable, Disable or Auto-Lock Each Function
• Capability to Set Gains and Levels
• May Operate as a Controller or Satellite
• Selectable Screen Display Themes
• Compatible with DD-RN and Other RDL Products*
• Sends Level Commands to Network Devices that Adjust Audio Levels*
• Displays Audio Attenuation Level Reported by a Network Audio Device*
• PoE Powered
• Available in Stainless Steel, Black, and White


Highlights

• Pushbutton Level Remote Control
• LED String Display
• Mute Button with LED Indicator
• Programmable Operation and Attenuation Steps
• Configurable for Buttons Always Enabled or Auto-Locking
• May Operate as a Controller or a Satellite
• Selectable as Satellite to a D-NMC1 or D-NLC1 Controller
• Compatible with DD-RN and Other RDL Products*
• Sends Level Commands to Network Devices that Adjust Audio Levels*
• Displays Audio Attenuation Level Reported by a Network Audio Device*
• PoE Powered
• Available in Stainless Steel, Black and White


Highlights

• Pushbutton Remote Control
• Full-Color LCD Display
• Individual or Group Level Adjustment
• Mute Button with Screen Indication
• Up to 8 Source Selections with Dante Routings
• Sets or Clears Routings for Any Dante Device
• Fully Programmable Functions and Names
• Enable, Disable or Auto-Lock Each Function
• Capability to Set Gains and Levels
• May Operate as a Controller or Satellite
• Selectable Screen Display Themes
• Compatible with DD-RN and Other RDL Products*
• Sends Level Commands to Network Devices that Adjust Audio Levels*
• Displays Audio Attenuation Level Reported by a Network Audio Device*
• PoE Powered
• Available in Stainless Steel, Black, and White


Highlights

• Rotary Encoder Remote Control with Full-Color LCD Display
• Knob Rotation Adjusts Audio Volume Up or Down
• Attenuation Adjustment in 1 dB Steps From 0 to 64 dB
• Each D*-NMC1R Can Control One or Multiple RDL Products
• Multiple D*-NMC1Rs Can Control One or More RDL Products
• Programmable Knob Action Acceleration
• Momentary Knob Push to Mute/Unmute with Screen Indication
• Extended Knob Push to Open Menu
• Menu Accesses Volume, Bluetooth Control or Presets
• Bluetooth® Control to Pause/Resume and Select Track
• Presets Execute Volume, Routings and RDL CONSOLE Commands
• Each Preset Controls One or Multiple Dante Devices
• Selectable Screen Display Color Themes
• Sends Level Commands to Network Devices that Adjust Audio Levels*
• Displays Audio Attenuation Level Reported by a Network Audio Device*
• Compatible with D-RN, DD-RN and Other RDL Products*
• PoE Powered
• Available in Black, White, and Stainless Steel


Highlights

• Pushbutton Level Remote Control
• LED String Display
• Mute Button with LED Indicator
• Programmable Operation and Attenuation Steps
• Configurable for Buttons Always Enabled or Auto-Locking
• May Operate as a Controller or a Satellite
• Selectable as Satellite to a D-NMC1 or D-NLC1 Controller
• Compatible with DD-RN and Other RDL Products*
• Sends Level Commands to Network Devices that Adjust Audio Levels*
• Displays Audio Attenuation Level Reported by a Network Audio Device*
• PoE Powered
• Available in Stainless Steel, Black and White


Highlights

• Pushbutton Remote Control
• Full-Color LCD Display
• Individual or Group Level Adjustment
• Mute Button with Screen Indication
• Up to 8 Source Selections with Dante Routings
• Sets or Clears Routings for Any Dante Device
• Fully Programmable Functions and Names
• Enable, Disable or Auto-Lock Each Function
• Capability to Set Gains and Levels
• May Operate as a Controller or Satellite
• Selectable Screen Display Themes
• Compatible with DD-RN and Other RDL Products*
• Sends Level Commands to Network Devices that Adjust Audio Levels*
• Displays Audio Attenuation Level Reported by a Network Audio Device*
• PoE Powered
• Available in Stainless Steel, Black, and White


Highlights

• Balanced Microphone or Line-Level XLR Input
• Switch-Selectable Mic or Line Operation on Rear Panel
• Switch-Selectable Mic Gain on Rear Panel
• Switch-Selectable P24 Phantom for Mic Inputs
• Mic High Gain: 60 dB; Mic Low Gain: 46 dB; Line Gain: Unity
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through on RJ45 Jacks
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED in XLR Indicates Module is Powered
• Daisy-Chain with Single-Pair or Two-Pair Senders
• Studio-Quality Precision Active Balanced Circuitry
• Available in Stainless Steel, Black and White


Highlights

• Balanced Microphone or Line-Level XLR Input
• Switch-Selectable Mic or Line Operation on Rear Panel
• Switch-Selectable Mic Gain on Rear Panel
• Switch-Selectable P24 Phantom for Mic Inputs
• Mic High Gain: 60 dB; Mic Low Gain: 46 dB; Line Gain: Unity
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through on RJ45 Jacks
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED in XLR Indicates Module is Powered
• Daisy-Chain with Single-Pair or Two-Pair Senders
• Studio-Quality Precision Active Balanced Circuitry
• Available in Stainless Steel, Black and White


Highlights

• Balanced Microphone or Line-Level XLR Input
• Switch-Selectable Mic or Line Operation on Rear Panel
• Switch-Selectable Mic Gain on Rear Panel
• Switch-Selectable P24 Phantom for Mic Inputs
• Mic High Gain: 60 dB; Mic Low Gain: 46 dB; Line Gain: Unity
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through on RJ45 Jacks
• Remote Powering through Twisted Pair Cable
• Fused Local Power Feeds all Connected Modules
• Local Power Input on Terminal Block
• Blue LED in XLR Indicates Module is Powered
• Daisy-Chain with Single-Pair or Two-Pair Senders
• Studio-Quality Precision Active Balanced Circuitry
• Available in Stainless Steel, Black and White


Highlights

• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Exceptional Audio Quality for Ultra-Compact Size
• Rich Presence and Detailed Clarity
• Hemispherical Dispersion Mounted In Wall or Flat Surface
• Convex Aluminum Cone with Rubber Surround
• Neodymium Motor


Highlights

• Dante Network Interface for Four Audio Inputs and Four Audio Outputs
• One Mini-jack, Two RCA Jacks and Two XLR Front-Panel Inputs
• One Mini-jack Front-Panel Output; Two Balanced Outputs on Rear-Panel Terminal Block
• Module is Configured and Adjusted Using Network Control Software
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Converts Two Standard XLR Mic or Line Audio Sources to Dante Network Channels
• Each Input Gain is Selected by Software
• Mic Gain: 35 dB, 42 dB or 59 dB
• Line Gain: Unity or 12 dB
• 48 V Mic Phantom (P48) Selected by Software
• Each Mini-jack and RCA -10 dBV Input May Feed One or Two Dante Network Channels
• Converts Four Dante Network Audio Signals to Line Level
• Mini-jack -10 dBV Stereo Output from Two Specific Dante Channels
• Rear Panel Balanced Outputs from Two Specific Dante Channels
• Each Rear Panel +4 dBu Output Equipped with Software Controlled Attenuator in 1 dB Steps
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Four Audio Inputs and Two Audio Outputs
• Four XLR Front-Panel Inputs
• Two Outputs on Rear Panel Detachable Terminal Block
• Module is Configured and Adjusted Using Network Control Software
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Converts Four Standard XLR Mic or Line Audio Sources to Dante Network Channels
• Each Input Gain is Selected by Software
• Mic Gain: 35 dB, 42 dB or 59 dB
• Line Gain: Unity or 12 dB
• 48 V Mic Phantom (P48) Selected by Software
• Converts Two Dante Network Audio Signals to Line Level
• Each Output Equipped with Software Controlled Attenuator in 1 dB Steps
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Four Audio Inputs and Four Audio Outputs
• One Mini-Jack, Two RCA Jacks and Two XLR Front-Panel Inputs
• One Mini-Jack Front-Panel Output; Two Balanced Outputs on Rear-Panel Terminal Block
• Module is Configured and Adjusted Using Network Control Software
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Converts Two Standard XLR Mic or Line Audio Sources to Dante Network Channels
• Each Input Gain is Selected by Software
• Mic Gain: 35 dB, 42 dB or 59 dB
• Line Gain: Unity or 12 dB
• 48 V Mic Phantom (P48) Selected by Software
• Each Mini-Jack and RCA -10 dBV Input May Feed One or Two Dante Network Channels
• Converts Four Dante Network Audio Signals to Line Level
• Mini-Jack -10 dBV Stereo Output from Two Specific Dante Channels
• Rear Panel Balanced Outputs from Two Specific Dante Channels
• Each Rear Panel +4 dBu Output Equipped with Software Controlled Attenuator in 1 dB Steps
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Four Audio Inputs and Two Audio Outputs
• Four XLR Front-Panel Inputs
• Two Outputs on Rear Panel Detachable Terminal Block
• Module is Configured and Adjusted Using Network Control Software
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Converts Four Standard XLR Mic or Line Audio Sources to Dante Network Channels
• Each Input Gain is Selected by Software
• Mic Gain: 35 dB, 42 dB or 59 dB
• Line Gain: Unity or 12 dB
• 48 V Mic Phantom (P48) Selected by Software
• Converts Two Dante Network Audio Signals to Line Level
• Each Output Equipped with Software Controlled Attenuator in 1 dB Steps
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Four Audio Inputs and Two Audio Outputs
• Two Inputs and Outputs on XLR Jacks on Front Panels
• Two Inputs on Rear Panel Detachable Terminal Block
• Module is Configured and Adjusted Using Network Control Software
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
• Each Input Gain is Selected by Software
• Mic Gain: 35 dB, 42 dB or 59 dB
• Line Gain: Unity or 12 dB
• 48 V Mic Phantom (P48) Selected by Software
• Converts Two Dante Network Audio Signals to Line Level
• Each Output Equipped with Software Controlled Attenuator in 1 dB Steps
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Four Audio Inputs and Four Audio Outputs
• One Mini-jack, Two RCA Jacks and Two XLR Front-Panel Inputs
• One Mini-jack Front-Panel Output; Two Balanced Outputs on Rear-Panel Terminal Block
• Module is Configured and Adjusted Using Network Control Software
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Converts Two Standard XLR Mic or Line Audio Sources to Dante Network Channels
• Each Input Gain is Selected by Software
• Mic Gain: 35 dB, 42 dB or 59 dB
• Line Gain: Unity or 12 dB
• 48 V Mic Phantom (P48) Selected by Software
• Each Mini-jack and RCA -10 dBV Input May Feed One or Two Dante Network Channels
• Converts Four Dante Network Audio Signals to Line Level
• Mini-jack -10 dBV Stereo Output from Two Specific Dante Channels
• Rear Panel Balanced Outputs from Two Specific Dante Channels
• Each Rear Panel +4 dBu Output Equipped with Software Controlled Attenuator in 1 dB Steps
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Four Audio Inputs and Two Audio Outputs
• Four XLR Front-Panel Inputs
• Two Outputs on Rear Panel Detachable Terminal Block
• Module is Configured and Adjusted Using Network Control Software
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Converts Four Standard XLR Mic or Line Audio Sources to Dante Network Channels
• Each Input Gain is Selected by Software
• Mic Gain: 35 dB, 42 dB or 59 dB
• Line Gain: Unity or 12 dB
• 48 V Mic Phantom (P48) Selected by Software
• Converts Two Dante Network Audio Signals to Line Level
• Each Output Equipped with Software Controlled Attenuator in 1 dB Steps
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Dante Network Interface for Four Audio Inputs and Two Audio Outputs
• Two Inputs and Outputs on XLR Jacks on Front Panels
• Two Inputs on Rear Panel Detachable Terminal Block
• Module is Configured and Adjusted Using Network Control Software
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
• Each Input Gain is Selected by Software
• Mic Gain: 35 dB, 42 dB or 59 dB
• Line Gain: Unity or 12 dB
• 48 V Mic Phantom (P48) Selected by Software
• Converts Two Dante Network Audio Signals to Line Level
• Each Output Equipped with Software Controlled Attenuator in 1 dB Steps
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance


Highlights

• Combination Sender and Receiver Module
• Ideal for Hotel Room Audio Systems
• Distributes Power to All Connected Modules
• Automatically Resetting Fuse for Output Voltage
• Ultra-Compact All Metal Construction
• Format-A Sender from TV Fixed Audio Output
• Sends Left and Right Audio Channels
• Unbalanced Stereo Input from Fixed Level Audio Source
• Balanced Audio Input from Mono Amplifier
• High Quality Audio Distributed to Each RJ45 Output
• Two Format-A Outputs on RJ45
• Format-A Receiver Compatible with 2 Pair Senders such as D-TPS8A
• Two -10 dBV stereo unbalanced outputs on RCA connectors
• L (Left) Output From Pair B; R (Right) From Pair C
• The output feeds the AUX input of the television


Highlights

• Converts RDL Format-A and Aux Source to Four Dante Network Channels
• Easy Installation with Format-A Connections on RJ45 through CATx Cable
• Format-A Audio Sources from Pairs A, B and C Converted to Dante
• Fourth Dante Audio Channel Fed from Unbalanced or Balanced Aux Line Input
• Front-Panel Gain Adjustment with Dual-LED VU Meter for Aux Input
• Signal LEDs Indicate Audio for Each of the Three Audio Source Format-A Pairs
• Converts Four Dante Network Audio Signals to RDL Format-A and Aux
• Three Dante Audio Signals Feed Format-A Output Pairs A, B and C
• Fourth Dante Audio Signal Feeds Auxiliary Balanced +4 dBu Line Output
• Format-A Pairs are Distributed to Three Separate Format-A Output Jacks
• Signal LEDs Indicate Audio for Each of the Four Received Dante Audio Signals
• External 24 Vdc Supply Powers All Connected Format-A Modules through RJ45 Jacks
• PoE (RU-BNFP) Powers Format-A Input and Primary Format-A Output RJ45 Jacks
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance
• LED Indicators Show Network Sync Status
• Normal or Hot-Standby Operation from PoE (Model RU-BNFP)
• Compatible with Wide Array of RDL Format-A Active and Passive Senders and Receivers
• Equipped for Rack Mounting or Surface Mounting


Highlights

• Converts RDL Format-A and Aux Source to Four Dante Network Channels
• Easy Installation with Format-A Connections on RJ45 through CATx Cable
• Format-A Audio Sources from Pairs A, B and C Converted to Dante
• Fourth Dante Audio Channel Fed from Unbalanced or Balanced Aux Line Input
• Front-Panel Gain Adjustment with Dual-LED VU Meter for Aux Input
• Signal LEDs Indicate Audio for Each of the Three Audio Source Format-A Pairs
• Converts Four Dante Network Audio Signals to RDL Format-A and Aux
• Three Dante Audio Signals Feed Format-A Output Pairs A, B and C
• Fourth Dante Audio Signal Feeds Auxiliary Balanced +4 dBu Line Output
• Format-A Pairs are Distributed to Three Separate Format-A Output Jacks
• Signal LEDs Indicate Audio for Each of the Four Received Dante Audio Signals
• External 24 Vdc Supply Powers All Connected Format-A Modules through RJ45 Jacks
• PoE (RU-BNFP) Powers Format-A Input and Primary Format-A Output RJ45 Jacks
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance
• LED Indicators Show Network Sync Status
• Normal or Hot-Standby Operation from PoE (Model RU-BNFP)
• Compatible with Wide Array of RDL Format-A Active and Passive Senders and Receivers
• Equipped for Rack Mounting or Surface Mounting


Highlights

• RS-232 Control of RDL Modules
• Serial Control of OEM Products
• Control of Eight VCA Modules
• Status Inputs from Eight Sources
• Interface with Front Panel Indicators
• Free-Standing or Rack-Mounted Installation


Highlights

• Four Separate Three-Pair Format-A Sender Sections
• Four Separate Three-Pair Format-A Receiver Sections
• Up to 24 Audio Channels, 12 Sender; 12 Receiver
• +4 dBu Balanced Audio Inputs and Outputs
• Local Audio Connections on Detachable Terminal Blocks
• Utilizes All Three Format-A Pairs
• Local Power Feeds all Modules Connected to RJ45 Connectors
• Wiring Fault Protection by Automatic Resetting Fuse
• Local Power Input on Terminal Block or dc Power Jack
• Green LED per Section Indicates Validity of Module Remote Power
• Studio-Quality Precision Active Balanced Circuitry


Highlights

• Networked Mic Input and Selectable Monitor Station


Highlights

• Headphone Amplifier with User Level Control
• 25 mW Power into Standard Headphones
• Output on Standard Mini-Jack
• Mounts to Any Flat Surface
• Input and Power Connection on RJ45
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• RJ45 Loop-Thru for Connecting Additional Modules
• Protected by Automatically Resetting Fuse
• Ultra-Compact All Metal Construction


Highlights

• Immunity from Electrostatic Discharge
• Immunity from Induced Transient Voltage
• Immunity from RF Interference
• Immunity from Electromagnetic Pulse
• CE Compliance


Highlights

• Bluetooth 5.3 Audio Input for Installed Sound Systems
• Bluetooth LE (CIS) and Bluetooth Classic (A2DP) Audio Supported
• Supported Codecs: LC3 (BLE), AAC & SBC (A2DP)
• Intuitive Front-Panel Single Button Pairing with LED Status Indication
• Extended Range Under Ideal Conditions, Up To 100 Meters from a Class 1 Device
• (Pairing and Connection Range is Limited by Connected Device’s Range)
• Rack-Mounted, Free-Standing or Surface-Mounted Operation
• Module Setup Using a Terminal Program or a Bluetooth-Equipped Computer
• Customizable Module ID Name and Programming Password via Bluetooth Connection
• Supports One or Two RDL Pairing/Status Remote Controls
• (D-RBTP or EU-RBTP), Available Separately
• Remote Pairing Connections Compatible with Third-Party Dry Contacts
• Stereo Line-Level Balanced +4 dBu XLR and -10 dBV Unbalanced RCA Outputs
• Front-Panel Switch-Selectable Stereo or Mono Line-Level Outputs
• Front-Panel Flush Slotted Attenuator for XLR and RCA Line-Level Outputs
• Front-Panel Switch-Selectable Stereo or Mono Format-A Outputs
• Format-A Mono Outputs Switch-Selectable to Feed Pair A, B or C
• Format-A Stereo Outputs Feed Pairs B (Left Channel) and C (Right Channel)
• In Mono Mode, Daisy-Chain up to Three RU-BTLA Modules to One Format-A Receiver
• Any or All Audio Outputs May Be Used Concurrently
• Locally Powered by 24 Vdc or Remotely Powered Over Twisted Pair Cable from Format-A Receiver
• Format-A Signal and Power Pair Pass-Through on RJ45 Jacks


Highlights

• Remote Control for RU-BTLA Bluetooth® Audio Receiver
• Intuitive Single Button Pairing with LED Status Indication
• Decora®-Style Wall-Mounted Remote Control
• Mounts in Standard US Single-Gang Electrical Box
• Single-Button Operation for Pairing and Disconnecting
• Wired Using 3-Conductor Single-Pair Shielded or Twisted-Pair Cable
• Powered From the RU-BTLA
• LED Indicator for Pairing Status
• Two D SERIES-RBTPs Can Control One RU-BTLA
• Available in Standard RDL White, Stainless, or Black


Highlights

• Remote Control for RU-BTLA Bluetooth® Audio Receiver
• Intuitive Single Button Pairing with LED Status Indication
• Decora®-Style Wall-Mounted Remote Control
• Mounts in Standard US Single-Gang Electrical Box
• Single-Button Operation for Pairing and Disconnecting
• Wired Using 3-Conductor Single-Pair Shielded or Twisted-Pair Cable
• Powered From the RU-BTLA
• LED Indicator for Pairing Status
• Two D SERIES-RBTPs Can Control One RU-BTLA
• Available in Standard RDL White, Stainless, or Black


Highlights

• Remote Control for RU-BTLA Bluetooth® Audio Receiver
• Intuitive Single Button Pairing with LED Status Indication
• Decora®-Style Wall-Mounted Remote Control
• Mounts in Standard US Single-Gang Electrical Box
• Single-Button Operation for Pairing and Disconnecting
• Wired Using 3-Conductor Single-Pair Shielded or Twisted-Pair Cable
• Powered From the RU-BTLA
• LED Indicator for Pairing Status
• Two D SERIES-RBTPs Can Control One RU-BTLA
• Available in Standard RDL White, Stainless, or Black
