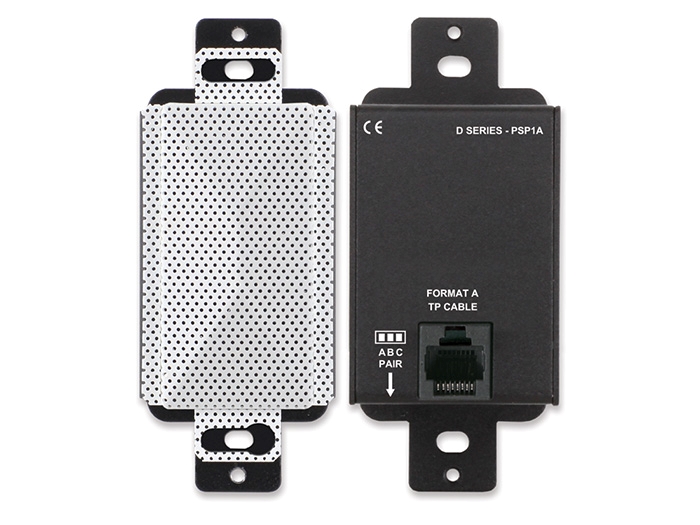

RDL Decora-Style Active Loudspeaker - Format-A - White - Installer Level Adjust
D-PSP1AF
$555.19
* Ex GST. Check with us for Discounts and the latest Trade pricing!
The D SERIES-PSP1AF is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. It is a single-pair audio amplifier module compatible with RDL Format A twisted pair products. The PSP1AF receives audio and 24 Vdc power through a rear-panel RJ45 jack. A rear-panel switch set during installation determines which of the three FORMAT-A pairs is amplified. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is set by the installer using a volume control located behind the speaker grill. The PSP1AF includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.
The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.
Models are available with grills in black (DB-PSP1AF), white (D-PSP1AF), gray (DG-PSP1AF) or stainless steel (DS-PSP1A).
