Fischer MiniMax™ Series
HIGH-DENSITY MINIATURIZATION | HIGH-SPEED DATA TRANSFER | RELIABILITY
Ideally suited for applications where SWaP (size, weight and power) is critical, the Fischer MiniMax™ Series offers a unique ruggedized, water-tight housing, with a choice of three locking systems: push-pull, screw, quick-release.
Key Features
Optimized Data & Power
- High-density miniaturization
- Unique combinations of signal and power
- Designed and tested to high-speed data transfer protocols
- USB 3.2 Gen 2, Ethernet, Audio/UHD Video
- Up to AWG 18 and 10 Amps
- 360° EMC shielding by design
Rugged and Sealed
- IP68 sealing to 20m/24h
- High corrosion resistance (up to 1,000 hours of salt mist)
- Operating temperatures from -40 °C to +135 °C
- Blind mating, easy to handle with gloves
- 5,000 mating cycles
- Tested to IEC, EIA, MIL-STD-202, MIL-STD-810
High-density miniaturization
Up to 45% smaller —————- Up to 75% lighter
High-speed data transfer

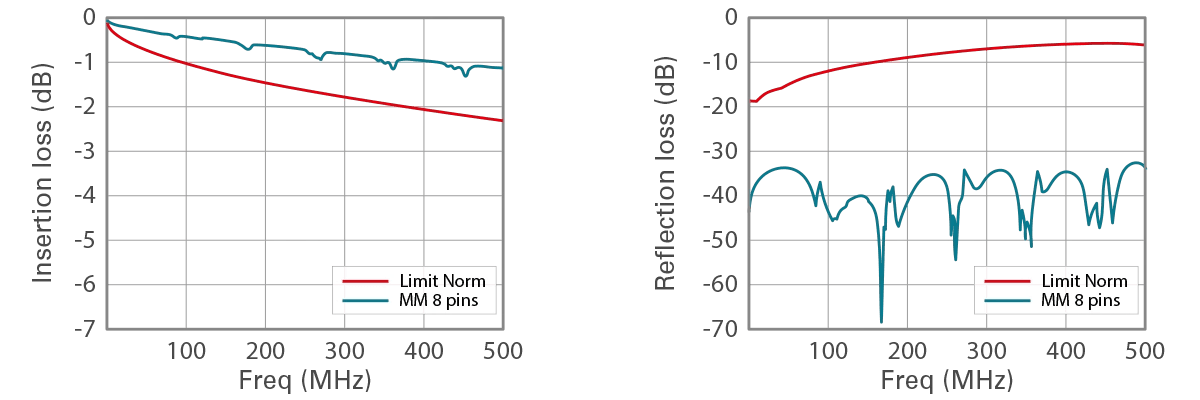

Insertion loss ————– Reflection loss
A unique robust and sealed miniature connector for Ethernet applications in harsh environments.
- AWG 24, compatible with long range standard Ethernet cables
- Symmetrical hermaphroditic contact block
- 0.5 mm contacts
- Differential insertion loss of SS pairs (1 m cable)
- Next of SS and DD pairs (1 m cable)
Optimized design for full USB 3.2 Gen 1 and Gen 2 performance, successfully tested to the full S-parameter standards with cables up to 1 m.
- Advanced power contacts
- Hermaphroditic contact block
- 0.5 mm contacts
1. Applications
The Fischer MiniMax™ Series increases the performance of your miniature rugged devices,
handling more mixed signal and power connections in a smaller footprint. Also available as a pre-cabled solution,
it is ideally suited for portable, handheld, or body-worn applications when space is limited and lightweight is critical.
Main fields of application are defense & security, instrumentation, testing equipment,
civil or military unmanned aerial vehicles (UAVs).
2. Size
3. Environmental & Technical Data
4. Electrical Data
Measured for a mated pair of panel receptacle and cable plug between the grounding pin and the cable shielding.
Tools & Accessories
Fischer Connectors provides a wide range of accessories and tools extending connector functionalities
and facilitating installation and maintenance.
Ultimate Soft Caps
Ultimate Spanner Driver
