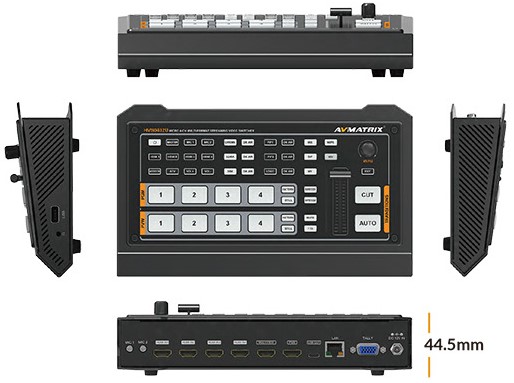

HVS0402U is a 4-channel HDMI multi-format video Switcher with compact metal case design. It supports various functions including video switching, audio mixing, PGM/ Multiview/ Aux out, different transition effects, Luma Key Chroma Key, DSK, LOGO, PIP/ POP media library, pattern and color generate. Inputs support multi-format, PGM output can be scaled, compatible with a variety of equipment

• 4 channel auto-detected HDMI inputs
• 1×HDMI PGM output,1×HDMI Multiview out, 1×USB type-C output
• AUX output configurable and assignable
• USB-C for capturing and streaming on PC
• Clearly visible Multiview & status page
• Upstream key: Luma key, Chroma key, PIP×2/ POP
• Downstream key and LOGO overlay
• T-bar/ Auto/ Cut transitions; various effects: WIPE(9×2 patterns) / MIX/ DIP
• Audio mixer: HDMI embedded audio and 2-Ch MIC/ line In; audio delay available
• Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
• LAN port for PC software remote control
• FTB/ MUTE/ STILL/ GPIO for tally
• Customer configuration import and export
