Features:

• Dante Network Interface for Two Audio Inputs and Two Audio Outputs

• Inputs and Outputs on Front-Panel RCA Jacks and Stereo 3.5 mm Mini-Jacks

• Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

• Converts Two Unbalanced Line-Level Audio Sources to Dante Network Channels

• Converts Two Dante Network Audio Signals to Unbalanced Line Level

• Special Software Not Required for Module Setup

• Exceptional Low-Noise and Low-Distortion Performance

• High Resolution 24 Bit Digital to Analog Conversion

• Legendary RDL Analog Filtering Enhances Superb Audio Performance

• LED Indicator for Valid Power and Network Sync

• Operation from PoE Power (Class 0, IEEE 802.3af)

• Equipped for SysFlex® Rack Mounting or Surface Mounting

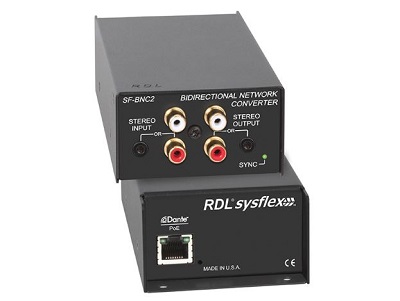

The SF-BNC2 is a bidirectional Dante audio network interface. It features two unbalanced audio inputs (left and right) on RCA or stereo 3.5 mm Mini-jack connectors, as well as two unbalanced audio outputs (left and right) on RCA and stereo 3.5 mm Mini-jack connectors. Special software is not required to configure the SF-BNC2. Each input provides a network digital audio level of -20 dBFS for an unbalanced -10 dBV input. Each output provides -10 dBV unbalanced for a network digital audio level of -20 dBFS. The SF-BNC2 is a professional grade product for studio quality fidelity and low noise performance.

The SF-BNC2 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.

The SF-BNC2 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX® product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX® products adds enormous flexibility in the design and installation of professional A/V systems.
