Broadcast Devices - Intelligent RF Switch Controller

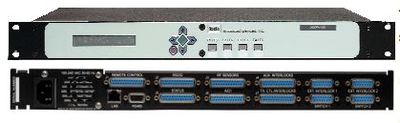

The SWP-200 is a stand alone 1RU RF switch controller which can control most brands of motorized RF switches. In addition the SWP-200 manages transmitter interlocks and simplifies the connection of interlock paths.

When installed as a system together with a DPS-100D, the SWP-200 provides complete Hot Switch protection by preventing the movement of a switch if RF is present. The SWP-200 also doubles as a rack mounted RF power display for up to 2 DPS-100D

Technical Specifications

  • Modes Supported: TX1/TX2 select to Air—SWP-200-1T, ANT1/ANT2 select, TX1/TX2 select to Air—SWP-200-2T
  • Number of Switches Supported: SWP-200-1T—1, SWP-200-2T—2
  • Switch Control Voltage: 12 VDC—when ordering a new switch specify 12 VDC Controll
  • Switch Manufactures supported: Dasto, Delta, Dielectric, DowKey, ERI, MCI, Myat, Spinner
  • Transmitter Interface: Form C dry contact relays
  • Remote Control interface SWP-200-1T: General Purpose I/O Control of Air Selected transmitter ON/OFF, Motorized Switch Position, Switch position of second switch—SWP-200-2T Model, Fault Reset*
  • Additional Remote Control interface functions for SWP-200-2T: Antenna 1/2 Command/Status, Antenna Auto/Manual Command/Status,
  • Status Available: Motorized Switch position, Fault Status, TX1,2 Interlock, Air Transmitter ON/OFF
  • AC Power Loss Monitor: Monitors for presence of AC Power loss to transmitter(s) to prevent switch operation in auto mode if AC power is lost to transmitters—Logic input requires external circuitry
  • Power Measurement Range: 10 Watt to 100 KW Full Scale Indication*
  • Power Measurement Accuracy: +/-5% of Reading—Dynamic Range 40 below Full Scale Indication*
  • Communications Interface: RS232/485, TCP/IP—Web interface utilizing BDI Graphical User Interface Compatible with Windows XP, 7 and 8
  • Physical Dimensions: 19” W X 10”D X 1.75” H—EIA Standard 1 Rack Unit
  • Electrical Requirements: 100-240 VAC 50/60 Hertz @ 0.5 ampere
  • Environmental: 0-60 degrees C, non condensing atmosphere
