Deviser's test and measurement tools are ideal for performing the installation, verification and maintenance of cable networks. The instruments’ robust set of features and capabilities reduces operational expenses for the broadband cable engineers by ensuring the proper installation of the network on the first visit and shortening the time required for on-site for service calls.

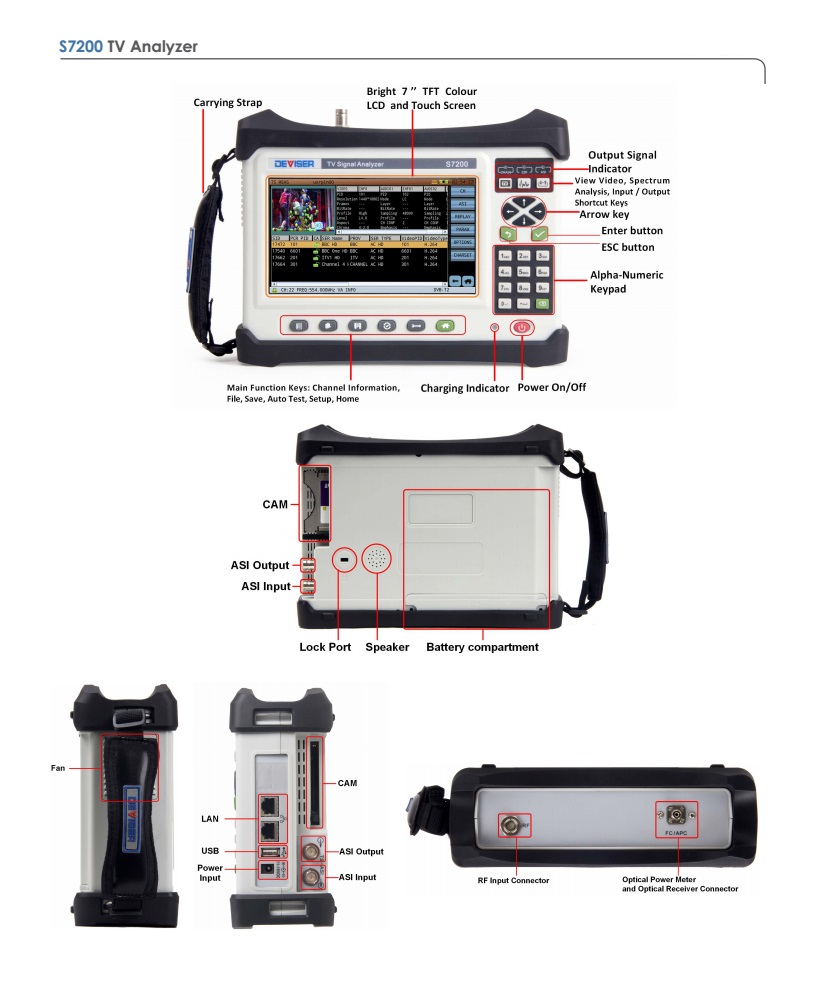

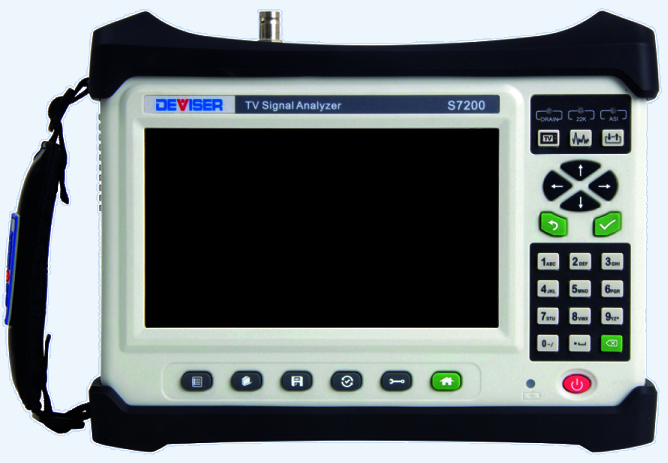

The S7200 TV analyzer is an all-in-one digital TV analyzer.  This unique analyzer supports all digital broadcasting technologies, such as DVB-C/C2, DVB-S/S2 and DVB-T.  It also enables the user to monitor both analog and digital TV and decodes standards such as MPEG-2, MPEG-4 and H.264/H.265 for 4K, 1080p, 720p and 576i, and PAL/NTSC/SECAM.

Key Features

• Digital/Analog TV and Digital Satellite TV analysis
• MPEG2 Transport stream analyzer and monitoring via
• TS-ASI input & RF input
• High Speed Spectrum Analysis: Frequency range 5 ~ 2150 MHz, max span 1200MHz
• Video decoding of MPEG2, MPEG4, and H.264 for 1080p,
• 720p and 560i, and PAL/NTSC/SECAM color system
• MPEG support
• Real-time analysis, monitoring, and recording of MPEG
• Transport Streams via TA-ASI input & RF output
• Easy-to-read fast spectral displays, including constellation and eye diagram displays
• ATSC 8VSB Spectral Emissions Mask
• Remote monitoring capable
• Closed captions monitoring
• Electronic programming guide
• User channel plan for ATSC/USA
• CAM modules for encrypted channels
• WiFi Analysis and Communication - 2.4 & 5 GHz (802.11 a/b/g/n)
• Optical Power measurements and Optical Receiver option
