Description

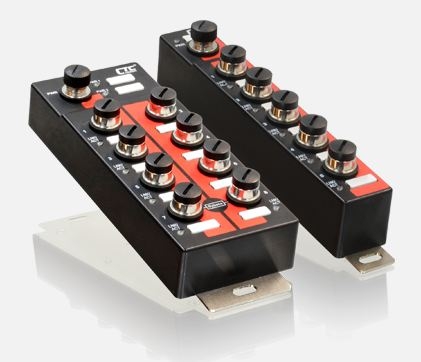

The ITP-500 (ITP-800) Series non-managed Fast Ethernet switches provide 5(8)x 10/100Base-TX Fast Ethernet ports. This series of unmanaged Ethernet switches is designed for industrial applications in harsh environments. The ITP-500 (ITP-800) series switches Ethernet ports utilize M12 connectors to ensure tight, robust connections and guarantee reliable operation against environmental disturbances such as vibration and shock. The ITP-500 (ITP-800) series Ethernet switches are compliant with EN 50155, covering operating temperature, power input voltage, surge, ESD, vibration, and shock, thus making these switches suitable for industrial applications in vehicle, rolling stock and railways.

Features

• 8-Port 10/100Base-TX Ethernet Switch (ITP-800)

• 5-Port 10/100Base-TX Ethernet Switch (ITP-500)

• Use M12 connector anti vibration and shock for vehicle,rolling stock, and railway applications

• Supports flow control

• DIN rail or wall mounting installation

• Supports broadcast storm protection

• Supports auto-negotiation and auto-MDI/MDI-X

• Built in 2 bypass port (ITP-800)

• Redundant dual DC input power 12/24/48VDC (8.4~60VDC)(ITP-800)

• DC input power 12/24/48VDC (8.4~60VDC) (ITP-500)

• IP67 grade rugged housing for against water, dust, and oil

• Wide operating temperature -40~75°C (ITP-500-E, ITP-800-E)

• CE, FCC, EN50155 and EN50121-4 for railway certified

• Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
