Mividi Broadcast TV Multiviewer Monitor
IMS120
P.O.A
* Ex GST. Check with us for Discounts and the latest Trade pricing!
Mividi IMS120 - Broadcast TV Multiviewer Monitor.
The Mividi IMS120 provides a comprehensive solution for broadcast video monitoring. It combines multiviewer monitoring, comprehensive MPEG transport stream analysis, error logging and alarms, and TS recording in a single core i7 based Windows system.
Mividi IMS120 is a broadcast transport stream monitoring system for viewing video and audio services, analyzing transport streams, logging errors, generating alarms, and recording stream data. The IMS120 was developed to automate monitoring and error diagnosis at digital head-ends in both broadcast and cable system master control rooms. It is a single Windows based system that can complete tasks previously done by several different pieces of equipment.
The Mividi IMS120 supports DVB and ATSC broadcast standards, supports MPEG-2, MPEG-4 AVC, and Chinese AVS video compression formats, as well as commonly used audio formats.

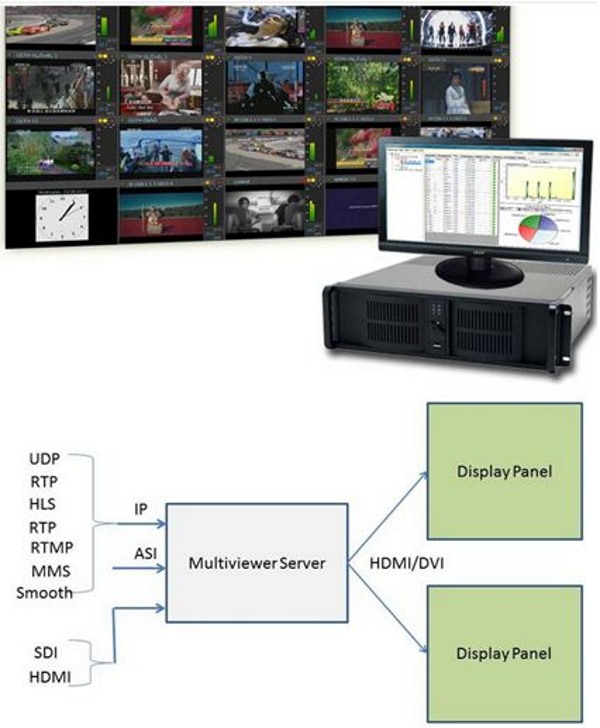

The system provides a real time view of multiple services coming from multiple transport streams. It can simultaneously display up to 50 SD video or 20 HD video programs in DVB-ASI or IP input transport streams, analyze and record the streams. Any transport stream errors are logged in a database for review and report. Alarms can be triggered by a variety of errors that can be selected by users.
Download Product Brief
Open Technical Specification and Manufacturers Website
Keywords: Mividi Broadcast TV Multiviewer Monitor
The Mividi IMS120 provides a comprehensive solution for broadcast video monitoring. It combines multiviewer monitoring, comprehensive MPEG transport stream analysis, error logging and alarms, and TS recording in a single core i7 based Windows system.
Mividi IMS120 is a broadcast transport stream monitoring system for viewing video and audio services, analyzing transport streams, logging errors, generating alarms, and recording stream data. The IMS120 was developed to automate monitoring and error diagnosis at digital head-ends in both broadcast and cable system master control rooms. It is a single Windows based system that can complete tasks previously done by several different pieces of equipment.
The Mividi IMS120 supports DVB and ATSC broadcast standards, supports MPEG-2, MPEG-4 AVC, and Chinese AVS video compression formats, as well as commonly used audio formats.
The system provides a real time view of multiple services coming from multiple transport streams. It can simultaneously display up to 50 SD video or 20 HD video programs in DVB-ASI or IP input transport streams, analyze and record the streams. Any transport stream errors are logged in a database for review and report. Alarms can be triggered by a variety of errors that can be selected by users.
Features
- Comprehensive Broadcast Monitoring in a Single System
- Multiviewer Monitoring
- Support Compressed and Uncompressed Video
- Comprehensive TS Analysis
- Error Logs and Alarms
- Transport Stream Recording
- Remote Access
- Support TS over HTTP, RTSP, RTMP, MMS and Smooth Streaming protocols
- Decodes MPEG PSI metadata tables and displays transport stream structure
