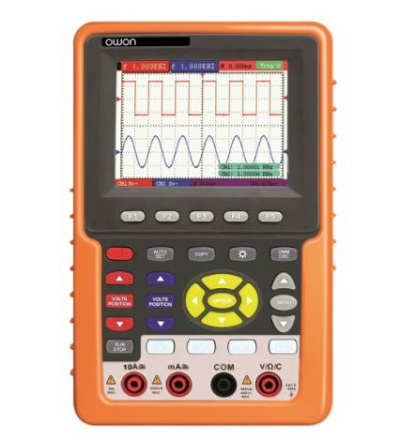

Handheld Series Digital Storage Oscilloscope
HDS1022M-N
$825.00
* Ex GST. Check with us for Discounts and the latest Trade pricing!
Features:
- 2 in 1 (DSO + Multimeter)
- Auto-scale function
- FFT function
- 20 group automatic measurement options
- Bandwidth 20MHz Sample Rate (real time) 100MS/s
- USB data transmission supported
- Rechargeable Li-ion battery (6 hours' backup)
- Multimeter newly supported SCPI
Also Available:
Performance Specifications
| Digital Storage Oscilloscope Performance Specifications | |
| Model | HDS1022M-N |
| Bandwidth | 20MHz |
| Sample Rate (real time ) | 100MS/s |
| Horizontal Scale (s/div) | 5ns/div～100s/div, step by 1～2.5～5 |
| Rise Time (at input, typical) | ≤ 17.5ns |
| Display | 3.7 inch color display with TFT panel (640 × 480 pixels, 65535 colors) |
| Channel | dual |
| Input Impedance | 1MΩ ± 2%, in parallel with 20pF ± 5pF |
| Record Length | max 6000 points on each channel |
| Interpolation | sin (x) / x |
| Probe Attenuation Factor | 1X，10X，100X，1000X |
| Input Coupling | DC, AC, and GND |
| DC Accuracy (average) | average >16 : ±(5% reading + 0.05div) for △V |
| Vertical Sensitivity | 5mV/div～5V/div (at input) |
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) |
| Max Input Voltage | 400V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II |
| Trigger Type | Edge, Video, Alternate |
| Trigger Mode | Auto, Normal, Single |
| Trigger Level | ±6 divisions from screen center |
| Acquisition Mode | Sample, Peak Detect, and Average |
| DC Gain Accuracy | ±3% |
| Automatic Measurement | Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty |
| Waveform Math | ＋, －, ×, ÷, FFT |
| Waveform Storage | 4 waveforms |
| Lissajous Figure Bandwidth | full bandwidth |
| Lissajous Figure Phase Difference | ±3 degrees |
| Communication Interface | USB |
| Power Supply | 100V-240V AC, 50/60Hz |
| Li-ion Battery | 7.4V, 6 hours operation |
| Dimensions (W × H × D) | 180 × 115 × 40 (mm) |
| Weight (without package) | 645 g |
| Multimeter Specifications | |
| Full Scale Reading | 3(3/4) digit (max 4000-count) |
| diode | 0V-1.5V |
| Input Impedance | 10 MΩ |
| On / Off measurement | < 50 (± 30) beeping |
| Voltage | VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz; max input : AC 400V (virtual value) |
| Current | DC : 40mA, 400mA : ±(1.5% ± 1 digit), 10A : ±(3% ± 3 digits) AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 20A : ±(5% ± 3 digits) |
| Impedance | 400Ω : ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits) |
| Capacitance | 51.2nF - 100uF : ±(3% ± 3 digits) |
