TeleDelta 4 Channel FM Receiver

DFM-RX4

P.O.A

* Ex GST. Check with us for Discounts and the latest Trade pricing!

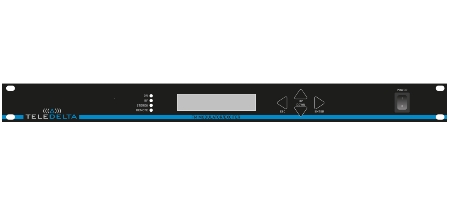

The TeleDelta DFM-RX4 4 Channel FM Receiver is a professional 1RU rack-mount platform for FM rebroadcast in tunnels, underground environments and In-building FM redistribution systems

Compact in design the DFM-RX4 can ingest FM signals off air for analog audio output to down stream switchers, distribution or re-tranmission.

User setup and control is available via the front panel LCD and push-button controller along with remote management via RS232.

Key Features
  • Digital AES / EBU audio inputs
  • Analog and SCA (optional) inputs
  • Low latency DSP based stereo generator with variable 19kHz pilot deviation
  • Adjustable frequency output across FM bands 87~108Mhz
  • Adjustable RF output level
  • Front panel LCD display / control
  • RS232 remote control interface for PC or other compatible device
  • RF power mute can be activated without turning off power supply.
