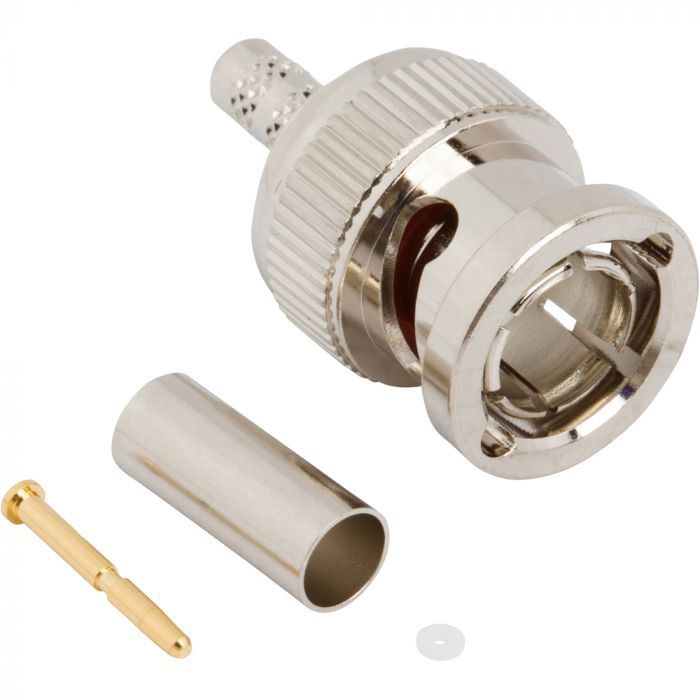

Amphenol RF 12G HD-BNC Straight Crimp Belden 4855R, 1855A

BNC-034-1107-12G

$0.00

* Ex GST... Check with us for Discounts and the latest Trade pricing!



Description
RF Connector HD-BNC Straight Crimp Plug Belden 1855A Belden 4855R Belden 4855P 75 Ohm 12G Optimized

Product Specifications
Body Finish: Nickel
Body Material: Brass
Cable Type (Terminates to): Belden 1855A, Belden 4855R, Belden 4855P
Contact Finish: Gold
Contact Material: Phosphor Bronze
C:ontact Termination: Crimp
Coupling Mechanism: Bayonet
Crimp Tool: 47-10120
Export Control Classification Number: EAR99
Frequency (Max GHz): 18
Gender: Plug
IP Rating: Not Rated
Impedance (Ohms): 75
Insulator Material: PTFE
Isolated: No
Low PIM: No
Mil Qualified: Not Mil Qualified
Non Magnetic: No
Orientation: Straight
Panel Mounting Feature: Not Applicable
Ports: 1 (Single Port)
Size Category: Miniature
Temp (Max Degrees Celsius): 85
Temp (Min Degrees Celsius): -40
Termination Style: Cable - Crimp

Datasheet - 112563
