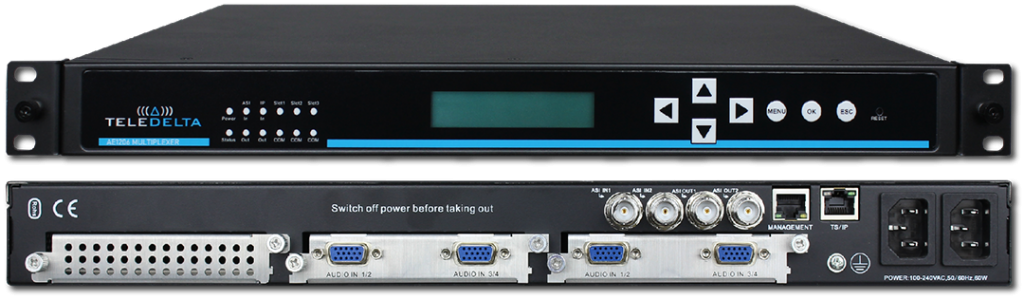

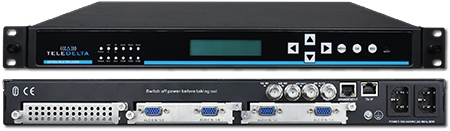

The TeleDelta AE1206 Encoder is a 1RU Rack-mount broadcast encoder platform for AES Digital Audio and Stereo / Mono balanced and unbalanced Analog audio distribution over DVB networks. Able to support up to 12x stereo or mono audio sources per chassis and multiple audio codec options (MPEG1L2, AAC, AC3), operators have flexibly and capacity for DVB audio distribution over ASI or IP networks.

The AE1206 series can be controlled via an internal web-GUI, SNMP or front panel display, and provides additional redundancy options via (optional) dual power-supplies.

Key Features

• Broadcasting-grade Audio Standards
• Wide Codec support MPEG1L2, AAC and AC3
• Encode and multiplex up to 12x audio sources AES Digital or Analog Sources per chassis
• Balanced, Unbalanced Analog Audio support
• Supports SI, PSI and PSIP PID Tables
• Automatically generates PSI/SI information table, EIT Processing
• PID Processing – Pass through, Remapping and Filtering
• High-performance RS error-correcting coding
• Supports two-channel ASI Inputs / Output
• Re-Mux and TS.IP Streaming Output (SPTS/MPTS)
• Single / Dual Redundant Power-supply options
• Web-GUI, SNMP and Front Panel system management

Common Applications

• Radio Broadcast Distribution
• Satellite DVB content aggregation
• DVB Audio Ingest
• DVB Audio Monitoring
• IP Audio Linking
• Television Network Audi Delivery
