Mividi SCTE35 and DPI Monitoring System
ACR100
P.O.A
* Ex GST. Check with us for Discounts and the latest Trade pricing!
Mividi ACR100 - SCTE35 and DPI Monitoring System.
An innovative system for monitoring SCTE35 splicing messages and using audio fingerprint technology for automatic program and advertisement content recognition. The system can be used by service provides to monitor Ad placement opportunity and verify correct Ad insertion, and by Ad agencies to check their Ads are played out as intended.
ANSI/SCTE 35- "Digital Program Insertion Cueing Message for Cable" is a standard used by service providers to insert advertisement programs into regular program streams. The SCTE35 defines splicing messages that informs the down-stream processing equipment to insert advertisement in proper splicing points. Once the down-stream ad inserter receives the splicing message, the inserter can request the ad program from ad server and insert the program into a regular program.
Mividi SCTE35 Monitoring and Automatic Content Recognition Software monitors all SCTE35 splicing messages in transport streams and records table content and arrival timestamp in the system database. The triggered recording functionality can automatically record a piece of transport stream upon an appearance of a splicing message or detected program content. In addition, the system uses audio fingerprint technology to detect program content. Users can use recorded transport stream files, such as a piece of advertisement, and generate a set of fingerprint database. The system can be configured to detect the presence of specific content in the input transport stream, and log the information on the content match. Additionally, the system can also be used to search specific content in recorded files using audio finger print match.

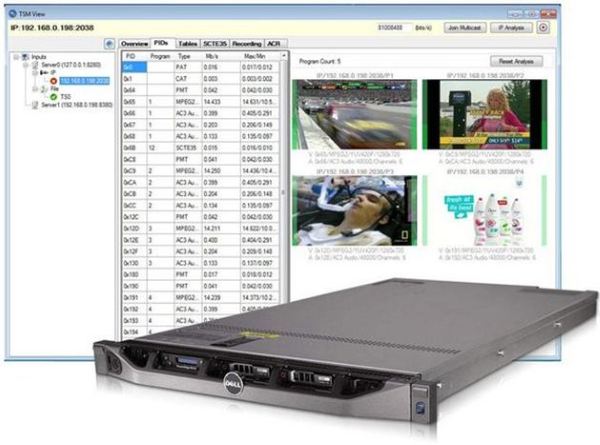

The Mividi SCTE35 Monitoring and Automatic Content Recognition Software can run as a standard-alone application, or as a module in Mividi Video over IP Monitoring System TSM100. TSM100 provides comprehensive analysis of IP and TS layers on MPEG transport stream on standard compliance, video thumbnail decoding, error report and alarm functionalities.
Download Data Sheet
Open Technical Specification and Manufacturers Website
Keywords: Mividi SCETE35 and DPI monitoring system
An innovative system for monitoring SCTE35 splicing messages and using audio fingerprint technology for automatic program and advertisement content recognition. The system can be used by service provides to monitor Ad placement opportunity and verify correct Ad insertion, and by Ad agencies to check their Ads are played out as intended.
ANSI/SCTE 35- "Digital Program Insertion Cueing Message for Cable" is a standard used by service providers to insert advertisement programs into regular program streams. The SCTE35 defines splicing messages that informs the down-stream processing equipment to insert advertisement in proper splicing points. Once the down-stream ad inserter receives the splicing message, the inserter can request the ad program from ad server and insert the program into a regular program.
Mividi SCTE35 Monitoring and Automatic Content Recognition Software monitors all SCTE35 splicing messages in transport streams and records table content and arrival timestamp in the system database. The triggered recording functionality can automatically record a piece of transport stream upon an appearance of a splicing message or detected program content. In addition, the system uses audio fingerprint technology to detect program content. Users can use recorded transport stream files, such as a piece of advertisement, and generate a set of fingerprint database. The system can be configured to detect the presence of specific content in the input transport stream, and log the information on the content match. Additionally, the system can also be used to search specific content in recorded files using audio finger print match.
The Mividi SCTE35 Monitoring and Automatic Content Recognition Software can run as a standard-alone application, or as a module in Mividi Video over IP Monitoring System TSM100. TSM100 provides comprehensive analysis of IP and TS layers on MPEG transport stream on standard compliance, video thumbnail decoding, error report and alarm functionalities.
Features
- Automatic content detection based on audio fingerprints
- SCTE35 monitoring and decoding
- Auto-triggered recording following SCTE35 splicing messages
- Decode video key frames and display video thumbnail on all input programs to verify program content
- Monitor and decode PSI, DVB SI and PSIP tables
- Automatically reporting and alarms using email with flexible trigger conditions
- MPEG transport stream recording and playback
- Easy to use remote user interface
- Report generation and statistics on test results
