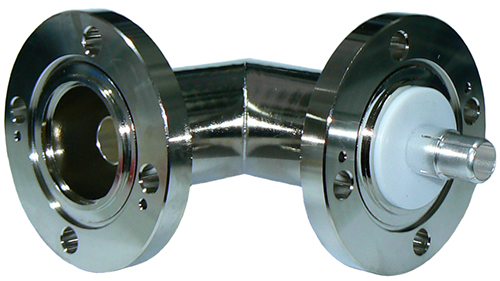

Product Overview: The TeleDelta 158EIA-158EIA-90 is a high-performance 1-5/8 EIA Male to 1-5/8 EIA Female Right Angle Adaptor, designed for optimal signal transfer in RF applications.

Key Features:

• Interfaces:
  • Interface A: 1-5/8 EIA Male.
  • Interface B: 1-5/8 EIA Female.
• Electrical Specifications:
  • Frequency Range: 0 ~ 3000 MHz.
  • Impedance: 50 Ω (+/- 2 Ω).
  • VSWR: <1.09 @ DC-1000 MHz.
  • Continuous Power: 3.4 kW @ 900 MHz.
  • Peak Power: 90 kW.
  • Insulation Resistance: ≥5000 Megaohms.
• Mechanical Construction:
  • Body: Brass.
  • Insulation: PTFE.
  • Inner Conductor: Silver-plated Bronze (Ag).
  • Gasket: Silicone Rubber.
  • Hardware Kit: Stainless steel nuts, bolts, and washers included.
• Environmental Specifications:
  • Operating Temperature Range: -45°C to +85°C.
  • Waterproofing: IP67-rated for reliable outdoor use.

Accessories Included:

• 1x Inner Coupler.
• Complete hardware kit for secure installation.

Applications: Ideal for broadcast, telecommunications, and RF infrastructure where right-angle adaptors are required for compact setups or space constraints.

Ordering Information:

• Part Number: 158EIA-158EIA-90.

Data Sheet  | For additional details, visit www.teledelta.com.
