FLAT-PAK™ products are high performance application-specific A/V, recording and broadcast modules constructed in compact, low-profile, shielded heavy duty metal chassis’. Module functions include pre-amplification, format conversion, line driving, power amplification, mixing, distribution, equalization, level control and more. The unique FLAT-PAK™ case can be directly screwed or bolted to cabinets or shelves. Rack mounting accessories permit mounting single or multiple FLAT-PAKs to front or rear rails. Adjacent mounting of FLAT-PAK™ modules is facilitated by daisy-chaining multiple modules from a single power supply using included power interconnect cables.
FLAT-PAK™ modules provide the most common connections in professional installations, including gold-plated jacks, detachable and fixed terminal blocks. Bold, high contrast labeling facilitates connection and adjustment in confined or dark locations. LED metering and indicators shorten setup and adjustment time. Signal connectors and switches are very high quality. Circuits are designed for studio quality performance and are engineered for extended service life.
A FLAT-PAK™ module may be mounted right where its function is needed. Multiple FLAT-PAK™ and other RDL modules can be used together to form all or part of an A/V system that precisely matches users’ needs. The high performance of these modules and the continuity in product offering and support makes FLAT-PAK™ modules a preferred long-term resource for system design solutions. FLAT-PAK™ SERIES modules are designed and manufactured in the U.S.A.
DRA-35F
Flat-Pak DIN Rail Adapter
Highlights
• Mounts One RDL FLAT-PAK™ Module to 35 mm DIN Rail
• Ideal for Mounting Multiple FLAT-PAK™ Modules with Daisy Chained Power
• Ideal for Use when Traditional Rack Mounting is Not Desired
FP-ALC1
Automatic Level Control – Mono – Terminal block
Highlights
• Consistent Levels from Variable Sources
• Split-Band AGC for Audio Transparency
• Self-Adjusting Attack and Release Times
• AGC with Simple Single-Control Setup
• Level Control Range > 20 dB
• Gated Control to Avoid Level Seeking
• Convenience of RDL® FLAT-PAKs™
FP-ALC2
Automatic Level Control – Stereo – RCA Jacks
Highlights
• Consistent Levels from Variable Sources
• Split-Band AGC for Audio Transparency
• Self-Adjusting Attack and Release Times
• AGC with Simple Single-Control Setup
• Level Control Range > 20 dB
• Gated Control to Avoid Level Seeking
• Convenience of RDL FLAT-PAKs

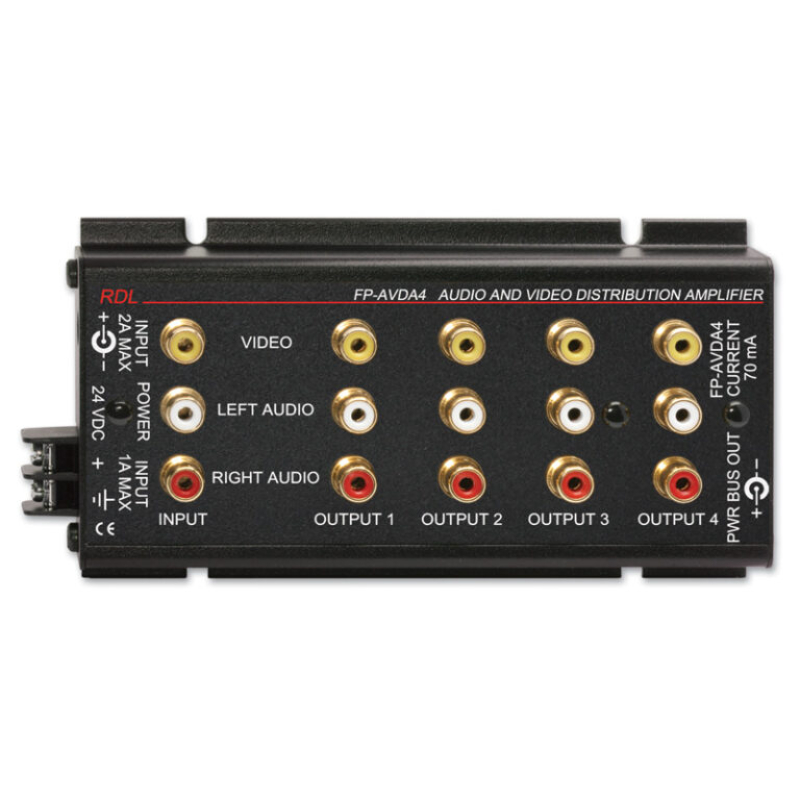

FP-AVDA4
Stereo Audio/Video Distribution Amplifier – 1×4 – RCA Jacks
Highlights
• Consumer Audio/Video Distribution
• Four Outputs (Video + Stereo Audio)
• Professional Quality Performance
• 75 Ω Video Input/Outputs
• Unbalanced Audio Input/Outputs
• Wideband Video − Flat to 10 MHz
• Ultra-Compact All Metal Construction

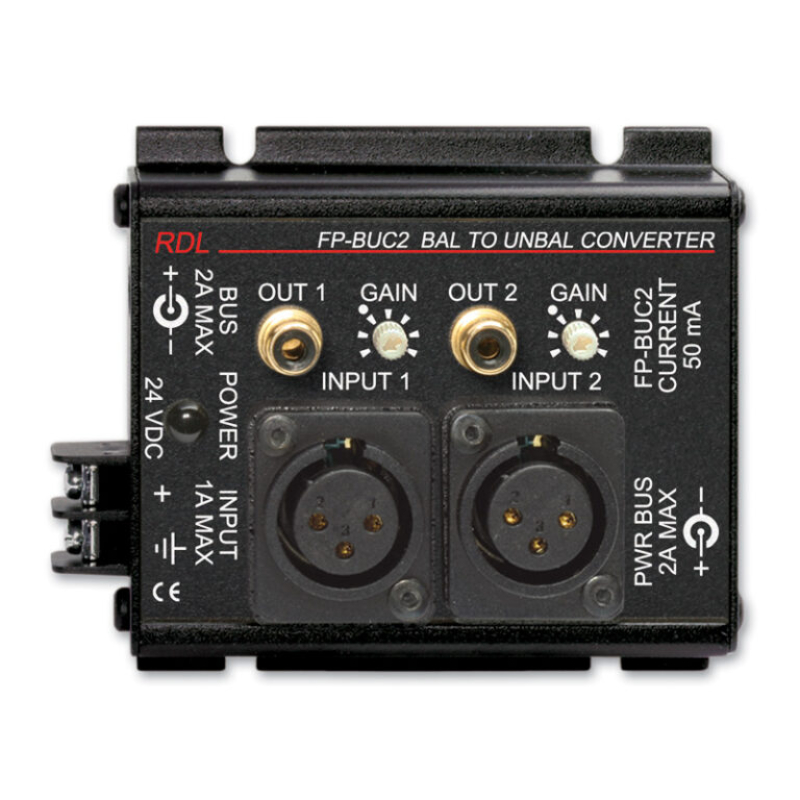

FP-BUC2
Balanced to Unbalanced Converter – 2 channel
Highlights
• Stereo Balanced to Unbalanced Audio Conversion
• Connectorized Audio Converter
• Output Level Trim
• Low-Noise and Low-Distortion Conversion
• Cabinet, Shelf or Rack Mounting
• Convenience of RDL® FLAT-PAKs™

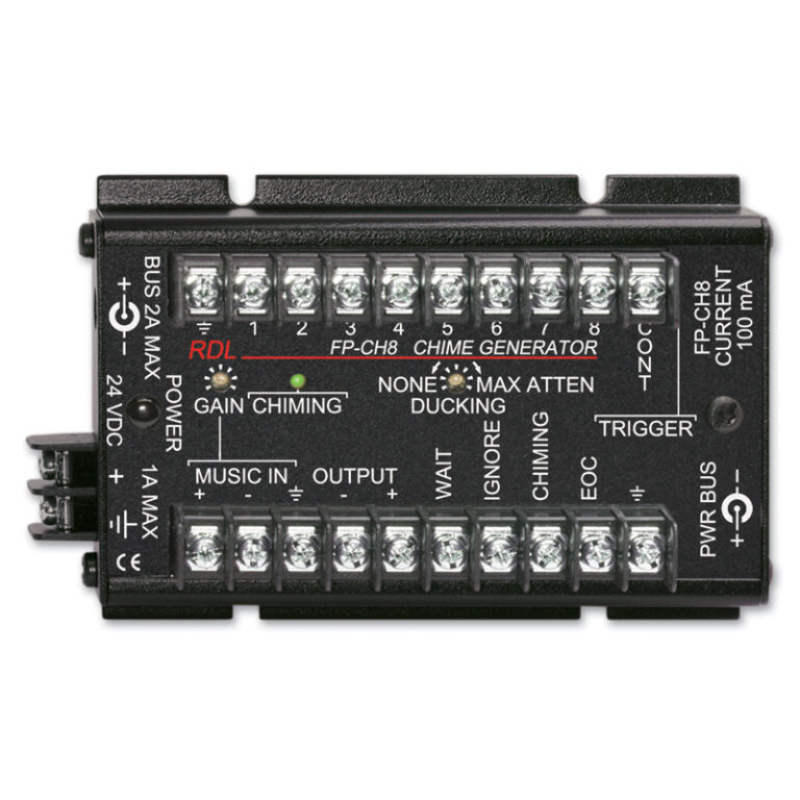

FP-CH8
Chime Generator – 8 Electronic Chimes
Highlights
• 8 Individually Selectable Electronic Chimes
• Selectable Single or Repeated Chime
• Synthesized Bell Harmonics for Natural Sound
• External Chime Actuation
• Input for Background Music or Paging Audio
• Automatic Ducking

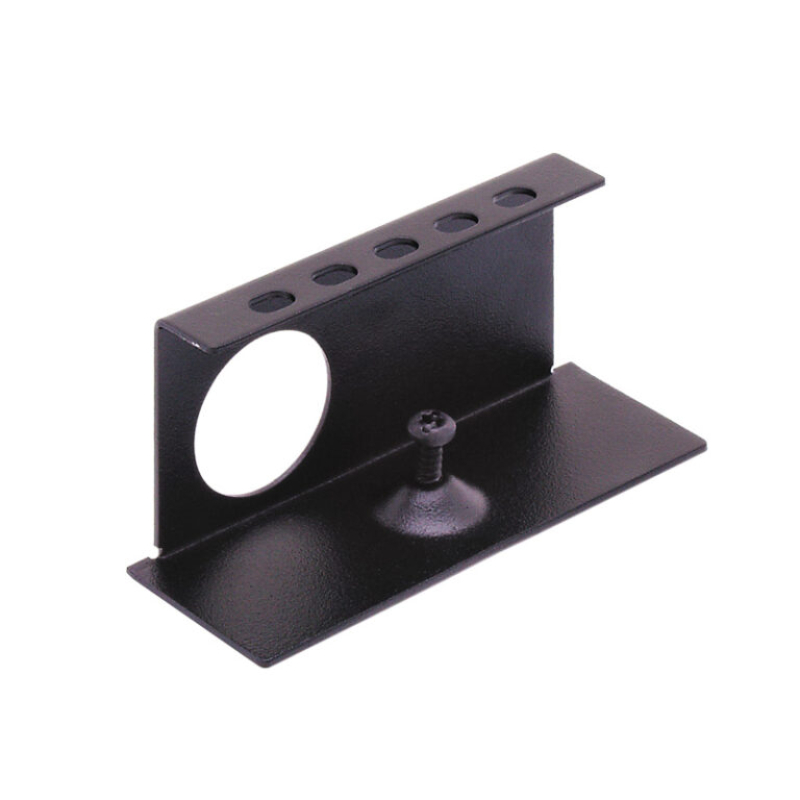

FP-CT1
Locking Cable Tie Bracket for FP-RRA and FP-RRAH
Highlights
• For Use with FP-RRA and FP-RRAH Rack Mount Panels
• Secures Cables and Wires for FLAT-PAK™ Modules
• Multiple Holes for Cable Tie Attachment
• Hole for Routing Cables and Wires

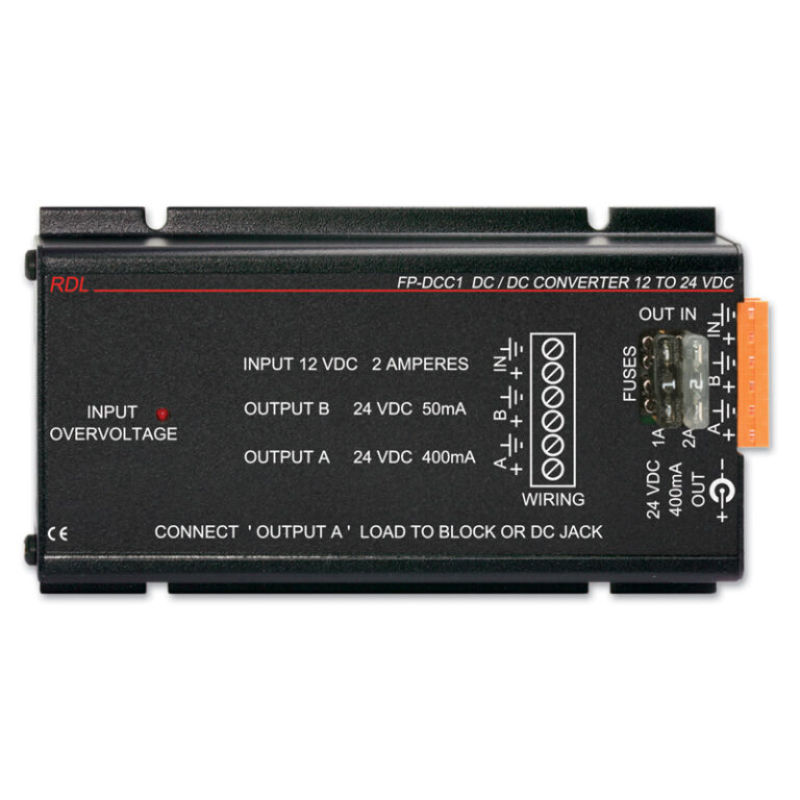

FP-DCC1
12 Vdc to 24 Vdc Converter
Highlights
• 24 Vdc Power from 12 Vdc Source
• Mobile Powering of 24 Vdc Modules
• 24 Vdc Ground-Referenced Power Output
• Separate High-Current and Low-Noise Outputs
• Terminal Block and DC Jack Outputs
• Ultra-Compact All Metal Construction
• Convenience of RDL® FLAT-PAKs™

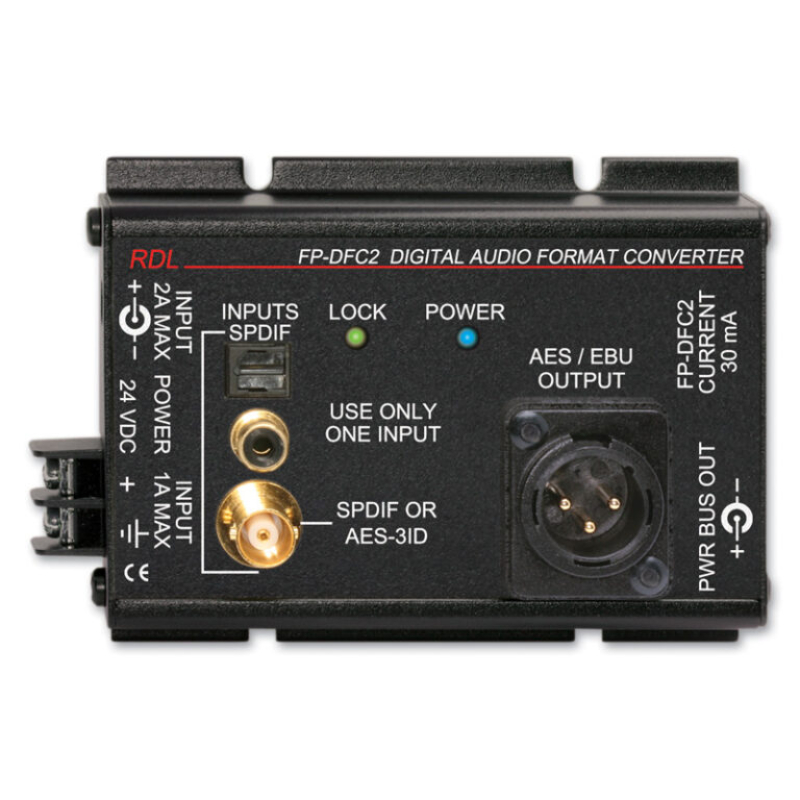

FP-DFC2
Digital Audio Format Converter (24/192)
Highlights
• Conversion from S/PDIF to AES/EBU
• Conversion from AES-3ID to AES/EBU
• Exclusive Sure-Lok™ Auto-Recovery
• Automatic Sample Rate Detection
• Coaxial or Optical Input
• Valid Signal LOCK LED Indicator
• Transformer Isolated Output
• Full Operation up to 24 bit / 192 kHz
• Cabinet, Shelf or Rack Mounting

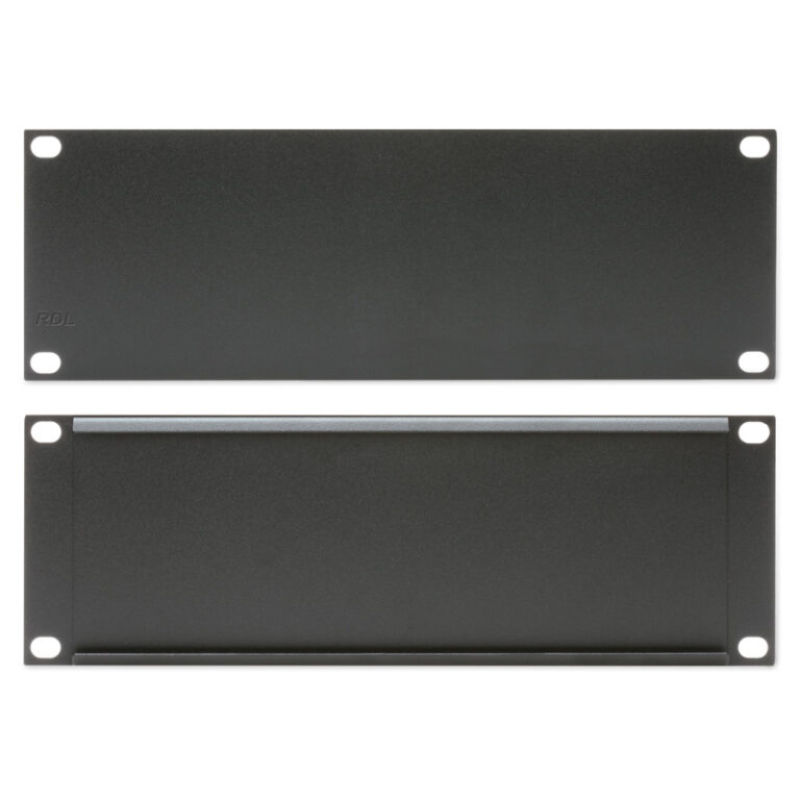

FP-HRA

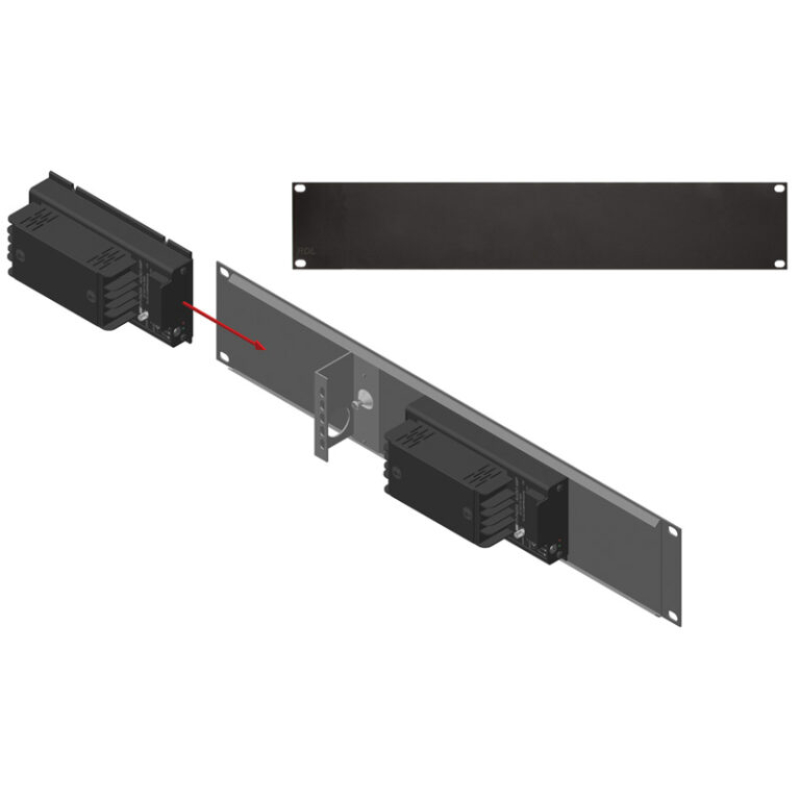

10.4″ Rack Mount for FLAT-PAK Series Products
Highlights
• Fits 10.4″ Racks
• Mounts One or More FLAT-PAK™ Modules
• Exclusive Track System Provides Flexible Module Placement
• Occupies Two RUs in 10.4″ Rack

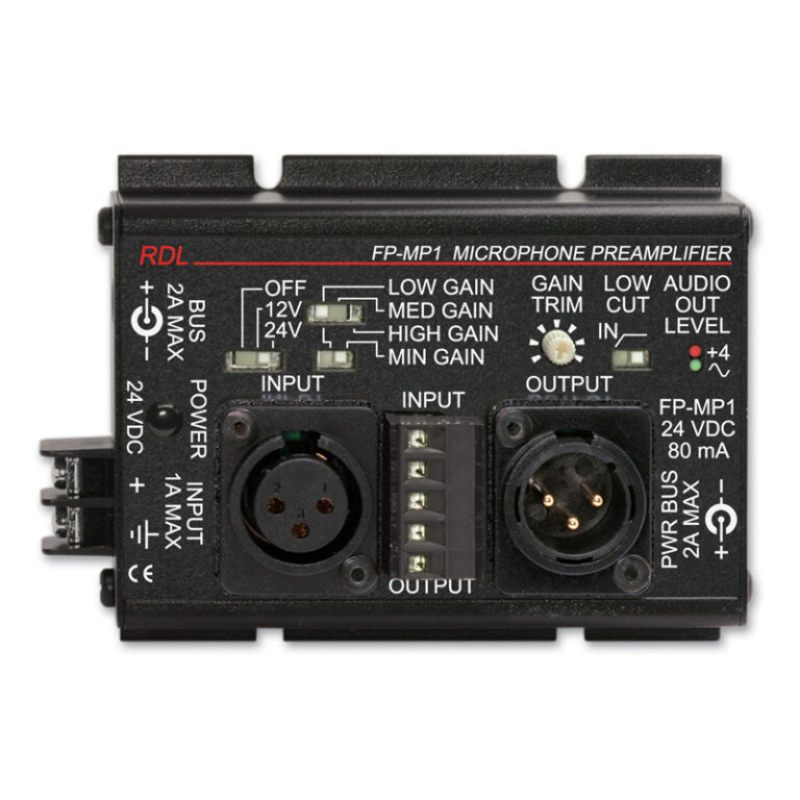

FP-MP1
Studio Quality Microphone Preamplifier with Phantom – Terminal block & XLR
Highlights
• Professional Studio-Quality Low-Noise Performance
• Switchable Internal Phantom Voltage
• XLR and Terminal Block Connections
• Selectable Input Level Ranges
• Adjustable Gain with Dual-LED VU Metering
• Ultra-Compact All Metal Construction
• Convenience of RDL® FLAT-PAKs™

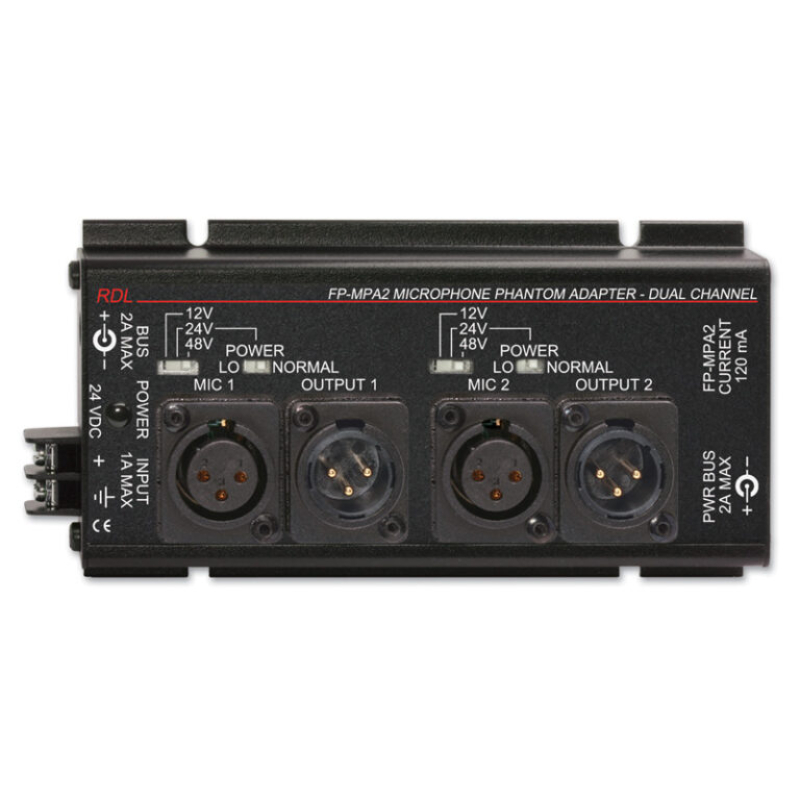

FP-MPA2
Dual Microphone Phantom Adapter 12, 24, 48 V – XLR
Highlights
• Phantom Adapter for Two Mics
• Selectable Phantom Voltage
• 12V, 24V, 48V Phantom
• Selectable Current for 24V Mics
• All Standard Buildout Resistances
• Ultra-Compact All Metal Construction
• Convenience of RDL® FLAT-PAKs™

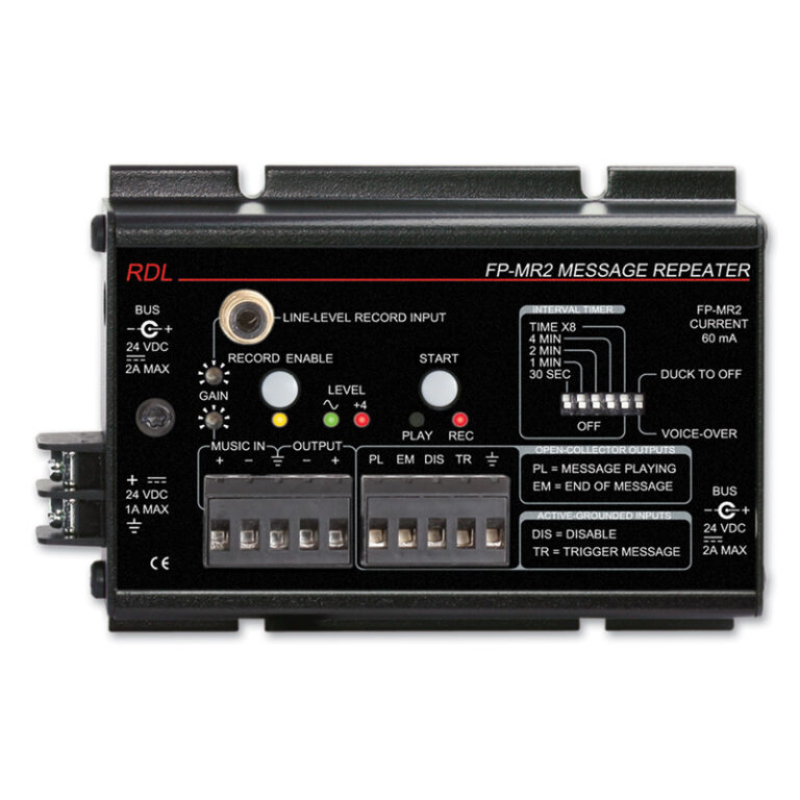

FP-MR2
Message Repeater
Highlights
• Repeating Single Message
• Music Quality Message Recording
• Up to 1.7 Minute Digital Message Storage
• External Message Actuation
• Interval Timer to Repeat Message Playback
• Background Music Input
• Automatic Voice-Over or Music Ducking

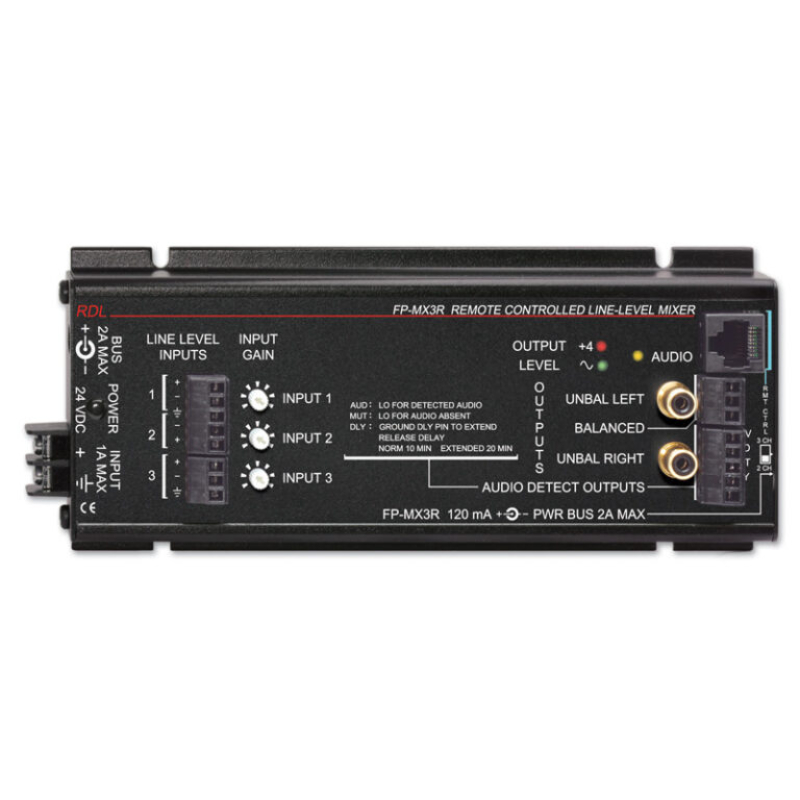

FP-MX3R
Remote Controlled Line-Level Mixer
Highlights
• 3-Channel Remote-Controlled Audio Mixer
• VCA Level Control for Each Input
• Balanced or Unbalanced Inputs
• Balanced and Unbalanced Outputs
• Two Mono Unbalanced Outputs to Feed Stereo Amplifier
• Inputs and Outputs on Detachable Connectors
• Twisted Pair Interconnection to Remote Control
• Directly Controlled by RDL Remote Controls with 2 or 3 channels
• Fixed Level Possible for Input 3 if Two Channel Remote Used
• Paging Source May Connect to Input 3
• Front-Panel Gain Trim for Standard Audio Line Levels
• Dual-LED VU Meter Displays Mixer Output Level
• Audio Presence Detector Controls Open-Collector Outputs
• Detector Outputs Intended to Enable Power Amplifiers or System Power
• Energy Savings Possible Using Detector Outputs
• Selectable 10 or 20 Minute Detector Release Delay

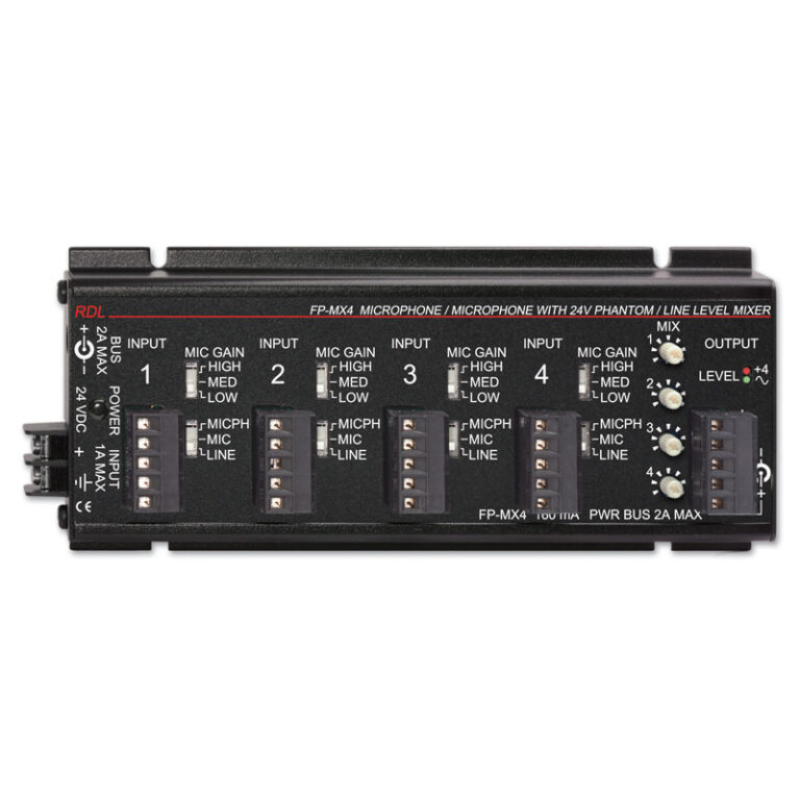

FP-MX4
4 Channel Audio Mixer – Microphone or line input and output
Highlights
• Four Channel Audio Mixer
• Balanced Microphone and Line Inputs
• Balanced Microphone and Line Outputs
• Switch-Selectable 24 V Mic Phantom
• Three Switch-Selectable Mic Gain Ranges
• Studio-Quality, Low-Noise Performance
• Convenience of RDL® FLAT-PAKs™

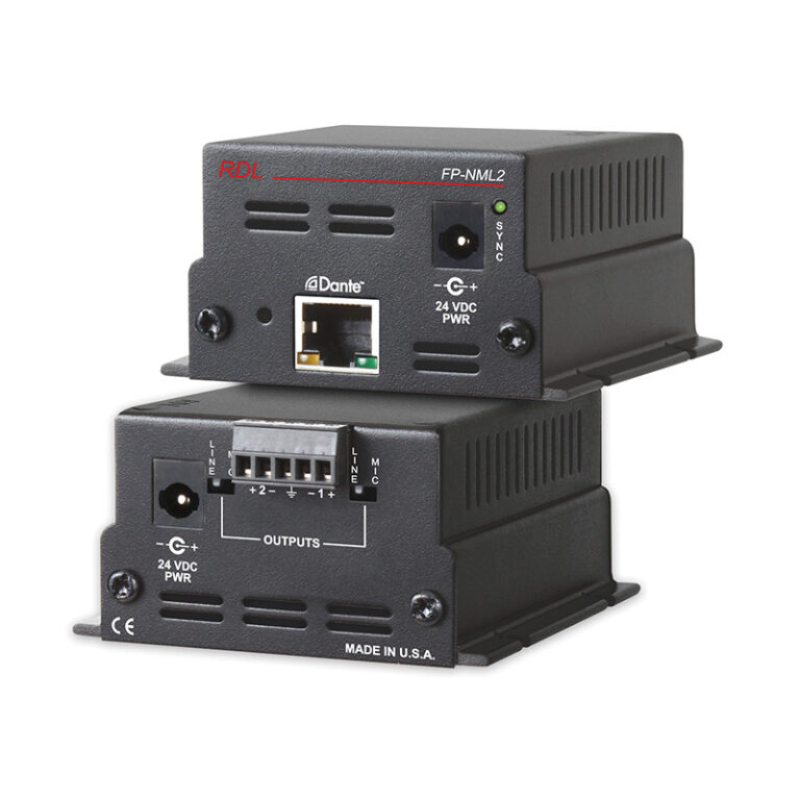

FP-NML2
Network to Mic/Line Interface
Highlights
• Adapts Standard Audio Amplifiers to a Dante Network
• Converts Two Dante Network Audio Signals to Professional Line Level
• Each Output is Switch-Selectable for Mic or Line Level
• Line-Level Outputs Provide +4 dBu with > 18 dB Headroom
• Exceptional Low-Noise and Low-Distortion Performance
• Crosstalk is Below the Noise Floor
• 24 Vdc Pass-Through Jack for Power Supply Sharing with RDL Amplifiers (FP-NML2)
• High Resolution 24 Bit Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance
• Outputs Mute when Digital Audio Inputs are Inactive
• Normal or Hot-Standby Operation from PoE (Model FP-NML2P)
• Equipped for Rack Mounting or Surface Mounting
FP-NML2P
Network to Mic/Line Interface
Highlights
• Adapts Standard Audio Amplifiers to a Dante Network
• Converts Two Dante Network Audio Signals to Professional Line Level
• Each Output is Switch-Selectable for Mic or Line Level
• Line-Level Outputs Provide +4 dBu with > 18 dB Headroom
• Exceptional Low-Noise and Low-Distortion Performance
• Crosstalk is Below the Noise Floor
• 24 Vdc Pass-Through Jack for Power Supply Sharing with RDL Amplifiers (FP-NML2)
• High Resolution 24 Bit Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance
• Outputs Mute when Digital Audio Inputs are Inactive
• Normal or Hot-Standby Operation from PoE (Model FP-NML2P)
• Equipped for Rack Mounting or Surface Mounting

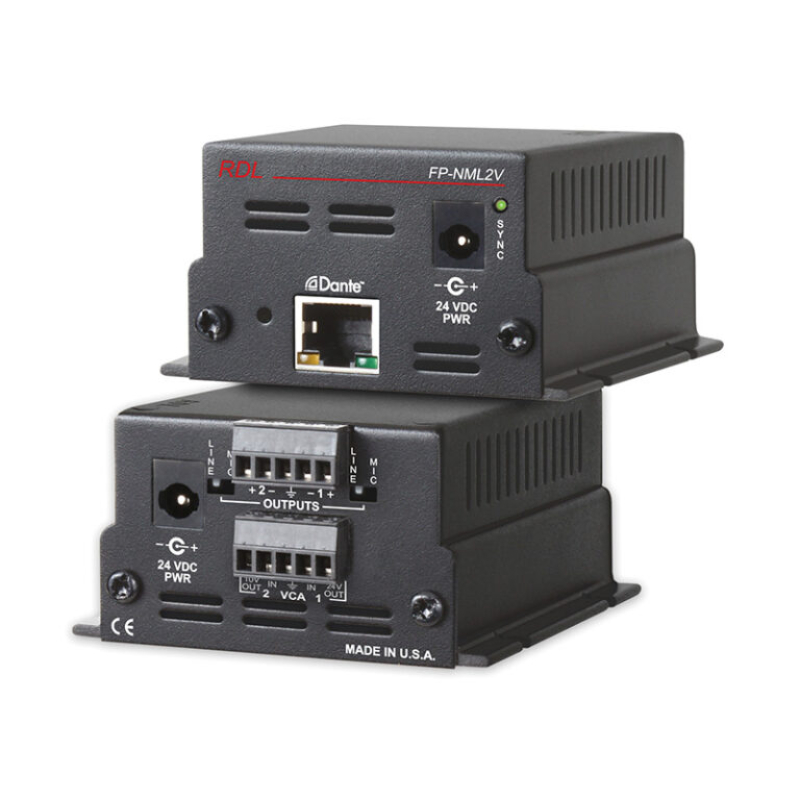

FP-NML2V
Network to Mic/Line Interface with VCA
Highlights
• Adapts Standard Audio Amplifiers to a Dante Network
• Converts Two Dante Network Audio Signals to Professional Line Level
• Separate VCA Provided for Each Output
• Outputs are Adjustable using RDL or OEM Remote Controls or 0 to 10 Vdc
• Individually Adjustable Outputs Ideal to Feed Two Separate Amplifiers
• Each Output is Switch-Selectable for Mic or Line Level
• Line-Level Outputs Provide +4 dBu with VCA at Maximum
• Output Amplifiers Provide More than 18 dB Headroom
• Exceptional Low-Noise and Low-Distortion Performance
• Crosstalk is Below the Noise Floor
• 24 Vdc Pass-Through Jack for Power Supply Sharing with RDL Amplifiers (FP-NML2V)
• High Resolution 24 Bit Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance
• Outputs Mute when Digital Audio Inputs are Inactive
• Normal or Hot-Standby Operation from PoE (Model FP-NML2VP)
• Equipped for Rack Mounting or Surface Mounting

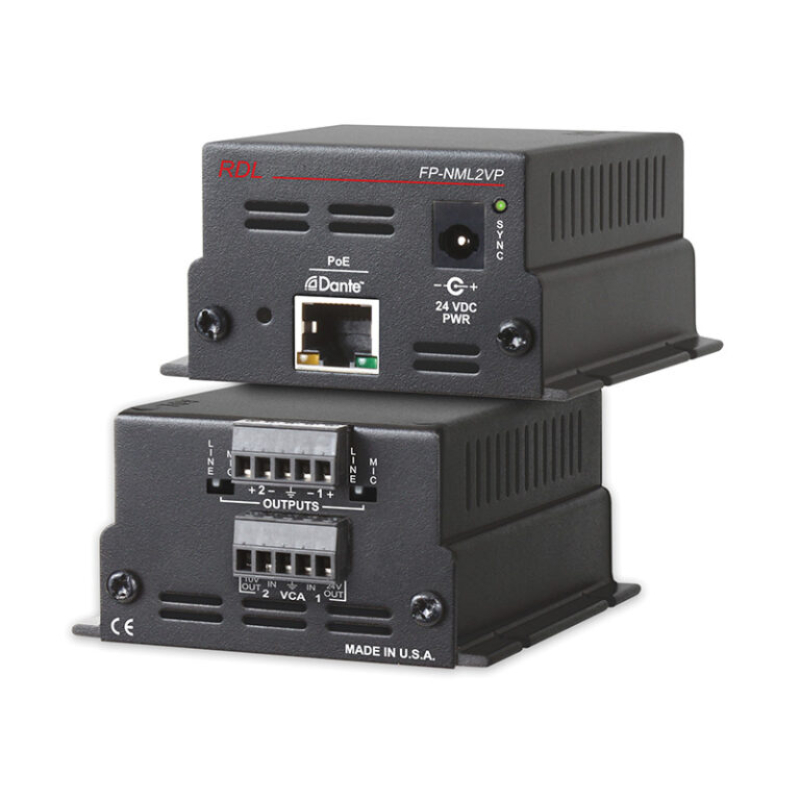

FP-NML2VP
Network to Mic/Line Interface with VCA
Highlights
• Adapts Standard Audio Amplifiers to a Dante Network
• Converts Two Dante Network Audio Signals to Professional Line Level
• Separate VCA Provided for Each Output
• Outputs are Adjustable using RDL or OEM Remote Controls or 0 to 10 Vdc
• Individually Adjustable Outputs Ideal to Feed Two Separate Amplifiers
• Each Output is Switch-Selectable for Mic or Line Level
• Line-Level Outputs Provide +4 dBu with VCA at Maximum
• Output Amplifiers Provide More than 18 dB Headroom
• Exceptional Low-Noise and Low-Distortion Performance
• Crosstalk is Below the Noise Floor
• 24 Vdc Pass-Through Jack for Power Supply Sharing with RDL Amplifiers (FP-NML2V)
• High Resolution 24 Bit Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance
• Outputs Mute when Digital Audio Inputs are Inactive
• Normal or Hot-Standby Operation from PoE (Model FP-NML2VP)
• Equipped for Rack Mounting or Surface Mounting

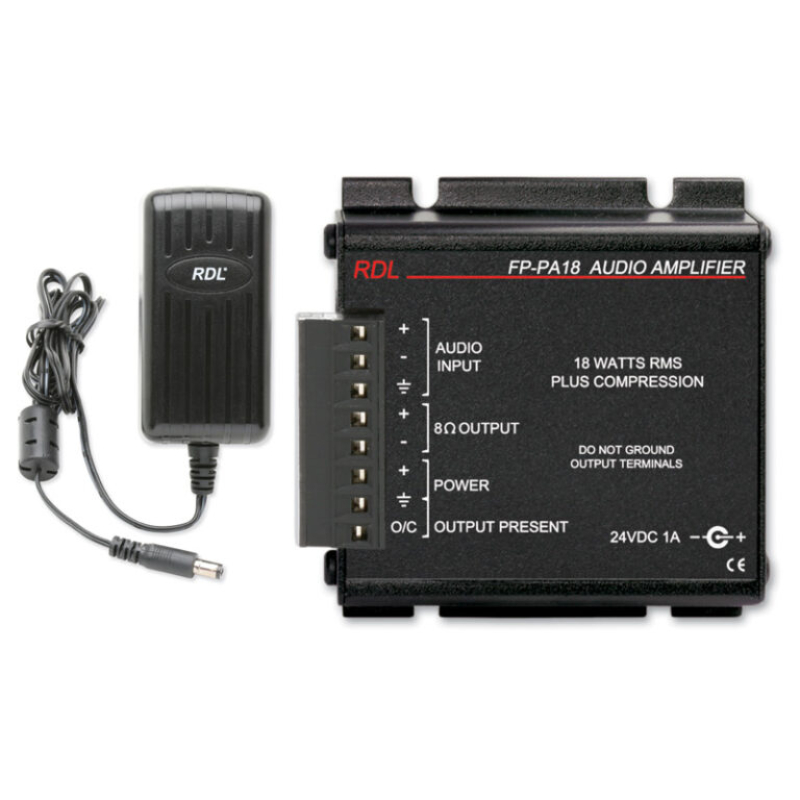

FP-PA18X
18 W Mono Audio Amplifier – 8 Ω, with Power Supply
Highlights
• 18 Watts RMS into 8 Ω
• Automatic Energy-Saving Sleep Mode
• Selectable Sleep Delay: Off, 5, 15, 25 Minutes
• Input / Output Detachable Terminal Block Connections
• Line Level Balanced or Unbalanced Input
• Compressor/Limiter Controls Clipping
• LED to Indicate Audio Compression Threshold
• Compressor Produces Maximized Average Output Power
• Audio Quality Superior to Standard Amplifiers
• Ultra-compact All Metal Construction
• High-Efficiency Class D Operation
• Thermal and Short-Circuit Protection

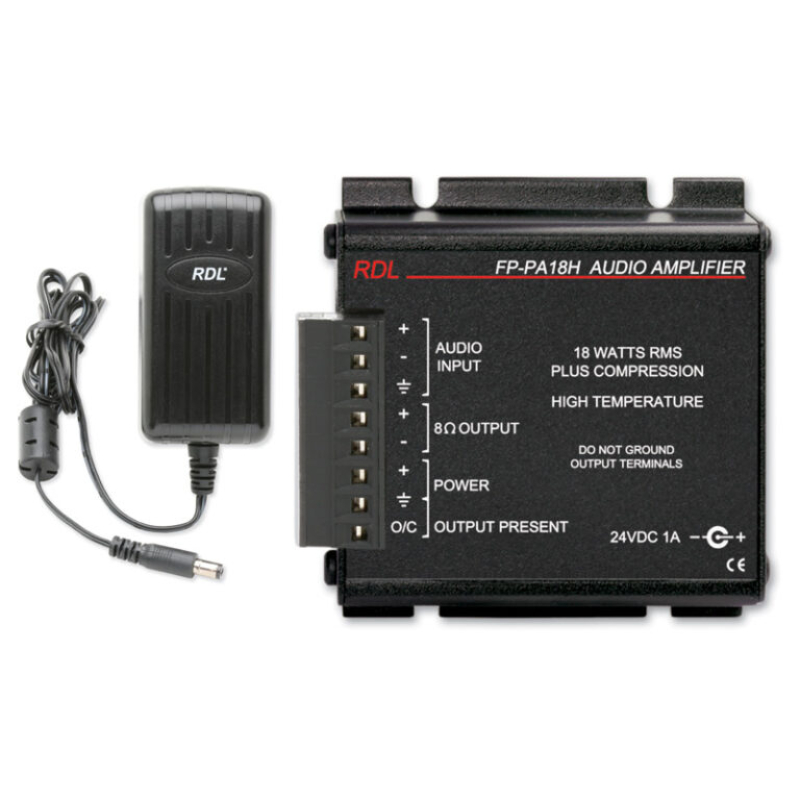

FP-PA18HX
18 W Mono Hi-Temp Audio Amplifier – 8 Ω, with Power Supply
Highlights
• 18 Watts RMS into 8 Ω
• Operation in Elevated Ambient Temperatures to 70°C
• Input / Output Detachable Terminal Block Connections
• Line Level Balanced or Unbalanced Input
• Compressor/Limiter Controls Clipping
• LED to Indicate Audio Compression Threshold
• Compressor Produces Maximized Average Output Power
• Audio Quality Superior to Standard Amplifiers
• Ultracompact All Metal Construction
• High Efficiency Class D Operation
• Thermal and ShortCircuit Protection

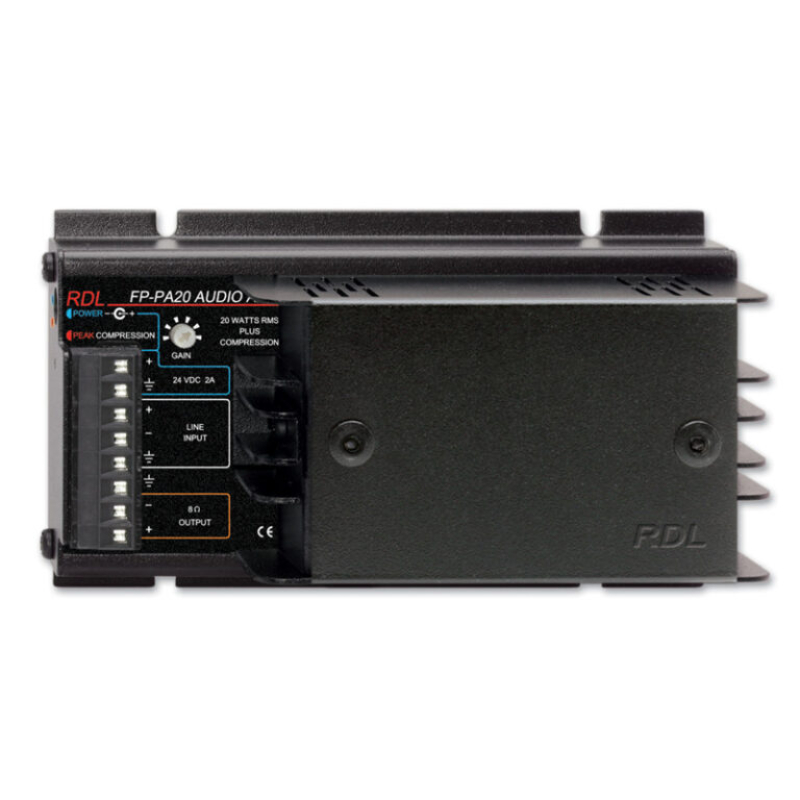

FP-PA20
20 W Mono Audio Amplifier – 8 Ω
Highlights
• 20 Watts RMS Audio Power Amplifier
• Output for 8 Ω Speaker
• Integral Audio Compressor to Control Clipping
• High Overall Operating Audio Level
• Maximized Audio Level for Output Power
• Audio Quality Superior to Standard Amplifiers
FP-PA20A
20 W Mono Audio Amplifier – 70 V or 100 V
Highlights
• 20 Watts RMS Constant Voltage Amplifier
• 70 V and 100 V Outputs
• Integral Audio Compressor to Control Clipping
• High Overall Operating Audio Level
• Maximized Audio Level for Output Power
• Audio Quality Superior to Standard Amplifiers
• Plenum Rated per UL 2043 Standard

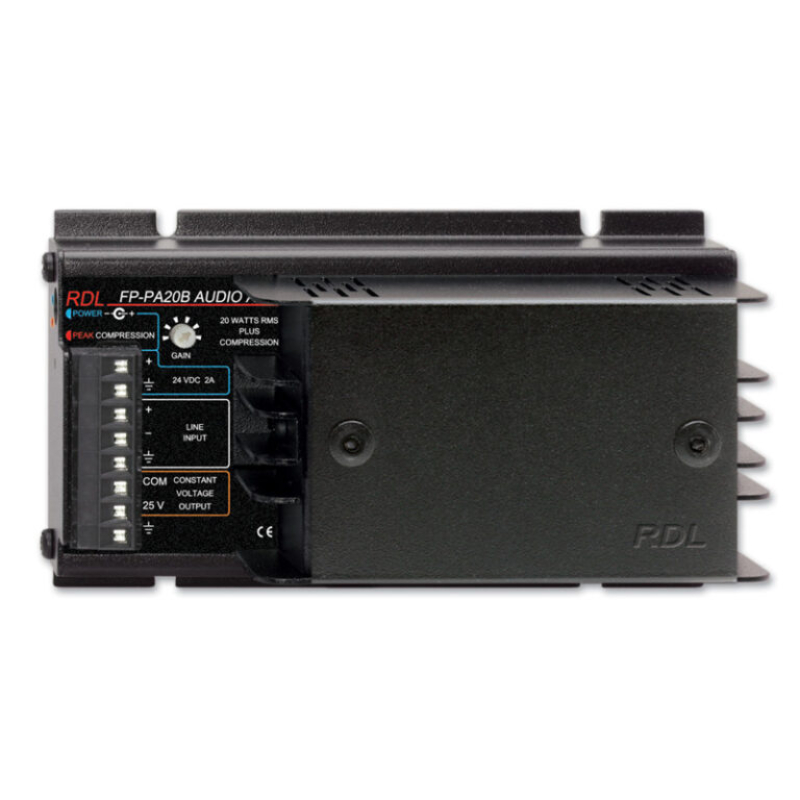

FP-PA20B
20 W Mono Audio Amplifier – 25 V
Highlights
• 20 Watts RMS Constant Voltage Amplifier
• 25 V Output
• Integral Audio Compressor to Control Clipping
• High Overall Operating Audio Level
• Maximized Audio Level for Output Power
• Audio Quality Superior to Standard Amplifiers

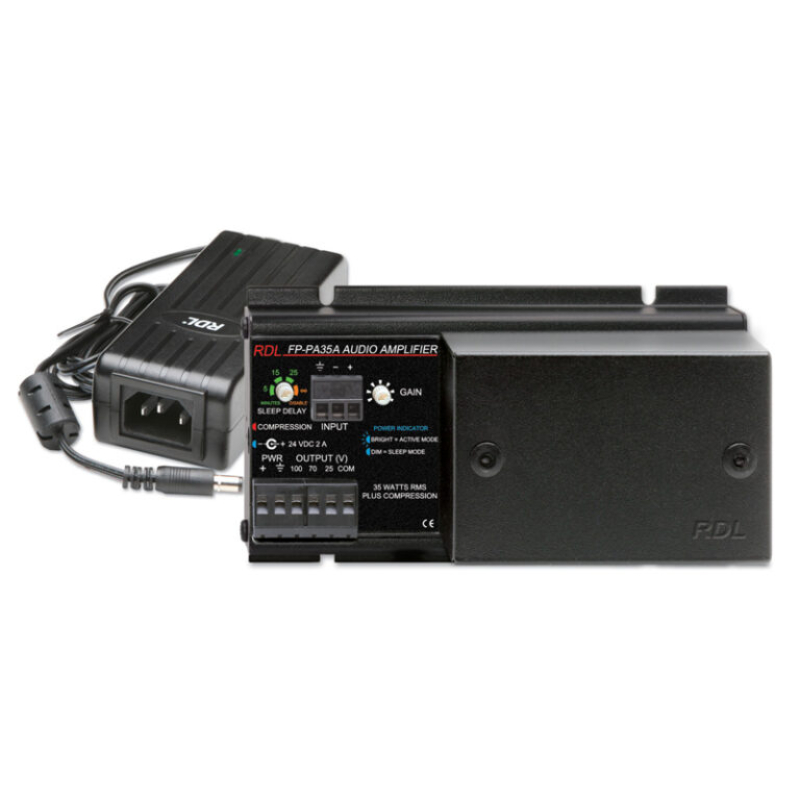

FP-PA35A
35 W Mono Audio Amplifier – 25 V, 70 V or 100 V, with Power Supply
Highlights
• 35 Watts RMS Constant Voltage Amplifier
• 25 V, 70 V or 100 V Output
• Plenum Rated per UL 2043 Standard
• Automatic Energy-Saving Sleep Mode
• Selectable Sleep Delay: Off, 5, 15, 25 Minutes
• Input / Output Terminal Block Connections
• Line Level Balanced or Unbalanced Input
• Compressor/Limiter Controls Clipping
• LED to Indicate Audio Compression Threshold
• Compressor Produces Maximized Average Output Power
• Audio Quality Superior to Standard Amplifiers
• Ultra-compact All Metal Construction
• High-Efficiency Class D Operation
• Thermal and Short-Circuit Protection
FP-PEQ3
3 Band Parametric Equalizer – Terminal blocks & RCA jacks
Highlights
• Highly Versatile Parametric Equalizer
• Independent Adjustment Controls
• Adjustable Bandwidth .04 to 1.5 Octave
• Adjustable Frequency 15 Hz to 20 kHz
• Cut or Boost Adjustable +/- 15 dB
• Overlapping Frequency Bands
• Output Level Metering
• Studio Quality, Low-Noise Performance
• Convenience of RDL® FLAT-PAKs™
FP-PSB1A
Desktop Power Supply Mounting Bracket
Highlights
• Mounts One Desktop Power Supply
• Holds One FP-PA20 Style Amplifier or a Variety of Other RDL Modules
• May be Used to Mount Power Supply to a Flat Surface
• Compatible with RDL FP-RRA and FP-RRAH FLAT-PAK™ Rack Adapters
FP-RRA
Rack Adapter FLAT-PAK Series – 19″ Fixed
Highlights
• Mounts One or More FLAT-PAK™ Modules
• Occupies Two RUs in 19″ Rack
• Exclusive Track System Provides Flexible Module Placement
FP-RRAH
Rack Adapter FLAT-PAK Series – 19″ Hinged
Highlights
• Mounts One or More FLAT-PAK™ Modules
• Occupies Two RUs in 19″ Rack
• Exclusive Track System Provides Flexible Module Placement
• Hinged Panel Provides Easy Module Access
FP-RRB1
Rear rack rail mounting kit for any FLAT-PAK module
Highlights
FP-SPR1
S/PDIF Repeater / Amplifier
Highlights
• Correct S/PDIF Signal Level from Long Line
• Conversion Between S/PDIF Connector Types
• BNC, Phono and Optical Inputs
• BNC, Phono and Optical Outputs
• Reshape S/PDIF Waveforms
• Virtually Jitter-Free Performance
• Convenience of RDL® FLAT-PAKs™
FP-TP4PW
Power Inserter – Twisted Pair – Four sets of outputs – Signal loop-through
Highlights
• Power Four Sets of Remote Senders and Receivers from a Convenient Location
• 24 Vdc Input on dc Power Jack or Full-Size Terminal Block
• Power Bus Provides Expansion to Adjacent Power Inserters
• Blue Power LED Shows Module is Receiving Power
• Green LEDs Indicate Correct dc Output Voltage on RJ45s
• Two Associated RJ45s Provided for Each Power Output
• One Associated RJ45 may Power Receivers
• The Other Associated RJ45 may Power Senders
FP-TPS4A
Format-A Two-Pair Audio Sender
Highlights
• Format-A Sender from TV Fixed Audio Output
• Sends Left and Right Audio Channels
• Unbalanced Stereo Input from Fixed Level Audio Source
• Balanced Audio Input from Mono Amplifier
• High Quality Audio Distributed to Each RJ45 Output
• Two Format-A Outputs on RJ45
• Distributes Power to Connected Receivers
• Automatically Resetting Fuse for Output Voltage
• Ultra-Compact All Metal Construction
FP-TPX3A
Format-A Twisted Pair Remote Controlled Mixer
Highlights
• 3-Channel Remote-Controlled Audio Mixer
• VCA Level Control for Each Input Pair
• Format-A Twisted Pair Inputs
• One Detachable Balanced and Two RCA Unbalanced Mono Outputs
• Twisted Pair Interconnection to Remote Control
• Directly Controlled by RDL Remote Controls with 2 or 3 channels
• Local Input Available if Only Two Twisted Pair Inputs Used
• Paging Source May Connect to Local Input
• Front-Panel Gain Trim Matches Active or Passive Format-A Senders
• Dual-LED VU Meter Displays Mixer Output Level
• Audio Presence Detector Controls Open-Collector Outputs
• Detector Outputs Intended to Enable Power Amplifiers or System Power
• Energy Savings Possible Using Detector Outputs
• Selectable 10 or 20 Minute Detector Release Delay
FP-UBC2
Unbalanced to Balanced Converter – 2 Channel
Highlights
• Stereo Unbalanced to Balanced Audio Conversion
• Connectorized Audio Converter
• Output Level Trim
• Low-Noise and Low-Distortion Conversion
• Cabinet, Shelf or Rack Mounting
• Convenience of RDL FLAT-PAKs
FP-UBC6
Unbalanced to Balanced Converter – 6 Channel
Highlights
• Unbalanced to Balanced Audio Conversion
• 6 Channel Conversion with Gain Trim
• Connectorized Audio Converter
• Low-Noise and Low-Distortion Conversion
• Cabinet, Shelf or Rack Mounting
• Convenience of RDL® FLAT-PAKs™
FP-VDA4
NTSC/PAL Video Distribution Amplifier – 1×4 – BNC
Highlights
• Video Distribution with Four Outputs
• Adjustable Gain
• Input LOOP OUT Jack
• Wide Bandwidth – Flat to 10 MHz
• NTSC or PAL Operation
• Ultra-Compact All Metal Construction
• Convenience of RDL® FLAT-PAKs™
